MSQ Series Rotary Cylinder is listed in the pneumatic cylinders section of the Betre catalogue under the Rotary Actuator series. It is manufactured by YUEQING BETRE AUTOMATION CO., LTD. in Yueqing, Zhejiang, and supplied to automation machine builders and distributors in China and export markets.

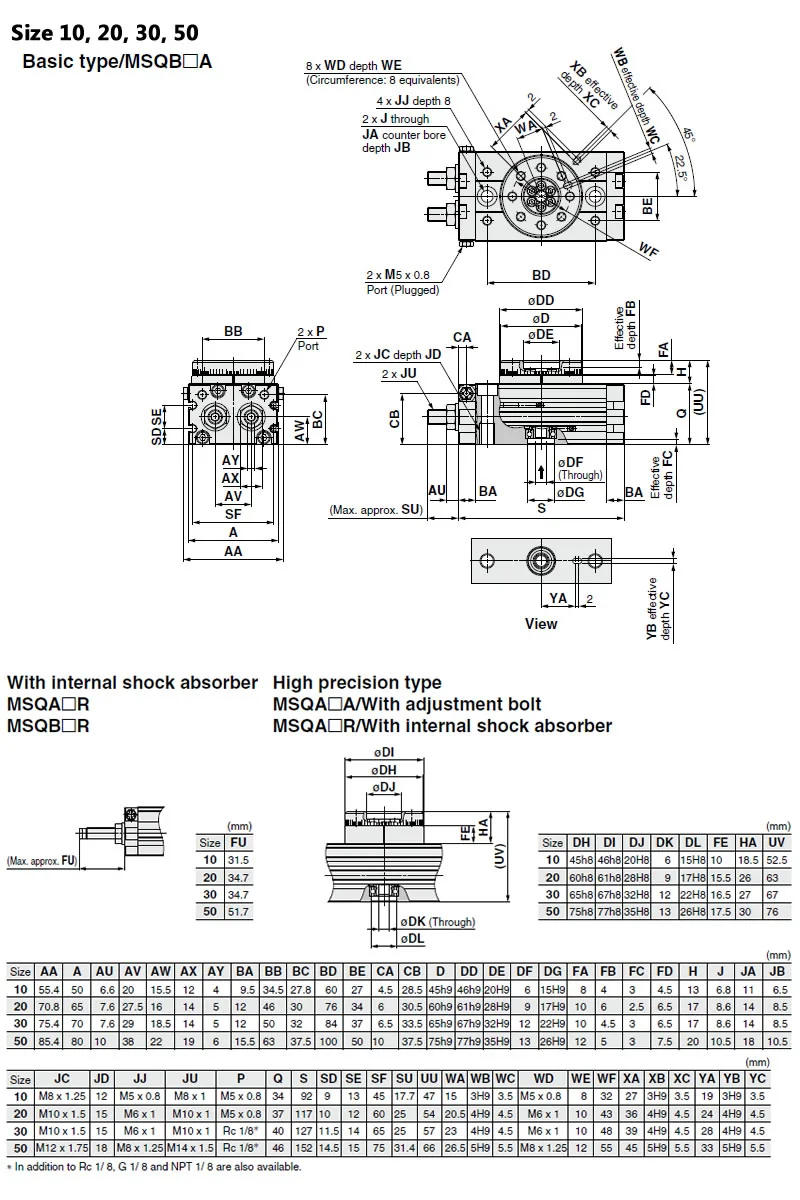

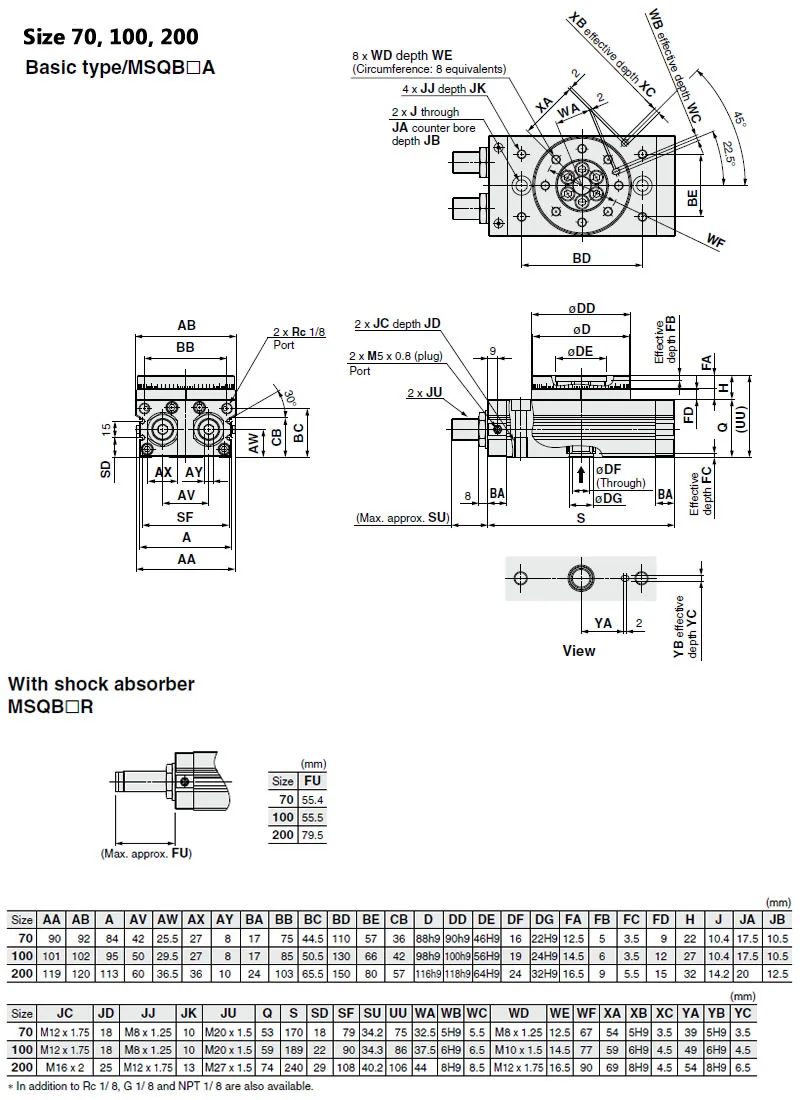

The tables and drawings below are reproduced from the Betre product catalogue for this model.
| Size | 10 | 20 | 30 | 50 | 70 | 100 | 200 | ||||
| Fluid | Air (non-lube) | ||||||||||
| Maximum operating pressure | With adjustment bolt | 1 MPa | |||||||||
| With internal shock absorber | 0.6 Mpa Note 1) | ||||||||||
| Minimum operating pressure | Basic type | 0.1 MPa | |||||||||
| High precision type | 0.2 MPa | 0.1 MPa | - | ||||||||
| Ambient and fluid temperature | 0 to 60°C (with no freezing) | ||||||||||
| Cushion | With adjustment bolt | Rubber bumper | |||||||||
| With internal shock absorber | Shock absorber | ||||||||||
| Shock absorber model | RBA0805-X692 | RBA1006-X692 | RBA1411-X692 | RBA2015-X821 |
RBA2725 -X821 |
||||||
| Angle adjustment range | 0 to 190° Note2) | ||||||||||
| Maximum rotation | 190° | ||||||||||
| Cylinder bore size | ø15 | ø18 | ø21 | ø25 | ø28 | ø32 | ø40 | ||||

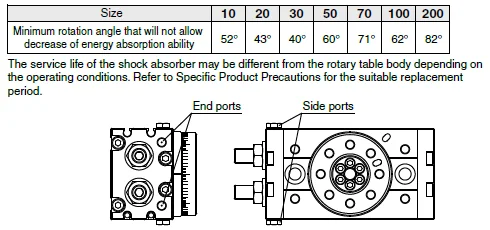

| Port size | End ports | M5 x 0.8 | Rc 1/8, G 1/8, NPT 1/8 | ||||||||
| Side ports | M5 x 0.8 | ||||||||||
