MD409 Pro 4MP 300X HDMI 10.1” WiFi HDMI Digital Microscope

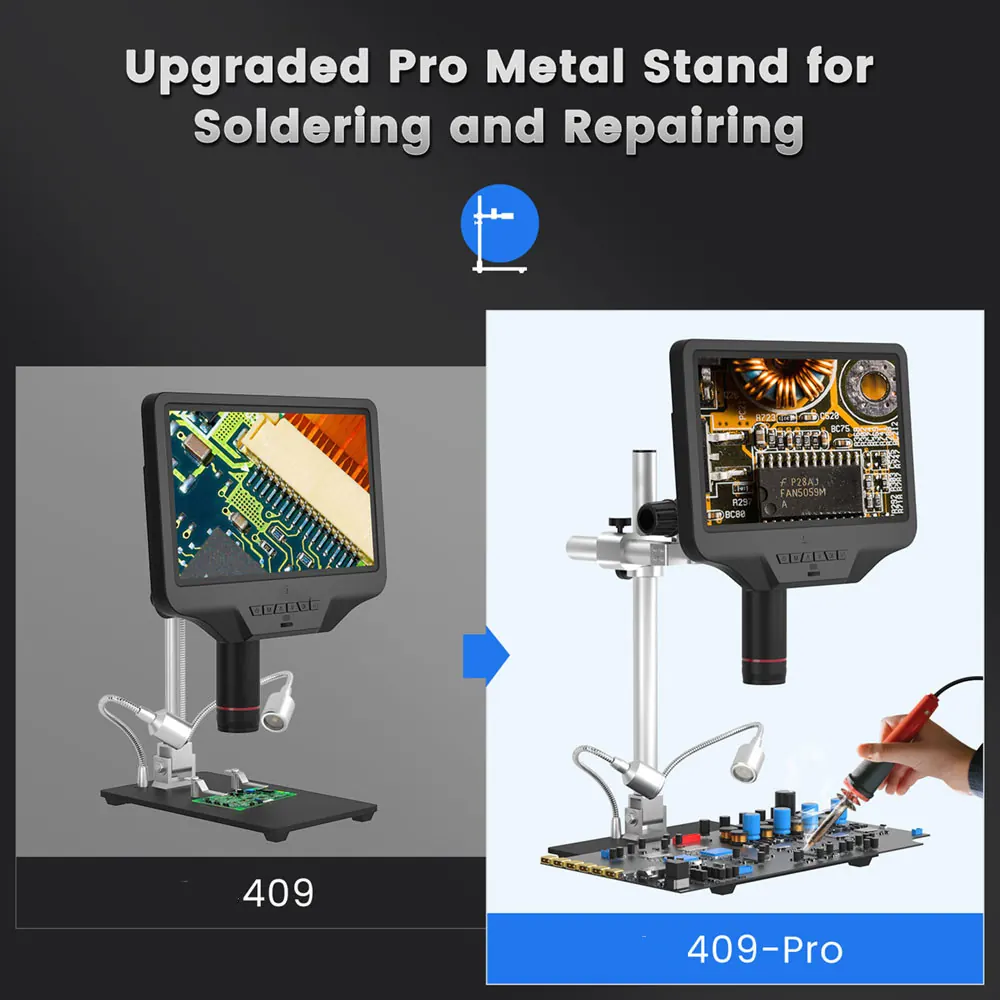

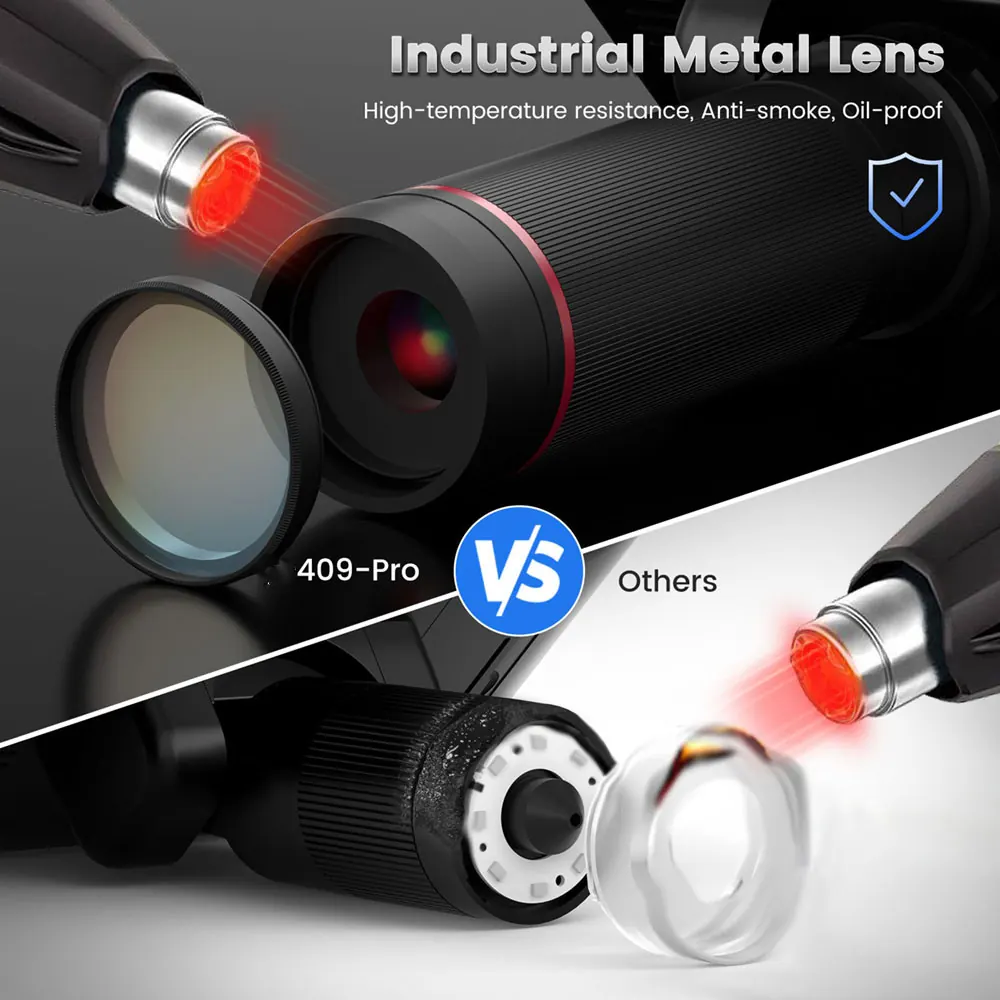

4MP 300X HDMI WIFI Microscope Digital Microscope 10.1″ LCD for PCB Coin Antique Features: – With 10.1 inch LCD screen for better display effect – 180°adjustable display is convenient for users to observe – 360° rotatable metal bracket with adjustable height brings 3D visual effects and larger operating space – Metal base can be equipped with clamps to fix the observation body – Multi-function remote control: grid lines/picture flipping, etc., supporting one-click setting – The bracket is equipped with two universal LED lights, the brightness is adjustable, and the imaging is clearer – UV lens filters stray light and protects the lens – Can take photos & record videos – Support HDMI and USB output – Support measurement software Applications: – Repair electronic products such as mobile phones and computers – Identification of antiques – Presswork – Textiles – Miniature carving/jewelry – Factory production line – Watch repair – Botany & Entomology – Coin collection Specifications: – Material: Metal+ABS – Imaging sensor: 4MP high definition sensor – Video output: UHD 2880*2160 24FPS; FHD 1920*1080 60FPS/30FPS, HD 1280*720 120FPS – Video format: MP4 – Magnification ratio: up to 300X (output to 27″ HDMI monitor) – Photo resolution: Max.
Application notes from the listing
24M (5600×4200) – Photo format: JPG – Minimum focus distance: minimum 5cm/2″; maximum 31cm/12.2″ – Frame rate: Max. 120f/s – Storage: Micro SD card, up to 64G (not included) – PC support: Support measurement software for Windows 7/8/10 – Mobile phone and tablet terminal: support Wifi connection and measurement – Power supply: 5V DC – Light source: stand base with 2 LED lights – Stand size: 18 x 20 x 32cm/7.1 x 7.9 x 12.6″ – Screen resolution: 800×1280 – Screen size: 10.1 inch – Certificates: CE/FCC/ROHS/HDMI – Supported languages: 10, including Simplified Chinese, Traditional Chinese, English, Japanese, French, German, Italian, Portuguese, Spanish and Russian Package Included: – 1 x Microscope – 1 x Metal Stand – 1 x UV Filter (has been assembled in front of the lens) – 1 x Power Cable – 1 x HDMI Cable – 1 x USB Cable – 1 x Power Adapter – 2 x Metal Clips – 1 x Remote Control – 1 x User Manual Note: – Batteries for the remote control are not included.
2pcs AAA batteries are recommended.
What should I send with a quote request?
The model name (MD409 Pro 4MP 300X HDMI 10.1” WiFi HDMI Digital Microscope), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
