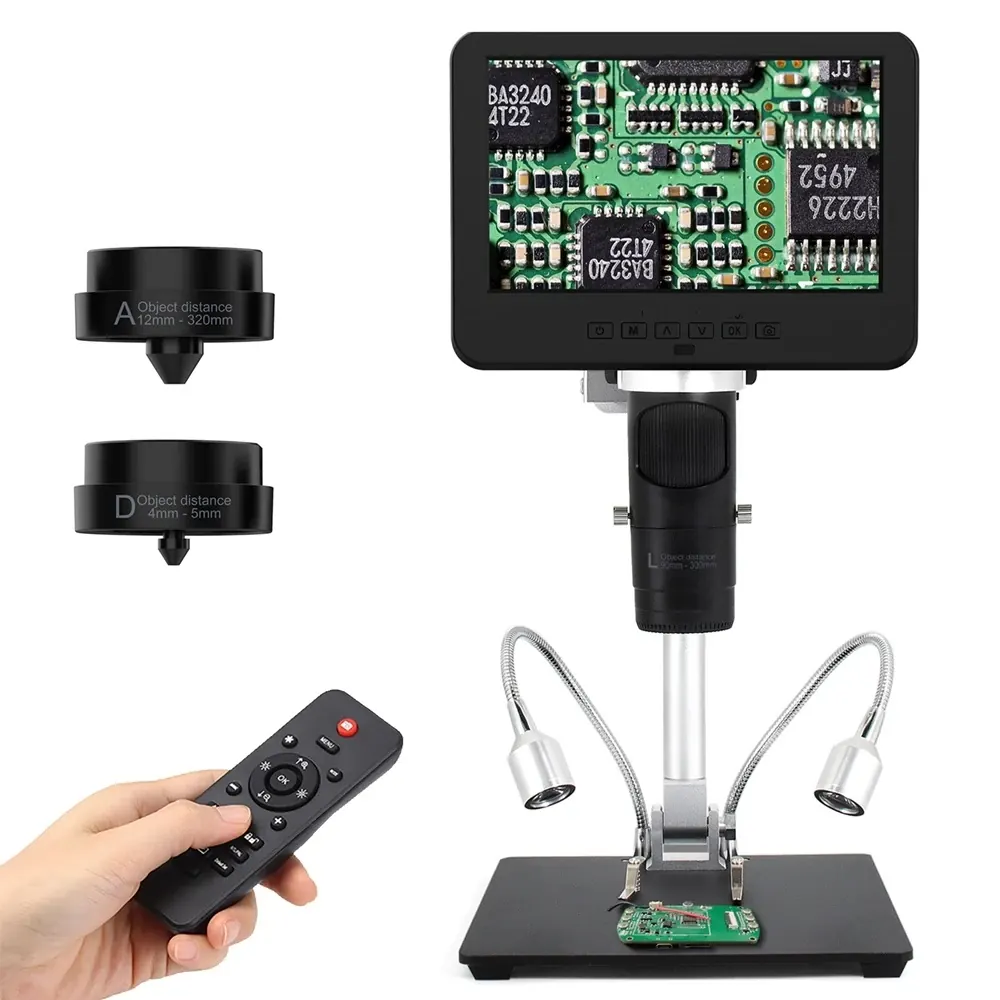

AD409Max-ES 10.1” HDMI Digital Microscope for PCB SMD Soldering
M D409 Max with Endoscope 10.1” WIFI HDMI/USB 300X Digital Microscope for Soldering PCB/SMD Electronics Phone Repair Features M D409-Max with Endoscope All-around View 360°:Featuring an endoscope for clear observation of components’ sides and inside pipes, ensures 360°viewing without blind spots.
Application notes from the listing

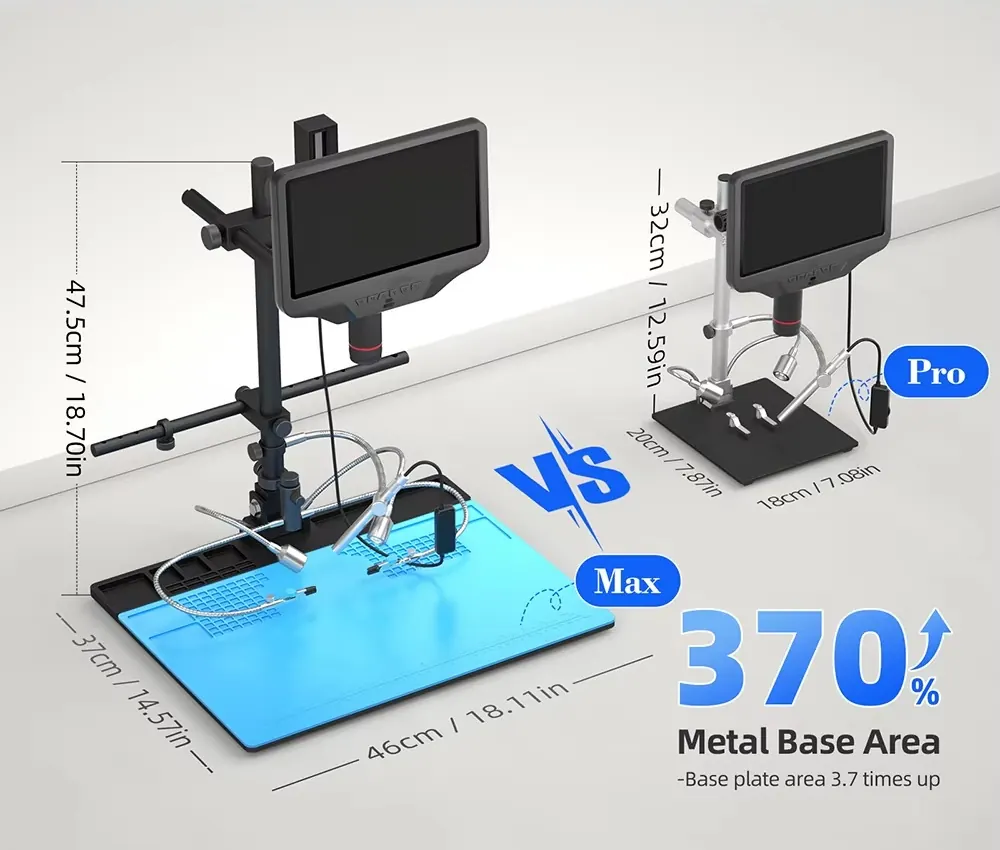

2024 Newly Upgraded Max Metal Stand:Equipped with the latest oversized Max Metal Stand(18.1*14.6*18.7 inch) and tool set developed in 2024, the Max station increases the soldering station area by 370%, it meets professional soldering needs and large workspace requirements.
Easy-to-use Tool Holder and Soldering Helping Hands:The tool holder ensures easy access to tools by keeping them within reach, while the soldering helping hands with rotatable clamps make soldering and repair work easier.
10.1 inch display: 10.1 inch display brings you perfect visual experience. For most people, no more external display is needed, the microscope itself can meet all their visual demands. Description Material: Metal+ABS Color: Black Screen size:10.1 inch Imaging sensor: 4 mega pixels high definition sensor Video output: UH-D 2880*2160 24FPS; FH-D 1920*1080 60FPS/30FPS, H-D 1280*720 120FPS Video format:MP4 Magnification ratio: up to 300X (high-definition multimedia interface monitor 27 inch) Photo resolution: Max.
4032*3024 (12M 4032*3024) Photo format: JPG Minimum focus distance: 50mm Frame rate: Max.120f/s (under 600 lux brightness&H-DP120) Storage: Micro-SD card, up to 64G (not included) PC support: Yes Power source: 5V DC Stand size: 18.1*14.6*18.7 inch Remote control battery: 2 * AAA battery (not included) Package size: 30*15*26cm Package weight: 7.5kg M D409 Max Package list: 1 * Microscope 1 * Endoscope 1 * Beam 1* Metal column 1* Base(with light) 1* Repair mat 1* Tool holder 1* Soldering helping hands 1* Adjustable arm 1 * Power adapter 1 * Switch cable 1 * USB cable 1 * HDMI cable 1 * Remote control 1 * UV Filter(has been assembled in front of the lens) 5* Endoscope accessory 1 * User Manual Detail 01 Detail 02 Detail 09 Detail 10 Detail 11 Detail 12 Detail 13 Detail 14 Detail 15 Detail 16
What should I send with a quote request?
The model name (AD409Max-ES 10.1” HDMI Digital Microscope for PCB SMD Soldering), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
