XUB400 Laboratory Biological Microscope for Hosptial Research

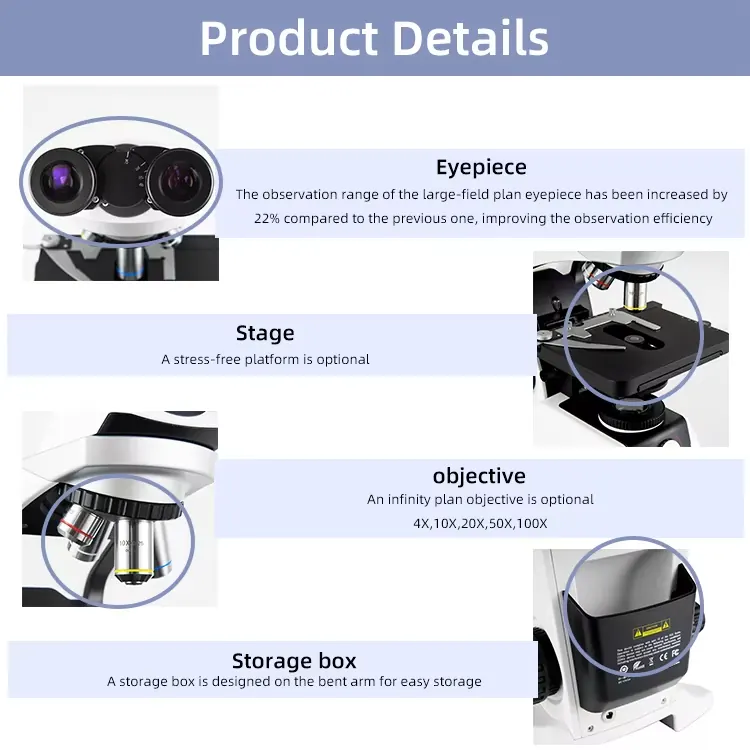

Model XUB401 XUB402 Viewing head Binocular observation head, 30° tilt, adjustable interpupillary distance 48mm-75mm ● trinocular observation head, 30° tilt, adjustable interpupillary distance 48mm-75mm ● Eyepiece PL10X22mm ● ● Photographic eyepiece 0.4X photographic eyepiece (for trinocular observation head) ● Nosepiece Four-hole converter ● ● Objective Infinity achromatic objective lens 4X, 10X, 40X, 100X ● ● Condenser Abbe N.A 1.25 condenser with variable aperture ● ● Stage Double-layer mobile mechanical metal platform: 175MMX145MM Moving range: 75MMX50MM ● ● Focusing system Coaxial coaxial focusing system, fine adjustment value 0.002mm ● ● Illumination LED 3W, brightness adjustable ● ● Power adapter Input AC100-240V-50/60Hz Output DC12V1A ● ● Optional 1.
Application notes from the listing
Eyepiece: 20X 2. Objective: Infinity plan achromatic objective, infinity semi-plan achromatic objective 20X objective optional 3. Photographic eyepiece: 0.3X, 0.75X 4. Converter: Five holes Upgradable magnification display 5.
Condenser: Dark field 6. Light source: White + Yellow (wavelength 450-455μm) 7. Platform: Stress-free platform ○ ○
What should I send with a quote request?
The model name (XUB400 Laboratory Biological Microscope for Hosptial Research), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
