XUB300 Laboratory Biological Microscope for Hosptial Research

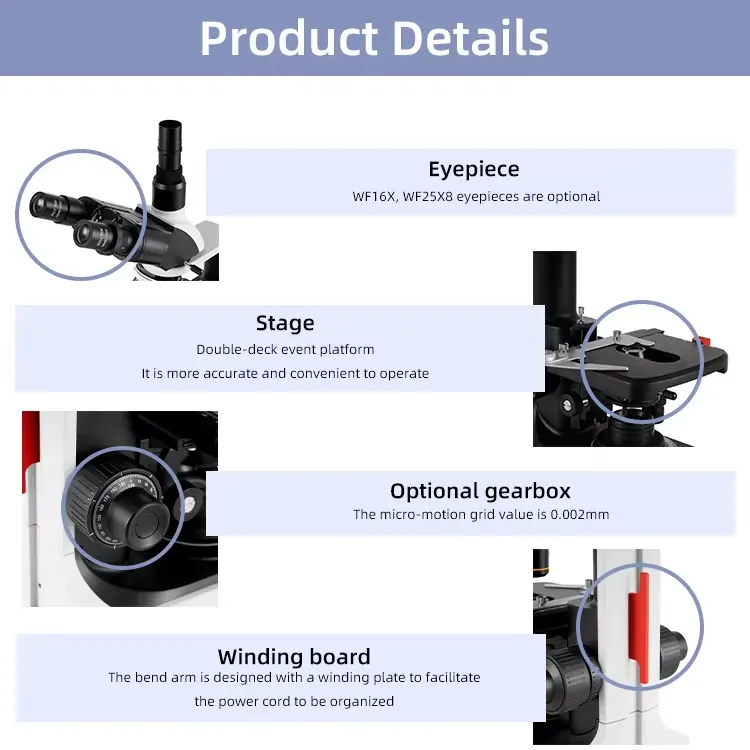

Model XUB301 XUB302 XUB303 Observation head Monocular observation head, 30° tilt, adjustable interpupillary distance 48mm-75mm ● binocular observation head, 30° tilt, adjustable interpupillary distance 48mm-75mm ● trinocular observation head, 30° tilt, adjustable interpupillary distance 48mm-75mm ● Eyepiece WF10X18mm ● ● ● Objective 195mm achromatic objective 4X, 10X, 40X, 100X ● ● ● Photographic eyepiece 1X photographic eyepiece (for trinocular observation head) ● Converter Four-hole converter ● ● ● Condensing lens Abbe N.A 1.25 condenser with variable aperture ● ● ● Stage Double-layer mobile mechanical metal platform: 115mmX125mm Moving range: 80mmX30mm ● ● ● Focusing system Coaxial coarse and fine focusing system, fine adjustment value 0.02mm ● ● ● light source LED 1W, adjustable brightness, rechargeable ● ● ● Power adapter Input AC100-240V-50/60Hz Output DC5V-12V/1A, Type C interface ● ● ● Optional 1.
Application notes from the listing
Color filter: blue, yellow, white 2. Eyepiece: WF16X, WF20X, WF25X 3. Objective: Plan-field finite achromatic objective 4.Focusing system: gearbox (micro-grid value 0.002mm) 5. Light source: white + yellow (wavelength 450-455μm) ○ ○ ○
What should I send with a quote request?
The model name (XUB300 Laboratory Biological Microscope for Hosptial Research), binocular or trinocular preference, whether a camera is required, destination country, and any thread already on the stand.
Are extra specifications available?
Only values printed on the original AMADA listing are shown here. Missing numbers are TBC.
How do I order accessories for this model?
Open the matching accessory family and quote both product names in one email.
