Anchor Making Machine

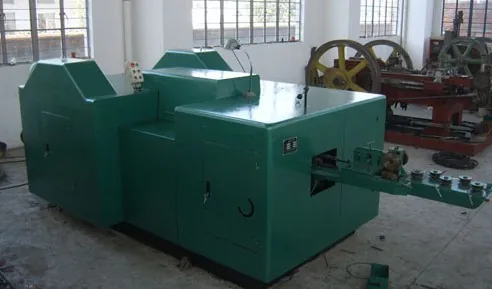

Wedge Bolt Expansion Anchor Bolt Making Machine

Anchor making and assembly equipment produces and makes up wedge, drop in and window anchor sets used in construction fixing.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Full manufacturer parameter table on this page
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Main Specifications

Wedge anchor Series of Automatic Cold Headers Key Specifications
	制件直径	制件长度	生产率	电机功率	重量	外型尺寸
型号规格	(mm)	(mm)	(只/分)	(kw)	(kg)	(长×宽×高)
Type standard	Diameter of Bar Stock	Maximum Length of finished product	Rated Output (pcs/min)	Motor Power	Weight	Overall Dimension (mm)(Length × Width × Height)
AW2-3-6	4-6	60	60	4	2500	1225×880×1050
AW2-3-8	6-8	120	50	5.5	3000	2350×1400×1350
AW2-3-8L	6-8	150	50	5.5	3800	2700×1500×1450
AW2-3-10	8-10	120	50	7.5	5800	3300×1600×1450
AW2-3-10L	8-10	150	50	7.5	6500	3520×1900×1700
AW12-10LL	8-10	200	40	11	7000	4000×2000×1800
AW2-3-12	10-12	150	50	11	9500	4500×2100×1880
AW2-3-12L	10-12	200	40	15	11500	5500×2350×1750
AW2-3-16L	12-16	200	40	18.5	14500	5900×2350×1750
AW2-3-20L	16-20	250	35	22	19800	6300×2400×1800
AW2-3-20LL	16-20	300	30	30	23500	6400×2500×2500

Other Models in Anchor Making Machine

Same family, different size range and station count.

Windows Metal Frame Anchor Automatic Assemble Machine

Anchor Making Machine

Stud Bolts Threaded Rod Double Ends Nuts Assembly Machine

Fastener Assembly Machine

Four Stations Bolt Forging Machine

Multi Station Bolt Forming Machine

Three Stations Bolt Forging Machine

Multi Station Bolt Forming Machine

Elevator Sleeve Anchor Bolt Nut Sleeve Washer Automatic Assembly Machine

Fastener Assembly Machine

Bolt Screw Washers Nut Fasten Assembling Machine

Fastener Assembly Machine

Sleeve Anchor Fasteners Automatic Assembly Machine

Fastener Assembly Machine

Wedge Anchor Bolt Clip Washer Nut Assembly Machine

Fastener Assembly Machine

All Anchor Making Machine All Fastener Making Machinery How It Is Built

Questions and Answers

Wedge Bolt Expansion Anchor Bolt Making Machine FAQ

What is the Wedge Bolt Expansion Anchor Bolt Making Machine used for?

It belongs to the anchor making machine family. Anchor making and assembly equipment produces and makes up wedge, drop in and window anchor sets used in construction fixing. The structural description and the manufacturer parameter table on this page describe what this particular model covers.

Can I get the technical specification for my size range?

The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.

Is this machine built by Anchors Machinery?

All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.

Can it be supplied together with the upstream and downstream machines?

Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.

What support do I get after delivery?

A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.

How do I request a price for this machine?

Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
