Single Coil Spring Lock Washer Making Complete Equipment/Machines manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Washer Making Machine

Single Coil Spring Lock Washer Making Complete Equipment/Machines

Washer making equipment covers spring lock washer coiling, cutting and sorting as well as plain washer stamping presses and progressive tooling.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Solution and production process:

1.Machine to make belt wire from round wire
2.Rolling-up machine(make coil from the processed wire )
3.Wire collection machine(collect wire)
4.Cutting machine(coil is to be cut )

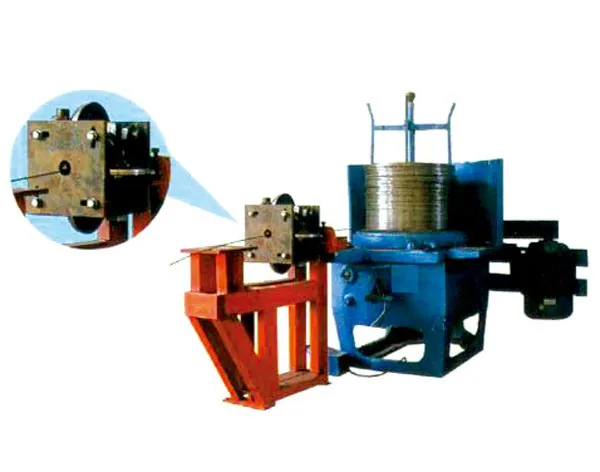

Machine to make belt wire from round wire

Spring Washr Rolling up Machine

Coil Collection Machine

Spring Washer Coil Cutting Machine

Main Technical Parameters

Item Specification Speed rpm Dimension(L*W*H) mm Weight/kg
Belt Wire Drawing Machine Reel dia.:550
Reel dia.:350
Coil machine 3-5mm(inner dia of final product) 1080 1380*600*950 400
6mm(inner dia of final product) 1080 1600*650*950 450
8-10mm(inner dia of final product) 720 1800*750*1350 750
12-16mm(inner dia of final product) 518 1800*750*1350 1000
18-22mm(inner dia of final product) 392 2000*1450*900 1200
24-30mm(inner dia of final product) 262 2200*1000*1500 1600
Above 33mm(inner dia of final product) 150 2600*1100*1780 2000
Coil collection machine Below 12mm(inner dia of final product)
12-22mm(inner dia of final product)
Cutting machine 3-5mm(inner dia of final product) 530 850*700*1250 300
6-8mm(inner dia of final product) 368 1200*750*1350 450
10-12mm(inner dia of final product) 296 1450*850*1500 600
14-16mm(inner dia of final product) 213 1550*950*1580 1000
18-20mm(inner dia of final product) 150 1650*1000*1600 1300
22-30mm(inner dia of final product) 120 1850*1200*1600 1500
above33mm(inner dia of final product) 70 2000*1500*2800 3000
Mould(round wire to belt wire) material Cr12Movz 150mm
200mm
150mm mould sheet
200mm mould sheet

30B-4S Four Die Four Blow Bolt Former
