Punch Press

High Speed Pnumatic Press Machine

Presses cover hydraulic, pneumatic and CNC stamping machines used for blanking, piercing and forming of sheet metal parts.

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
Technical details supplied on request for your size range
Machine video available on request
Rapid response technical team for operation and troubleshooting

Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

Specifications

Accessories and Configuration

Edit
FITTING	STANDARD	MATCH
Flowing tubing head pressure type over-load protection	*
Manual -like slide adjuster (below 60T and 60T)	*
Electromotive type slide adjuster (above 60T)	*
Mechanical mold high display (below 60T and 60T)	*
Electromotive type mold high display (above 60T)	*
Slide and mold balancing unit	*
Revolving cam-operated switch	*
Crank angle display	*
Counter	*
Air source attachment	*
Two degrees guarantee bond the installment	*
Instruction for use	*
Service aid and toolbox	*
Electromotive type grease lubrication installment		○
Is mad the die pad installment		○
Frequency changer		○
Cuts the counter in advance		○
Prejudges the counter		○
Foot switch		○
Trades the mold installment (to lift mold fast, to clamp mold or moves to mold arm)		○
On the slide hits the material installment		○
Delivers the detector set by mistake		○
Power point.		○
Quakeproof foot		○
Electro-optic protective device		○
Feeding machine (air, machinery and NC each kind)		○
Expects the frame		○
Leveling arm		○
Manipulator		○
Mold illumination device		○

Work Bench Sizes

Edit
MODEL	A	B	C	D	E	F	ØG	H	I	T DIE
AP-25	240	120	90	300	–	150	ø38.1	80	220	I
AP-35	280	140	120	360	–	160	ø38.1	100	250	I
AP-45	300	150	120	400	–	210	ø38.1	120	300	I
AP-60	320	160	150	500	220	220	ø50	160	360	II
AP-80	360	180	150	560	300	220	ø50	180	420	II
AP-110	400	200	160	650	300	220	ø50	220	470	II
AP-160	440	220	220	700	300	175	ø65	220	550	II
AP-200	480	240	280	850	420	200	ø65	300	630	II
AP-260	520	260	290	950	420	200	ø65	300	700	II

Machine Body

Heavy, one-piece welded steel frame is designed to resist

deflection, providing more accurate stampings and longer die life

CNC Control System

• Six programmable limit switches

• Four programmable die protection inputs

• LCD display screen for status and fault messages

• LED display for crank angle and spm

Pneumatic Clutch & Brake from Italy

• Wet clutch and brake provide long life, very low maintenance, and high performance even at high single-stroking rates.

• Use adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

Safety Light Curtains

• Protective fence and the safety interlock to ensure the operation safety. have a movable single-hand pedal switch,easy to operate.

• Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

Control Button Station

• Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

Other Models in Punch Press

Same family, different size range and station count.

Hydraulic Press Machine

Punch Press

Electric Screw Press Machine

Punch Press

Plain Washer High Speed Stamping Press

Punch Press

CNC Auto Strip Feeder

Stamping Auxiliary Equipment

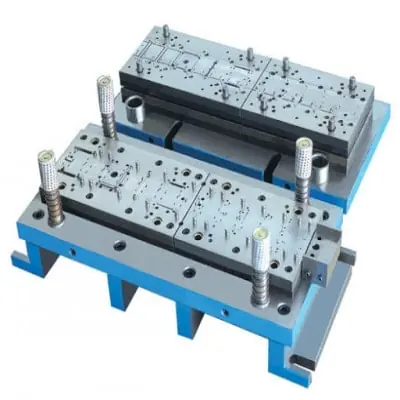

Progressive Stamping Die
