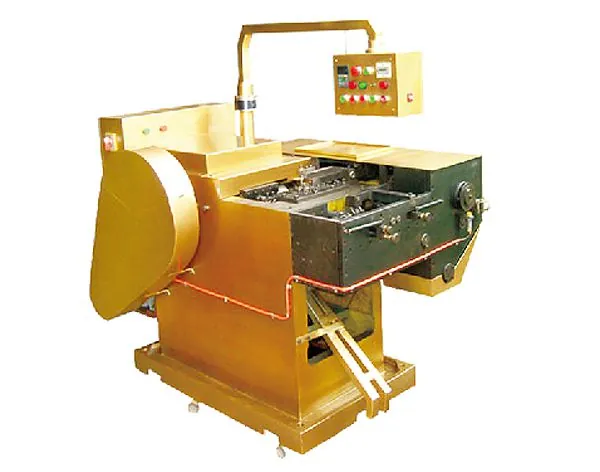

FC36-3 Tri Metal Rivet and Electrical Contact Machine manufactured by Ningbo Anchors Precision Machinery Co., Ltd.

Rivet and Contact Machine

FC36-3 Tri Metal Rivet and Electrical Contact Machine

Rivet and electrical contact machines cold head solid, semi tubular and bi metal rivets, including machines built for electrical contact assemblies.

  • Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
  • Full manufacturer parameter table on this page
  • Machine video available on request
  • Rapid response technical team for operation and troubleshooting
Request a Quote Talk to an Engineer Email Us

Have a drawing? Send it straight to WhatsApp or email — there is no form to fill in.

APPLICATION

• MICRO SWITCH MANUFACTURERS
• AUXILIARY SWITCH MANUFACTURERS
• ROTARY SWITCH MANUFACTURERS
• LIMIT SWITCH MANUFACTURERS
• KNIFE SWITCH MANUFACTURERS
• ROCKER SWITCH MANUFACTURERS
• DOMESTIC SWITCH MANUFACTURERS
• AUTOMOTIVE SWITCH MANUFACTURERS
• RELAYS MANUFACTURERS
• MOTOR STARTER
• SWITCH GEARS MANUFACTURES
• AUTOMOTIVE MANUFACTURES
• AVIATION MANUFACTURES
• APPLIANCES MANUFACTURES

The machine can produce cold headed solid and tri metal contacts from a wide variety of materials.

Typical alloys include:

  • Silver
  • Fine grained silver
  • Silver-Nickel
  • Silver-Iron
  • Silver-Graphite
  • Silver-Cadmium Oxide
  • Silver-Tin Oxide
  • Gold
  • Platinum
  • Palladium

Bi metal and Tri metal electric contact rivets type:Ag/Cu、FAg/Cu、AgNi/Cu、AgSnO2/Cu、AgSnO2In2O3/Cu、AgCu/Cu、AgZnO/Cu、AgCdO/Cu,etc bi metal composite electrical contact rivets；Ag/Cu/Ag、FAg/Cu/FAg、AgNi/Cu/AgNi、AgSnO2/Cu/AgSnO2、AgSnO2In2O3/Cu / AgSnO2In2O3、AgZnO/Cu/ AgZnO、AgCdO/Cu/AgCdO etc. tri metal composite electrical contact rivets

Main Technical Parameters

Item

Data

Motor Power

3Kw

Machine Power

3.6kw

Power Supply

 380v50hz

Net Weight

 1800kg

Transducer

 5.5kw

Dimension(LxWxH)

 1530x1020x1420mm

Head Dia

 2-8

Head Thickness

 Max3

Shank Dia.

  φ1- φ 4

Head Silver Layer

 Min 0.25

Shank Length

 Max9

Shank Silver Layer

 Min0.4-2.5

Output

 4000-8000pcs/h

Straight Line Wire Drawing Machine LZ9/1200+Spool Take-up Machine GS 1250

Related Products

Other Models in Rivet and Contact Machine

Same family, different size range and station count.

Screw Bolt Rivet Cold Heading Machine manufactured by Anchors Machinery

Screw Bolt Rivet Cold Heading Machine

Rivet and Contact Machine

SD-30C Automatic Bi-Metal Electric Rivet and Contact Button Machine manufactured by Anchors Machinery

SD-30C Automatic Bi-Metal Electric Rivet and Contact Button Machine

Rivet and Contact Machine

FC828 Bi-metal Contact and Rivet Machine manufactured by Anchors Machinery

FC828 Bi-metal Contact and Rivet Machine

Rivet and Contact Machine

SD-50 Bi-metal Rivet Contact Heading Machine manufactured by Anchors Machinery

SD-50 Bi-metal Rivet Contact Heading Machine

Rivet and Contact Machine

SD-30 Bi-metal Rivet Contact Heading Machine manufactured by Anchors Machinery

SD-30 Bi-metal Rivet Contact Heading Machine

Rivet and Contact Machine

Tubular Rivet and Semi Tubular Rivet Heading Machine manufactured by Anchors Machinery

Tubular Rivet and Semi Tubular Rivet Heading Machine

Rivet and Contact Machine

All Rivet and Contact Machine All Fastener Making Machinery How It Is Built

Questions and Answers

FC36-3 Tri Metal Rivet and Electrical Contact Machine FAQ

What is the FC36-3 Tri Metal Rivet and Electrical Contact Machine used for?
It belongs to the rivet and contact machine family. Rivet and electrical contact machines cold head solid, semi tubular and bi metal rivets, including machines built for electrical contact assemblies. The structural description and the manufacturer parameter table on this page describe what this particular model covers.
Can I get the technical specification for my size range?
The parameter table on this page is the manufacturer table for the model range. Tell us the exact fastener diameter and length you run and we will confirm which line of the table applies.
Is this machine built by Anchors Machinery?
All equipment is built at the company works in Ningbo, Zhejiang, China, in an 18,000 square metre workshop with its own machining facilities.
Can it be supplied together with the upstream and downstream machines?
Yes. Anchors Machinery is a machine manufacturer as well as a solution provider and project contractor, so complete fastener and stamping production lines can be supplied rather than single machines only.
What support do I get after delivery?
A rapid response technical team instructs machine operation and helps solve problems that come up during production, so that machine efficiency and your output are protected after installation.
How do I request a price for this machine?
Send the part drawing or a photo plus the required size range and output per minute to [email protected] or by WhatsApp on +86 185 5689 5898. Quotations are prepared against the model and tooling configuration that suits your part.
