Pipe Chamfering Machine

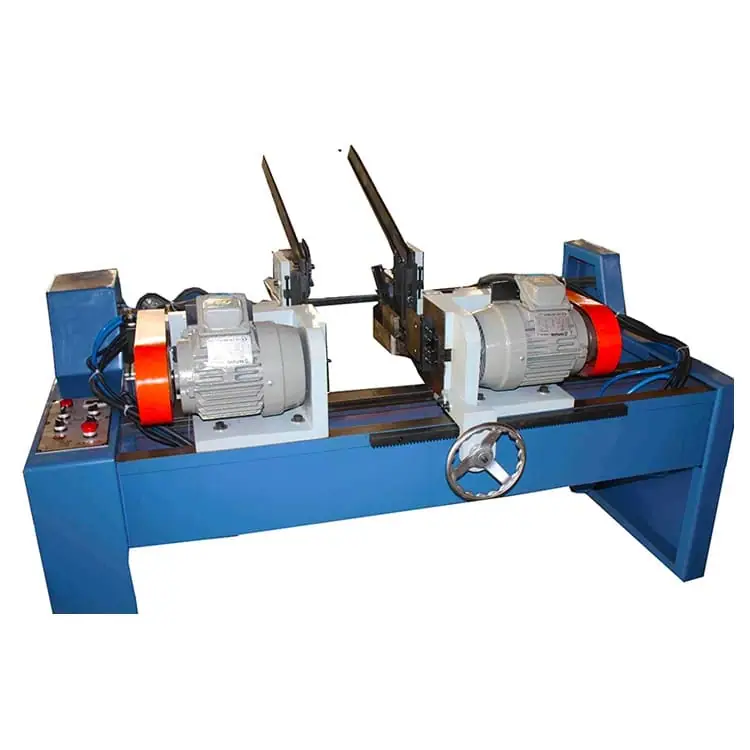

pc50a metal plastic pvc nylon pipe double side automatic chamfer forming machine
pc50a metal plastic pvc nylon pipe double side automatic chamfer forming machine Adapted material: steel/stainless/copper/aluminum pipe/rod/bar etc.
- MODELAEF-FA/52
- Main motor2×1.5kw/4P (for steel, iron tube/pipe)
- Weight1250Kg
- Hydraulic motor2HPx4P
- Air pressure0.6-0.8Mpa, 120ml/min.
- Cutter head rangeΦ12-52mm(standard)
- Workpiece length50-800mm
- Size900*1200*930
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
pc50a metal plastic pvc nylon pipe double side automatic chamfer forming machine
Adapted material: steel/stainless/copper/aluminum pipe/rod/bar etc.
Recommended application industry:automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on
Main characteristics:
1. automatic feeding, saving manpower.
2. specially designed feed body solid and corroborating, in the middle diameter pipe feeding stations Ke Yi select the required type, type pairs for easy time-saving.
3.super Cutter design, Cutter fixed stability, growth Cutter life.
4.two-stage feed speed, to save hours of work, and a slow easy stepless adjustment, processing perfectly.
Technical parameter:
| MODEL | AEF-FA/52 |
| SPEC. | |
| Main motor | 2×1.5kw/4P (for steel, iron tube/pipe) |
| 2×1.5kw/1.0, 2/4P (for aluminum, bronze) | |
| 2×1/0.75kw,4/8p (for SS) | |
| Hydraulic motor | 2HPx4P |
| Air pressure | 0.6-0.8Mpa, 120ml/min. |
| Cutter head range | Φ12-52mm(standard) |
| Workpiece length | 50-800mm |
| Weight | 1250Kg |
| Size | 900*1200*930 |
