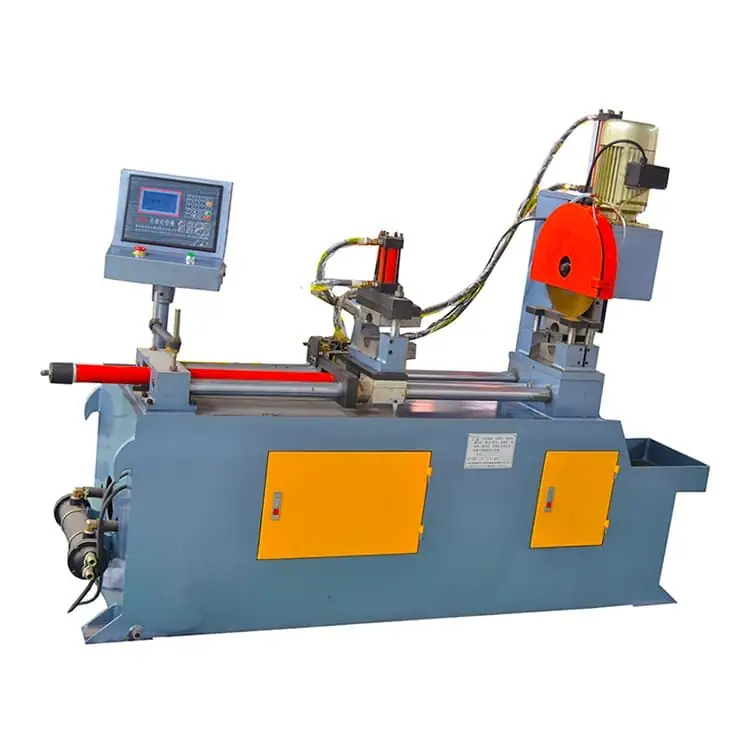

Pipe Cutting Machine
Automatic CNC Servo Feeding Tube Circular Sawing Machine
Automatic CNC Servo Feeding Tube Circular Sawing Machine Adapted material:Cut to length of steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.
- Specification/ModelAMC-350CNC
- Main motor(KW)3.5-4.0KW
- Weight800kg
- sawing scaleApplicable sawblade Ф250-Ф400
- rectangle pipe120mm x 90mm
- square pipe110mm×110mm
- round pipeΦ110mm
- round barΦ75mm
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Automatic CNC Servo Feeding Tube Circular Sawing Machine
Adapted material:Cut to length of steel pipe, stainless steel tube, copper pipe, aluminum pipe,etc.
Recommended application industry:
automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on
Main chararteristics
(1) Controlled by hydraulic system
(2) Automatic cooling system
(3) Automatic clamping the pipe
(4) Automatic cutting the pipe
(5) No row edge
(6) No noise
(7) High efficiency and accuracy
(8) Suit to heavy duty cutting
(9) Durable saw blades
(10) Automatic feeding of pipe
(11)It can set the feeding length,you only need to change the parameter in machine’s computer when you want to change the cutting length.
(12) Long life of saw blades. The saw bladws is special designed.
(13) It can cut several pieces of pipes at the same time.
Technical parameter
| Specification/Model | AMC-350CNC | ||
| sawing scale | Applicable sawblade Ф250-Ф400 | ||
| rectangle pipe | 120mm x 90mm | ||
| square pipe | 110mm×110mm | ||
| round pipe | Φ110mm | ||
| round bar | Φ75mm | ||
| square bar | 65mm×65mm | ||
| Size | 1600×1850mm×1600mm | ||
| Weight | 800kg | ||
| Main motor(KW) | 3.5-4.0KW | ||
| Main shaft speed(RPM) | 88/44 | ||
| Feeding length Standard | 5-700mm*time after time | ||
| Oil motor system | 3.5KW motor,18L pump | ||
| Cooling system | 0.09KW motor | ||
