Pipe Chamfering Machine

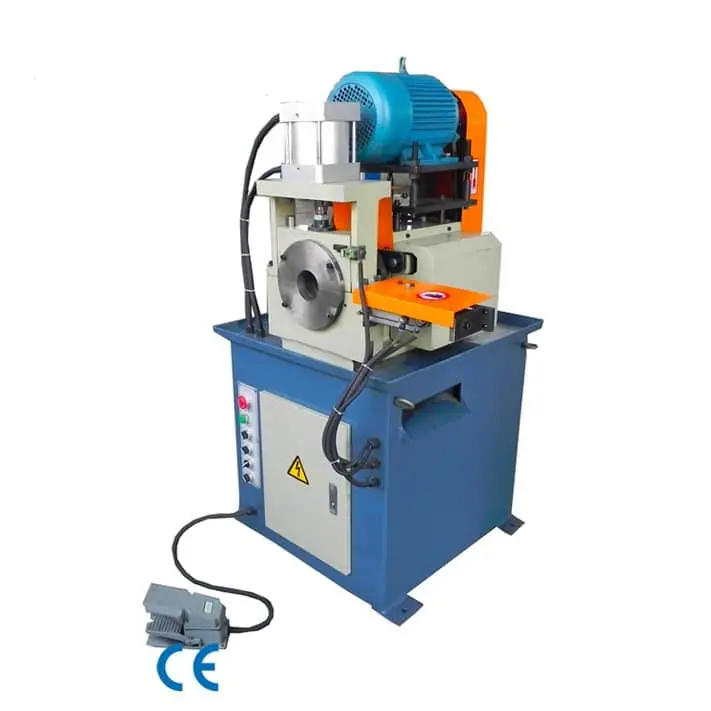

pc50 rod pipe double side automatic chamfering machine
pc50 rod pipe double side automatic chamfering machine Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.
- Specification/ModelAEF-AC/80 AEF-PV/52
- Main motor power2.2kw 1.5KW
- Weight400kg 300kg
- Processing diameter30-82mm 9-52mm
- Processing external angle20-50mm 9-25mm
- compressed air6-8GS/cm2 6-8GS/cm2
- Size500mmx 400mm x 850mm
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
pc50 rod pipe double side automatic chamfering machine
Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe etc.
Main characteristics:
1. Hand feeding, automatic blade driving and retracting, high speed, doubles the production capacity.
2. Fits for endface interior and external angles of pipes and bars, can finish the riveting and coping in a single time with quickness and good accuracy.
3. To ensure the stability of the centerline between the processing piece and saw plate, the clamping die and saw plate are precisely designed and can finish the processing evenly at a single time.
4. The saw plate is specially designed, saw blade standardized, the adjustment of blade is easy and quick.
Main parameter:
| Specification/Model | AEF-PV/52 | AEF-AC/80 |
| Main motor power | 1.5KW | 2.2kw |
| Main axis speed | According to the pipe material | |
| Processing diameter | 9-52mm | 30-82mm |
| Processing external angle | 9-25mm | 20-50mm |
| compressed air | 6-8GS/cm2 | 6-8GS/cm2 |
| Size | 450mmx 400mm x 800mm | 500mmx 400mm x 850mm |
| Weight | 300kg | 400kg |
