Open Clamping Mold Cold Heading Machine
Open Clamping Mold Headers
The Mold Open And Clamping Heading Machine belong to the cold heading machine, the function is the first molding and the second punching products, which is…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Application Scope of Open Clamping Mold Heading Machine
The Mold Open And Clamping Heading Machine belong to the cold heading machine, the function is the first molding and the second punching products, which is mainly used for forming the heads of the screw products, the work principle is line materials calibration, accessing lines, sending materials to the main mold, first punching initial forging, and second punching the formed blank materials and withdraw.
Specifications of Open Clamping Mold Heading Machine
| Model | Unit | AOH12-6 | AOH12-8 | AOH12-10 | AOH12-8U | AOH12-12U |
| Max. Shank Diameter | MM | 6 | 8 | 10 | 8 | 13 |
| Max. Product Length | MM | 70 | 90 | 200 | Unlimited | Unlimited |
| Max. Output | PPM | 90 | 80 | 60 | 50 | 40 |
| Open Clamped Die Size | MM | 40*40*50 | 50*50*75 | 55*55*100 | 50*50*100 | 80*80*160 |
| Punch Diameter | MM | 35*80 | 35*120 | 40*120 | 35*120 | 55*150 |
| Main Motor | KW | 2.2 | 4 | 5.5 | 4 | 11 |
| Weight | KG | 1700 | 2400 | 5200 | 3000 | 7000 |
| Dimension | CM | 200*115*160 | 260*140*170 | 320*230*180 | 297*146*155 | 330*160*160 |

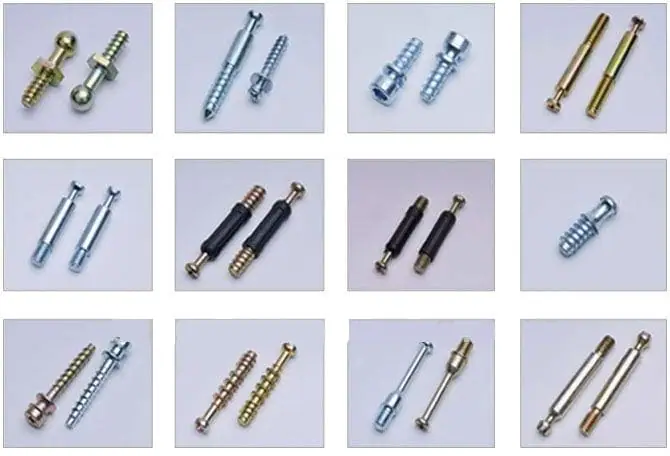

Items can be produced by Open Clamping Mold Heading Machine
Furniture connecting rod fittings,furniture connection rod screws,various clamped molding screws,double heads screws,double caps parts,multi steps special parts,etc.
Related Machines
More From Open Clamping Mold Cold Heading Machine
12MM two die four blow heading machine
2.4MM ultra short semi hollow rivet heading machine
4MM High speed screw head or tail slotting milling machine
8MM High speed screw head or tail groove slotting milling machine
8x90mm high speed screw header making 7mm short screw
ASS-10 Special shape screw head groove cutting machine
ASS-4 Automatic screws groove slotting cutting machine
ASS-8 High speed screw head groove slotting machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
