Screw Head Slotting Machine

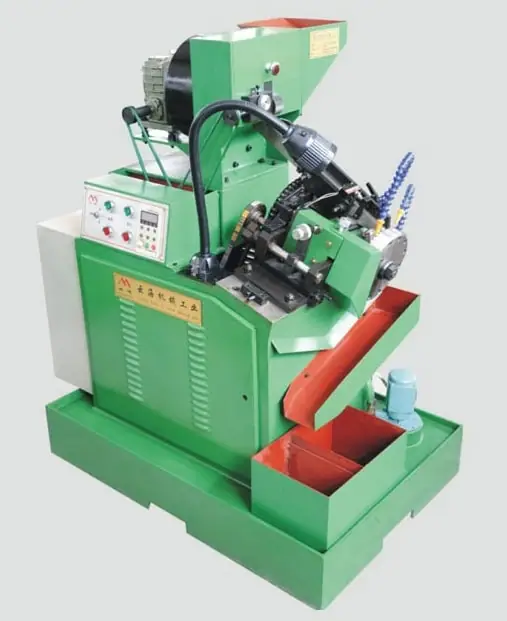

ASS-10 Special shape screw head groove cutting machine
Pan head,round head screw and bolt groove slotting sample. Hex head and hex flange screw bolt groove slotting sample.
- ModelASS-10
- Production speed per minute30-90
- Main motor0.75KW*1 1.1KW*1
- Net weight520KG
- Appro. dimensions1100mm X 750mm X 1250mm
- Milling & slotting cutter sizeExternal diameter: Φ45mm-Φ50mm Inner bore: Φ16mm Thickness: 0.4mm-3.0mm
- Suitable screw rangeExternal diameter Φ2.5mm-Φ8.0mm Shaft length 3.5mm-50mm
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of ASS-10 Special shape screw head groove cutting machine
Main Specifications of ASS-10 Special shape screw head groove cutting machine
| High-speed precision burr-free screw slot milling machine | |
| Model | ASS-10 |
| Net weight | 520KG |
| Main motor | 0.75KW*1 1.1KW*1 |
| Appro. dimensions | 1100mm X 750mm X 1250mm |
| Production speed per minute | 30-90 |
| Milling & slotting cutter size | External diameter: Φ45mm-Φ50mm Inner bore: Φ16mm Thickness: 0.4mm-3.0mm |
| Suitable screw range | External diameter Φ2.5mm-Φ8.0mm Shaft length 3.5mm-50mm |
1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;
2.The most suitable production speed of the product depends on the shape, size and material of the product;
3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.
Slotting samples:
Pan head,round head screw and bolt groove slotting sample.
Hex head and hex flange screw bolt groove slotting sample.
Special screws and parts groove slotting sample.
Set screw and thread rod groove slotting sample.
Application Scope of ASS-10 Special shape screw head groove cutting machine
High speed screw head groove slotting machine is one kind of specialized screw head or shank slotting machine with high efficiency and automation features. Are used for producing different kinds of screws,bolts head or shank slot cutting.
Salient Features of ASS-10 Special shape screw head groove cutting machine
1.Burr-free screw groove slot cutting,double cutter milling design.
2.Eliminates subsequent secondary deburring process.
3.Variable frequency inverter speed control, free to set the feeding and producting speed.
4.User-friendly design, simple to operate.
