Nails Making Machine

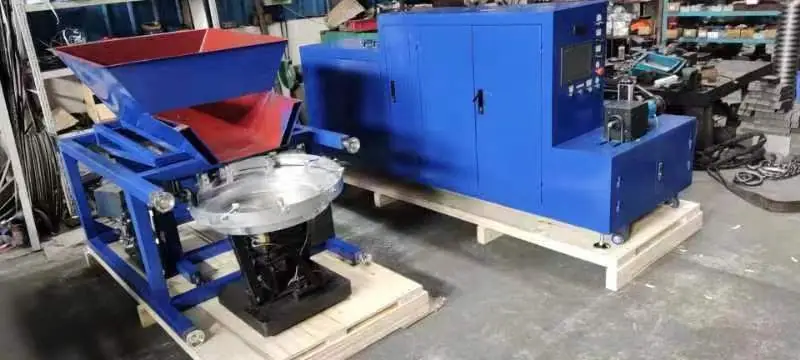

Nails knurling and weld coiling machine
High speed steel iron wire nails making machine is one kind of advance nails making machine with high efficiency and automation features. Are used for…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Nails knurling and weld coiling machine
Main Specifications of Nails knurling and weld coiling machine
| Technical data | Units | AJD-4 | ||
| Dia of nail Max. | mm | 4 | ||
| Dia of nail Min. | mm | 1 | ||
| Length of nail Max. | mm | 100 | ||
| Length of nail Min. | mm | 25 | ||
| Designed capacity | pcs/min. | 1500-2600 | ||
| Motor power | kw | 8 | ||
| Weight(approx) | kg | 1300 | ||
| Overall dimensions | mm | 2800x900x1500 |
1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;
2.The most suitable production speed of the product depends on the shape, size and material of the product;
3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.
Application Scope of Nails knurling and weld coiling machine
High speed steel iron wire nails making machine is one kind of advance nails making machine with high efficiency and automation features. Are used for producing different kinds of nails.
Salient Features of Nails knurling and weld coiling machine
1.High speed nail making design..
2.Eliminates subsequent secondary deburring process.
3.Variable frequency inverter speed control, free to set the feeding and producting speed.
4.User-friendly design, simple to operate.
Questions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
