Nails Making Machine

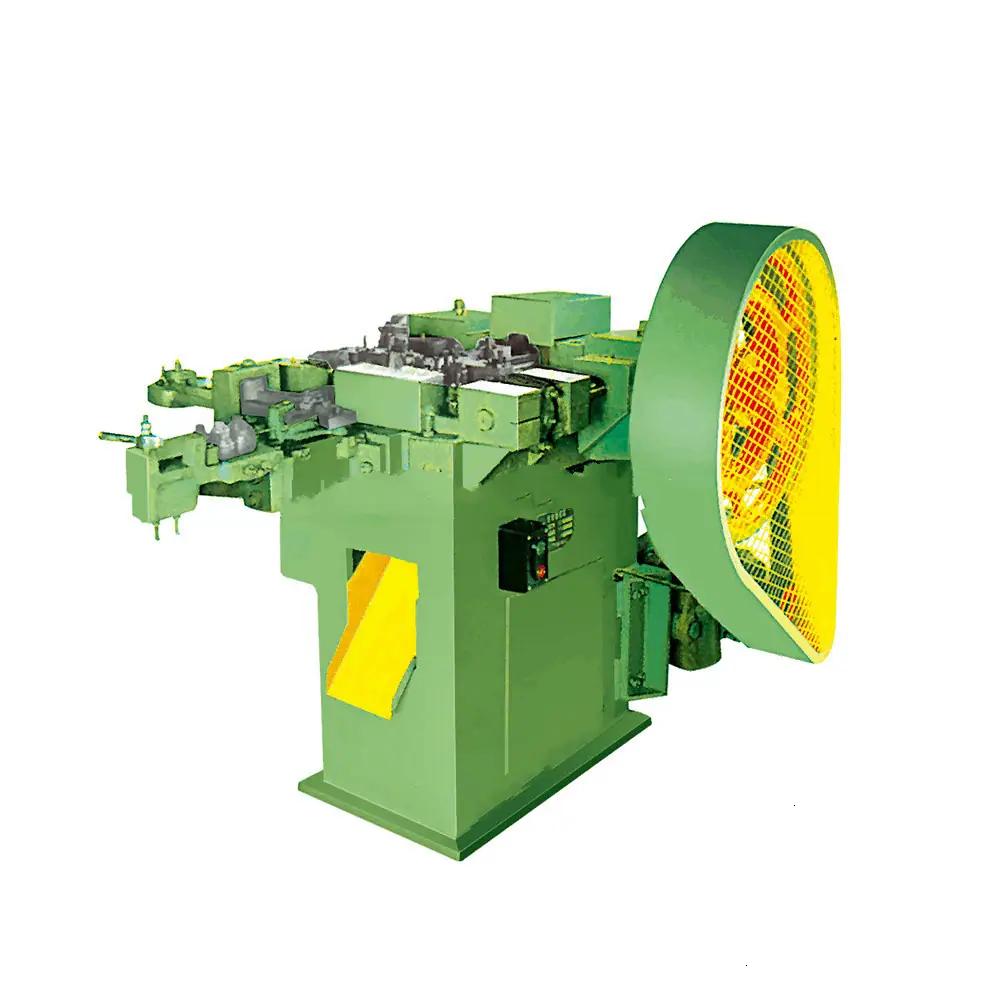

3-6MM High speed steel iron wire nails forming machine
High speed steel iron wire nails forming machine features High speed steel iron wire nails making machine is one kind of advance nails making machine with…
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of High speed steel iron wire nails forming machine
Main Specifications of High speed steel iron wire nails forming machine
| Technical data | Units | Z94-2.8C | Z94-4.5C | Z94-5.5C |
| Dia of nail Max. | mm | 2.8 | 4.5 | 5.5 |
| Dia of nail Min. | mm | 1.2 | 2.8 | 3.1 |
| Length of nail Max. | mm | 50 | 100 | 152 |
| Length of nail Min. | mm | 16 | 50 | 70 |
| Designed capacity | pcs/m | 320 | 280 | 180-220 |
| Motor power | kw | 2.2 | 4 | 5.5 |
| Weight(approx) | kg | 1450 | 2000 | 2600 |
| Overall dimensions | mm | 1700x1300x1400 | 2200x1600X1650 | 2600x1700x1700 |
1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;
2.The most suitable production speed of the product depends on the shape, size and material of the product;
3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.
High speed steel iron wire nails forming machine features
Application Scope of High speed steel iron wire nails forming machine
High speed steel iron wire nails making machine is one kind of advance nails making machine with high efficiency and automation features. Are used for producing different kinds of nails.
Salient Features of High speed steel iron wire nails forming machine
1.High speed nail making design..
2.Eliminates subsequent secondary deburring process.
3.Variable frequency inverter speed control, free to set the feeding and producting speed.
4.User-friendly design, simple to operate.
