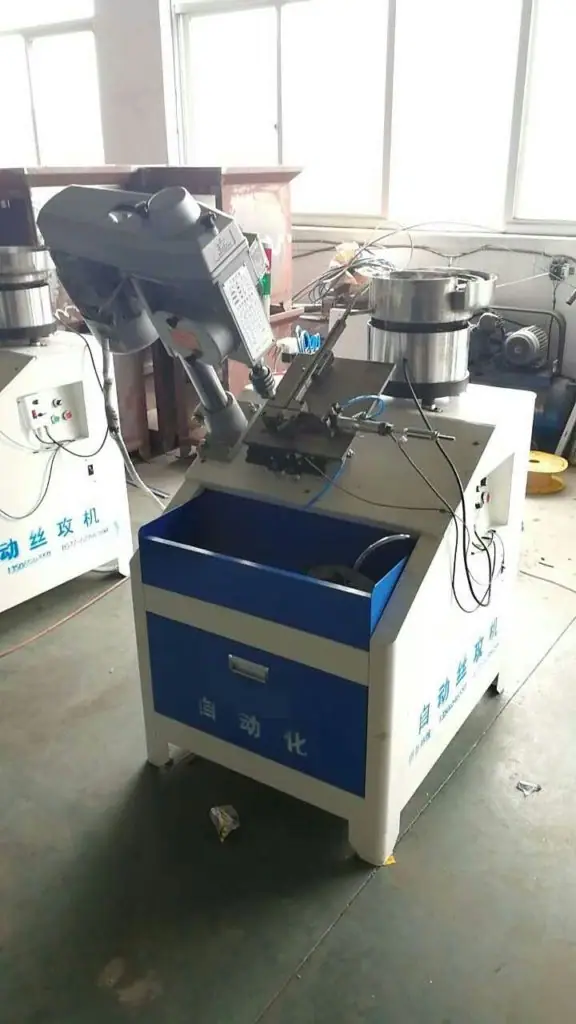

Nut Thread Tapping Machine
M10- 3/8″ Drop in cut anchor thread making machine
drop in anchor sleeve straight feeding for thread tapping drop in anchor sleeve rotary plate feeding for thread tapping
- ModelM10 M10
- Tapping Stations2 1
- Main Motor1.1kw*2 1.1kw
- Appro. Weight650kg 4 50kg
- Appro. Dimension1.5*0.9*0.78M
- Parameters3/8" 3/8"
- Tapping Speed40 20
- Rotary Per Min.650 650
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of M10- 3/8″ Drop in cut anchor thread making machine
Salient Features of M10- 3/8″ Drop in cut anchor thread making machine:
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
Specifications of M10- 3/8" Drop in cut anchor thread making machine
| Model | M10 | M10 |
|---|---|---|
| Parameters | 3/8" | 3/8" |
| Tapping Stations | 1 | 2 |
| Tapping Speed | 20 | 40 |
| (Pcs Per Min) | ||
| Rotary Per Min. | 650 | 650 |
| Air Pressure | 6-8kg | 6-8kg |
| Main Motor | 1.1kw | 1.1kw*2 |
| Oil Pump | 0.25kw | 0.25kw |
| Appro. Weight | 4 50kg | 650kg |
| Appro. Dimension | 0.8*0. 6 *0.78M | 1.5*0.9*0.78M |
drop in anchor sleeve straight feeding for thread tapping

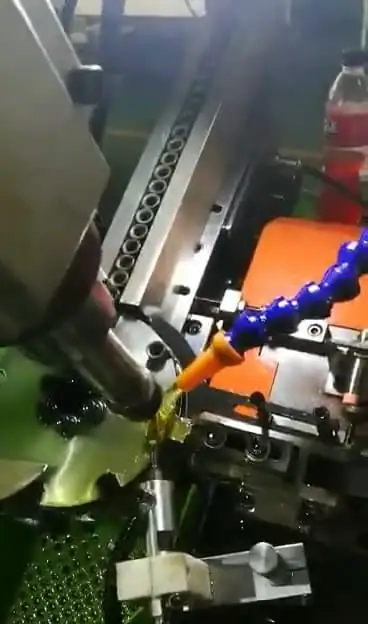

drop in anchor sleeve rotary plate feeding for thread tapping
Related Machines
More From Nut Thread Tapping Machine
3 piece shield anchor nut servo high speed thread tapping machine
3pcs 4pcs shield anchor nut high precision auto thread tapping machine
Aluminum profile hammer boat nut high speed forging machine
Brass dome cap nut servo high speed thread tapping machine with blind hole detection
DIN6923 stainless steel M10 flange nut 4 spindles thread tapping machineDouble servo motor drive high speed high precision thread tapping machine
Double station drop in anchor bush automatic thread tapping machine
Drop In Anchor Tapping MachineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
