Nut Thread Tapping Machine

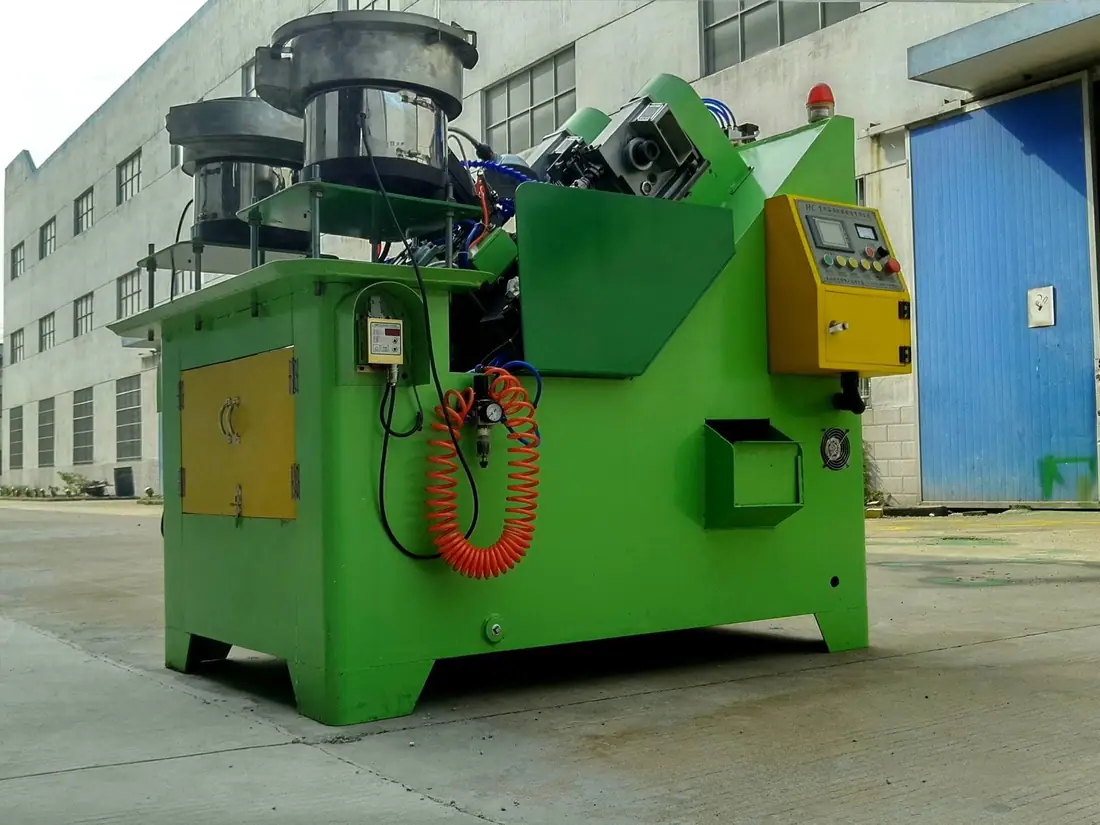

Double station drop in anchor bush automatic thread tapping machine

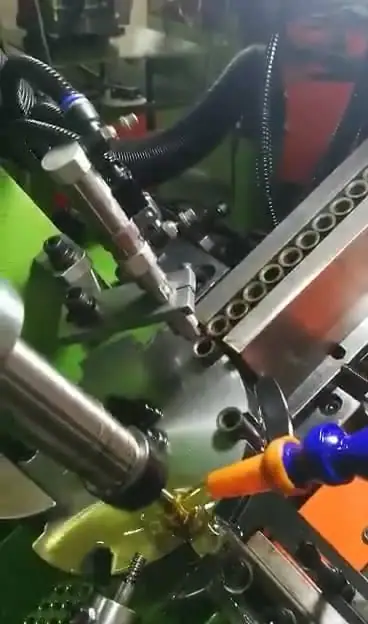

DROP IN ANCHOR thread tapping rotary plate feeding
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of Double station drop in anchor bush automatic thread tapping machine
Salient Features of Double station drop in anchor bush automatic thread tapping machine:
- Full automatic design with high efficiency.
- Easy to operate and adjustment.
- Advanced PLC control system optional.
DROP IN ANCHOR thread tapping rotary plate feeding
Specification sheet of double station drop in anchor bush automatic tapping machine
| Model | M6 | M8 | M10 | M12 | M16 | M20 |
|---|---|---|---|---|---|---|
| Size | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 3/4" |
| Tapping Stations | 2 | 2 | 2 | 2 | 2 | 2 |
| Tapping Speed | 42PPM | 40PPM | 40PPM | 30PPM | 20PPM | 16PPM |
| Rotary Per Min. | 940 | 740 | 650 | 560 | 420 | 320 |
| Air Pressure | 4-5kg | 5-6kg | 6-8kg | 6-8kg | 6-8kg | 6-8kg |
| Main Motor | 0.55kw*2 | 0.75kw*2 | 1.1kw*2 | 1.1kw*2 | 1.5kw*2 | 1.5kw*2 |
| Oil Pump | 0.25kw | 0.25kw | 0.25kw | 0.25kw | 0.25kw | 0.25kw |
| Appro. Weight | 600kg | 600kg | 650kg | 900kg | 1 20 0kg | 1500kg |
| Appro. Dimension | 1.5*0.8*0.7M | 1.5*0.8*0.7M | 1.5*0.9*0.78M | 1.8*1.0*0.9M | 1.8*1.2*1.0M | 1.9*1.3*1.2M |
