Welding Rivets Forming Machine
Carbon steel Weld studs nail automatic making machine
Carbon steel Weld studs nail automatic making machine Running steady and easy to operate & adjustment.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Carbon steel Weld studs nail automatic making machine
Salient Features:
- One die two blows design,simple structure.
- Running steady and easy to operate & adjustment.
- Extra length upto 400MM machine available,satisfy customer’s requirement for very long bolt.
Headed weld studs drawing made by Welding studs automatic making machine

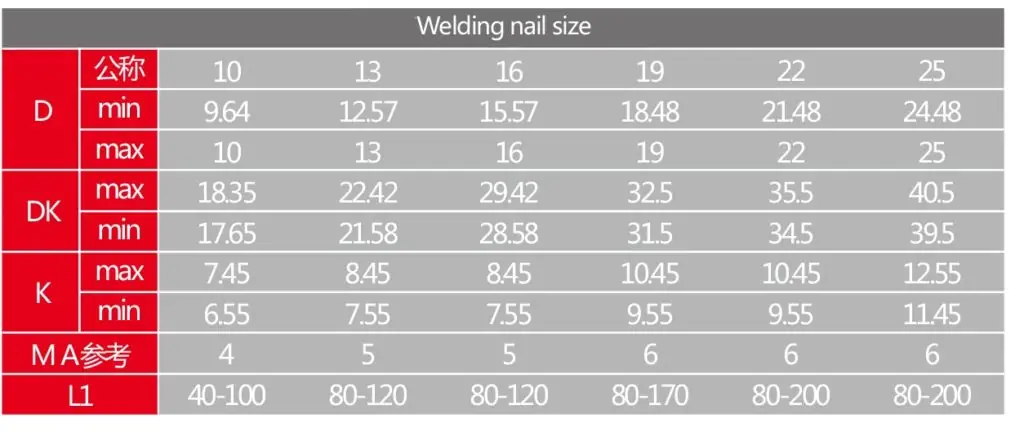

threaded stud welder dimensions list made by stud welder making machine
Carbon steel weld studs nail chemical composition
Carbon steel welding studs nail mechanical properties

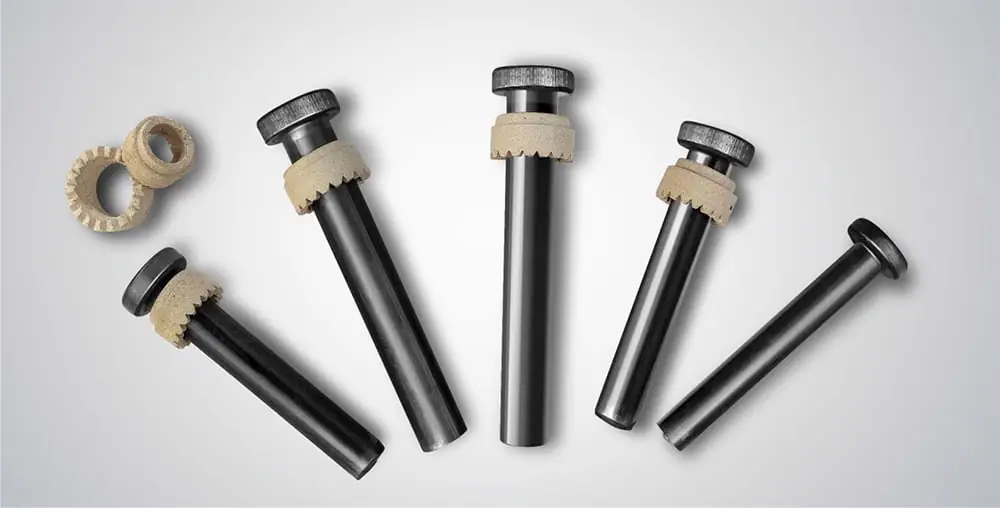

Headed weld studs made by Welding studs automatic making machine
Specification sheet of Welding studs automatic making machine
| Model | Shank Dia.(MM) | Shank Length (MM) | Output (PPM) | Ram Stroke (MM) | Main Motor(KW) | Weight (KG) | Dimensions (M) |
|---|---|---|---|---|---|---|---|
| ANH12-4 | 2-4 | 5-50 | 85 | 90 | 3 | 1500 | 1.23×0.88×1.05 |
| ANH12-6 | 4-6 | 8-80 | 80 | 120 | 5.5 | 3500 | 2.35×1.4×1.35 |
| ANH12-6A | 4-6 | 15-130 | 55 | 180 | 5.5 | 4000 | 2.7×1.5×1.45 |
| ANH12-8 | 6-8 | 15-130 | 65 | 180 | 7.5 | 5500 | 3.3×1.6×1.45 |
| ANH12-10 | 8-10 | 20-150 | 60 | 200 | 11 | 6500 | 3.52×1.9×1.7 |
| ANH12-10L | 8-10 | 30-200 | 55 | 260 | 11 | 8500 | 4×2×1.8 |
| ANH12-10LL | 8-10 | 45-250 | 45 | 330 | 11 | 10000 | 4.5×2.1×1.88 |
| ANH12-12 | 10-12 | 15-150 | 55 | 200 | 18.5 | 11500 | 5.5×2.35×1.75 |
| ANH12-12L | 10-12 | 30-200 | 50 | 280 | 18.5 | 12500 | 5.9×2.35×1.75 |
| ANH12-12LL | 10-12 | 50-250 | 40 | 330 | 18.5 | 14000 | 6.3×2.4×1.8 |
| ANH12-16 | 12-16 | 15-150 | 55 | 200 | 22 | 15000 | 6.4×2.5×2.5 |
| ANH12-16A | 12-16 | 25-200 | 50 | 260 | 22 | 18000 | 6.8×2.65×2.5 |
| ANH12-16L | 12-16 | 45-250 | 40 | 330 | 22 | 19000 | 7×2.8×2.5 |
| ANH12-16LL | 12-16 | 55-300 | 32 | 420 | 30 | 23000 | 7.15×2.95×2.5 |
| ANH12-20 | 12-20 | 15-200 | 50 | 260 | 37 | 23000 | 7.2×3.2×2.3 |
| ANH12-24 | 20-24 | 15-350 | 45 | 260 | 40 | 28000 | 7.3×3.4×2.3 |
| ANH12-30 | 24-30 | 50-400 | 35 | 500 | 55 | 43000 | 8.8*4*2.8 |
