Hydraulic Press

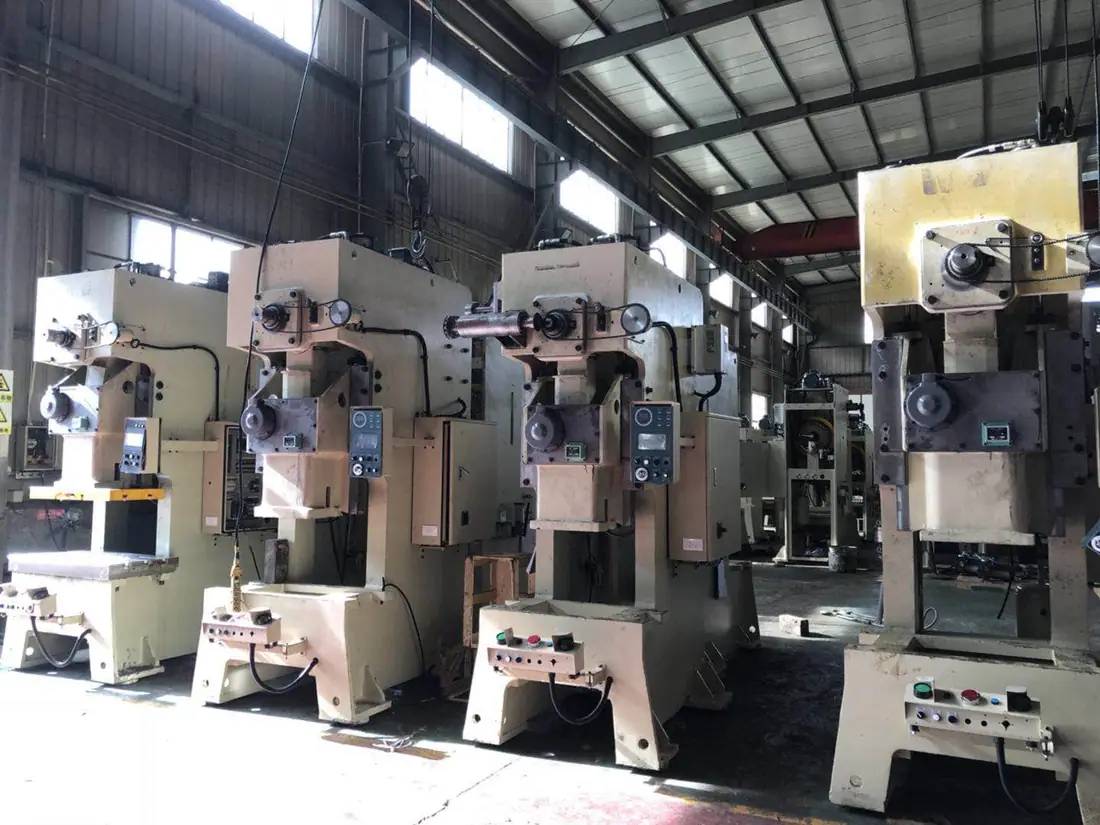

GM Series 200-600Tons guide plate type hydraulic press punching machine
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life. ·Low noise, low vibration, and low cutting noise.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
GM Series 200-600Tons guide plate type hydraulic press punching machine
Features
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.
Specifications of GM Series 200-600Tons guide plate type hydraulic press punching machine
| Item/Specification | Unit | GM200 | GM260 | GM300 | GM400 | GM500 | GM600 |
|---|---|---|---|---|---|---|---|
| Main pressing capacity | Ton | 200 | 260 | 300 | 400 | 500 | 600 |
| Max.stroke | mm | 410 | 430 | 460 | 490 | 520 | 550 |
| Daylight opening | mm | 660 | 680 | 710 | 740 | 820 | 850 |
| Bolster area L.R×F.B | mm | 2200×940 | 2350×1000 | 2600×1000 | 2800×1100 | 3000×1300 | 3200×1300 |
| Slide area L.R×F.B | mm | 1850×750 | 2100×900 | 2300×900 | 2400×1000 | 2600×1150 | 2800×1150 |
| System max pressure | Mpa | 18 | 18 | 18 | 18 | 18 | 18 |
| Fast speed down | mm/sec | 280 | 280 | 280 | 280 | 280 | 280 |
| Fast speed up | mm/sec | 280 | 280 | 280 | 280 | 280 | 280 |
| Increasing pressure speed | mm/sec | 30 | 30 | 25 | 25 | 25 | 25 |
| Main motor power | kw | 22 | 30 | 30 | 37 | 45 | 22+37 |
Copper anti wear slider of GM Series 200-600Tons guide plate type hydraulic press punching machine
Top quality copper anti wear sleeve of GM Series 200-600Tons guide plate type hydraulic press punching machine
OMPI clutch used on GM Series 200-600Tons guide plate type hydraulic press punching machine
Cnc automatic strip feeder with touch screen of chinese and english language.
Related Machines
More From Hydraulic Press
100-1000Tons APY series double double action crank precision punching machine
100-500Tons APM series couple cranks precision pressing machine
100-500Tons APS series single crank slide adjustable precision press
APA series universal type progressive stamping precision press
APB series high speed punching press machine
APC series double crank shafts type high precision press
APD semi enclosed high strength precision press
APE semi closed type door shape double cranks precision pressQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
