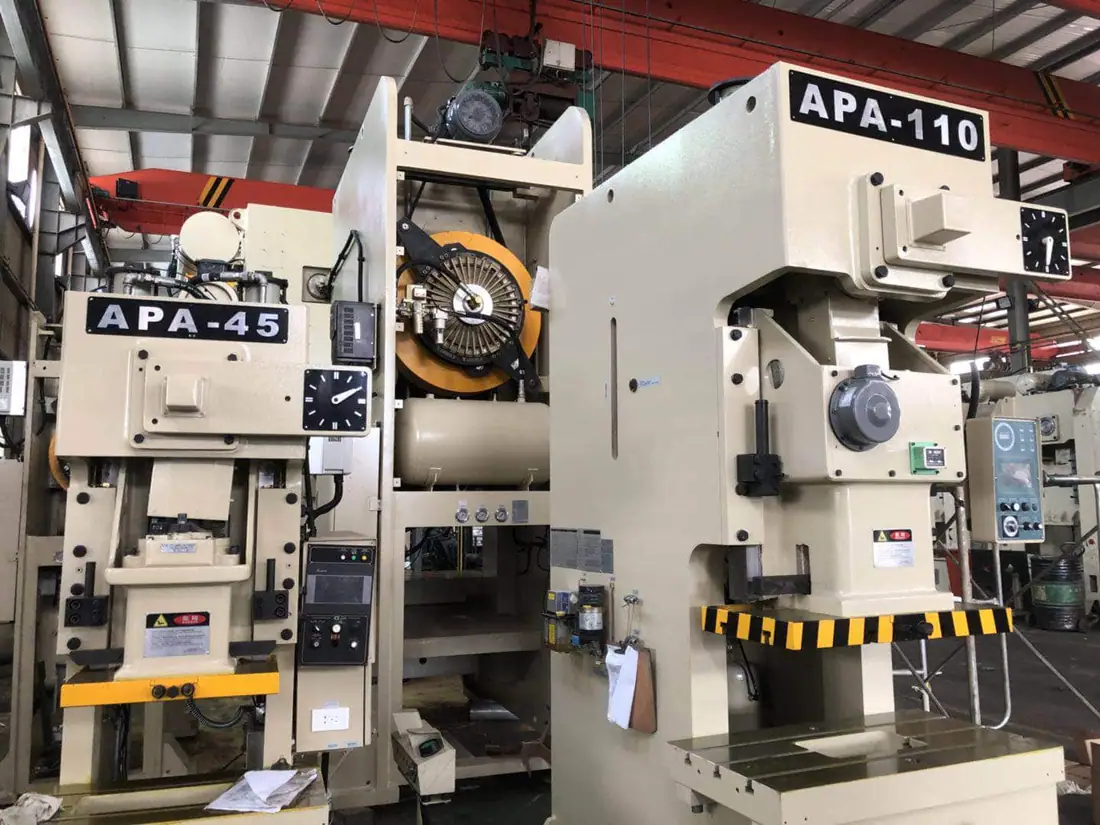

APA series universal type progressive stamping precision press

APA series universal type progressive stamping precision press — detail 1

APA series universal type progressive stamping precision press — detail 2

APA series universal type progressive stamping precision press — detail 3

High Precision Press

APA series universal type progressive stamping precision press

The 15Tons-260Tons APA series universal type progressive stamping precision press adopts most advanced technology to replace the traditional press machine—…

Request A Quote Email Us Talk To An Engineer

Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
More than twenty years experience in cold and hot forging and metal stamping equipment
Rapid response technical team for operation guidance and production support

Category: Progressive Stamping · Progressive Stamping Machine · High Precision Press

Watch Machine Video

APA series universal type progressive stamping precision press

The 15Tons-260Tons APA series universal type progressive stamping precision press adopts most advanced technology to replace the traditional press machine— the universal type press machine equpment has wide applicability,high security and low noise characteristics.it consistent with the requirements of advanced high level automation equipment.
We can provide and support technical design and data/engineering appliance project for customers who selectted our press machine.

Salient features of APA series universal type progressive stamping precision press

■　The advance technical and optimized structure of machine

■　The machine body is welded by high quality steel sheet and treated by high tension elimination

■　The key parts are treated by hard chrome plated/nitrogen treatment.

■　Adopted well known brands of controller/driving unit/electromagnetism clutch/ equipments,bearing etc

ROBOTIZATION CONTROL SYSTEM PROJECT OPTIONAL FOR THE PRESS

■　High quality& high response multi –function processor

■　High memory /program with specialized design

■　Shift driving with high integration multishaft/spreading automatic equipments

■　LCD man-machine interface/high frequency response control /Connection terminalof international website & USB
(optional:DC shift driving/frequency shift driving/servo shift driving/closed loop/ spreading capacity /LCD)

Top quality copper anti wear sleeve of APA series universal type progressive stamping precision press

Delta inverter of 15Tons-260Tons APA series universal type progressive stamping precision press

OMPI clutch used on APA series universal type progressive stamping precision press

Dorna mitusbihsi chint electric devices on APA series universal type progressive stamping precision press

Dorna mitusbihsi chint famous brands electric components used one the stamping press

Cnc strip feed for Workshop of APA series universal type progressive stamping precision press

Cnc automatic strip feeder with touch screen of chinese and english language.

Specifications of 15 Tons-35Tons APA series universal type progressive stamping precision press

Model		Unit	APA-15B	APA-25B	APA-25B	APA-25B	APA-35B	APA-35B
Type			V	V	H	S	V	H
Capacity		Ton	15	25	25	25	35	35
Rated tonnage point		mm	1	3.2	1.6	3.2	3.2	1.6
Number of strokes per minute	Speed changing	s.p.m	120-180	60-140	130-200	60-120	40-120	110-180
	Stable speed	s.p.m	130		110	110		85
Stroke		mm	60	70	30	80	70	40
Die height		mm	200	195	215	195	220	235
Slide adjustment		mm	50	50	50	50	55	55
Slide area		mm	300×230×50	300×230×50	300×230×50	300×230×50	360×250×50	360×250×50
Bolster area		mm	680×300×70	680×300×70	680×300×70	680×300×65	800×400×70	800×400×70
Shank hole		mm	ø38.1	ø38.1	ø38.1	ø38.1	ø38.1	ø38.1
Main motor		kw.p	2.2×6	VS3.7×4	VS3.7×4	VS3.7×4	VS3.7×4	VS3.7×4
Slide adjust device		HP	manual	manual	manual	manual	manual	manual
Air pressure		Kg/m²	6	6	6	6	6	6
Presses precision grade			GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class
Presses dimension		mm	1236×820×1920	1280×850×2200	1280×850×2200	1280×850×2200	1380×900×2400	1380×900×2400
Presses weight		Ton	1.8	2.1	2.1	2.1	3	3
Die cushion capacity		Ton					2.3	2.3
Stroke		mm					50	50
Die cushion effective area		mm²					300×230	300×230

Specifications of 45 Tons-80Tons APA series universal type progressive stamping precision press

Model		Unit	APA-45B	APA-45B	APA-60B	APA-60B	APA-80B	APA-80B
Type			V	H	V	H	V	H
Capacity		Ton	45	45	60	60	80	80
Rated tonnage point		mm	3.2	1.6	4	2	4	2
Number of strokes per minute	Speed changing	s.p.m	40-100	110-150	35~90	80-120	35-80	80-120
	Stable speed	s.p.m	75	75	65	65	65	65
Stroke		mm	80	50	120	60	150	70
Die height		mm	250	265	310	340	340	380
Slide adjustment		mm	60	60	75	75	80	80
Slide area		mm	400×300×60	400×300×60	500×360×70	500×360×70	560×420×70	560×420×70
Bolster area		mm	900×500×80	900×500×80	1000×550×90	1000×550×90	1000×550×90	1000×550×90
Shank hole		mm	ø50	ø50	ø50	ø50	ø50	ø50
Main motor		kw.p	VS5.5×4	VS5.5×4	VS5.5×4	VS5.5×4	VS7.5×4	VS7.5×4
Slide adjust device		HP	electrial driving	electrial driving	electrial driving	electrial driving	electrial driving	electrial driving
Air pressure		Kg/m²	6	6	6	6	6	6
Presses precision grade			GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class
Presses dimension		mm	1600×950×2500	1600×950×2500	1600×1000×2800	1600×1000×2800	1800×1180×2800	1800×1180×2800
Presses weight		Ton	3.8	3.8	5.6	5.6	6.5	6.5
Die cushion capacity		Ton	2.3	2.3	3.6	3.6	3.6	3.6
Stroke		mm	50	50	70	70	70	70
Die cushion effective area		mm²	300×230	300×230	350×300	350×300	450×310	450×310

Specifications of 110Tons-200Tons APA series universal type progressive stamping precision press

Model		Unit	APA-110B	APA-110B	APA-160B	APA-160B	APA-200B	APA-200B
Type			V	H	V	H	V	H
Capacity		Ton	110	110	160	160	200	200
Rated tonnage point		mm	6	3	6	3	6	3
Number of strokes per minute	Speed changing	s.p.m	30-60	60-90	20-50	40-70	20-50	50-70
	Stable speed	s.p.m	50	50	35	35	35	35
Stroke		mm	180	80	200	90	200	100
Die height		mm	360	410	460	510	460	510
Slide adjustment		mm	80		100		110
Slide area		mm	650×470×80	650×470×80	700×550×90	700×550×90	850×630×90	850×630×90
Bolster area		mm	1150×600×110	1150×600×110	1250×800×140	1250×800×140	1400×820×160	1400×820×160
Shank hole		mm	ø50	ø50	ø65	ø65	ø65	ø65
Main motor		kw.p	VS7.5×4	VS7.5×4	VS15×4	VS15×4	VS18.5×4	VS18.5×4
Slide adjust device		HP	electrial driving	electrial driving	electrial driving	electrial driving	electrial driving	electrial driving
Air pressure		Kg/m²	6	6	6	6	6	6
Presses precision grade			GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class	GB/JIS 1class
Presses dimension		mm	1900×1300×3200	1900×1300×3200	2300×1400×3800	2300×1400×3800	2615×1690×4075	2615×1690×4075
Presses weight		Ton	9.6	9.6	16	16	23	23
Die cushion capacity		Ton	6.3	6.3	10	10	14	14
Stroke		mm	80	80	80	80	100	100
Die cushion effective area		mm²	500×350	500×350	650×420	650×420	710×480	710×480

Specifications of 260Tons APA series universal type progressive stamping precision press

Model		Unit	APA-260B	APA-260B
Type			V	H
Capacity		Ton	260	260
Rated tonnage point		mm	7	3.5
Number of strokes per minute	Speed changing	s.p.m	20-40	40-50
	Stable speed	s.p.m	30	30
Stroke		mm	250	150
Die height		mm	500	550
Slide adjustment		mm	120
Slide area		mm	950×700×100	950×700×100
Bolster area		mm	1500×840×180	1500×840×180
Shank hole		mm	ø65	ø65
Main motor		kw.p	VS22×4	VS22×4
Slide adjust device		HP	electrial driving	electrial driving
Air pressure		Kg/m²	6	6
Presses precision grade			GB/JIS 1class	GB/JIS 1class
Presses dimension		mm	2780×1850×4470	2780×1850×4470
Presses weight		Ton	32	32
Die cushion capacity		Ton	14	14
Stroke		mm	100	100
Die cushion effective area		mm²	810×480	810×480
