Hydraulic Press
GF Series 5-65Tons guide plate type hydraulic pressing machine
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life. ·Low noise, low vibration, and low cutting noise.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video

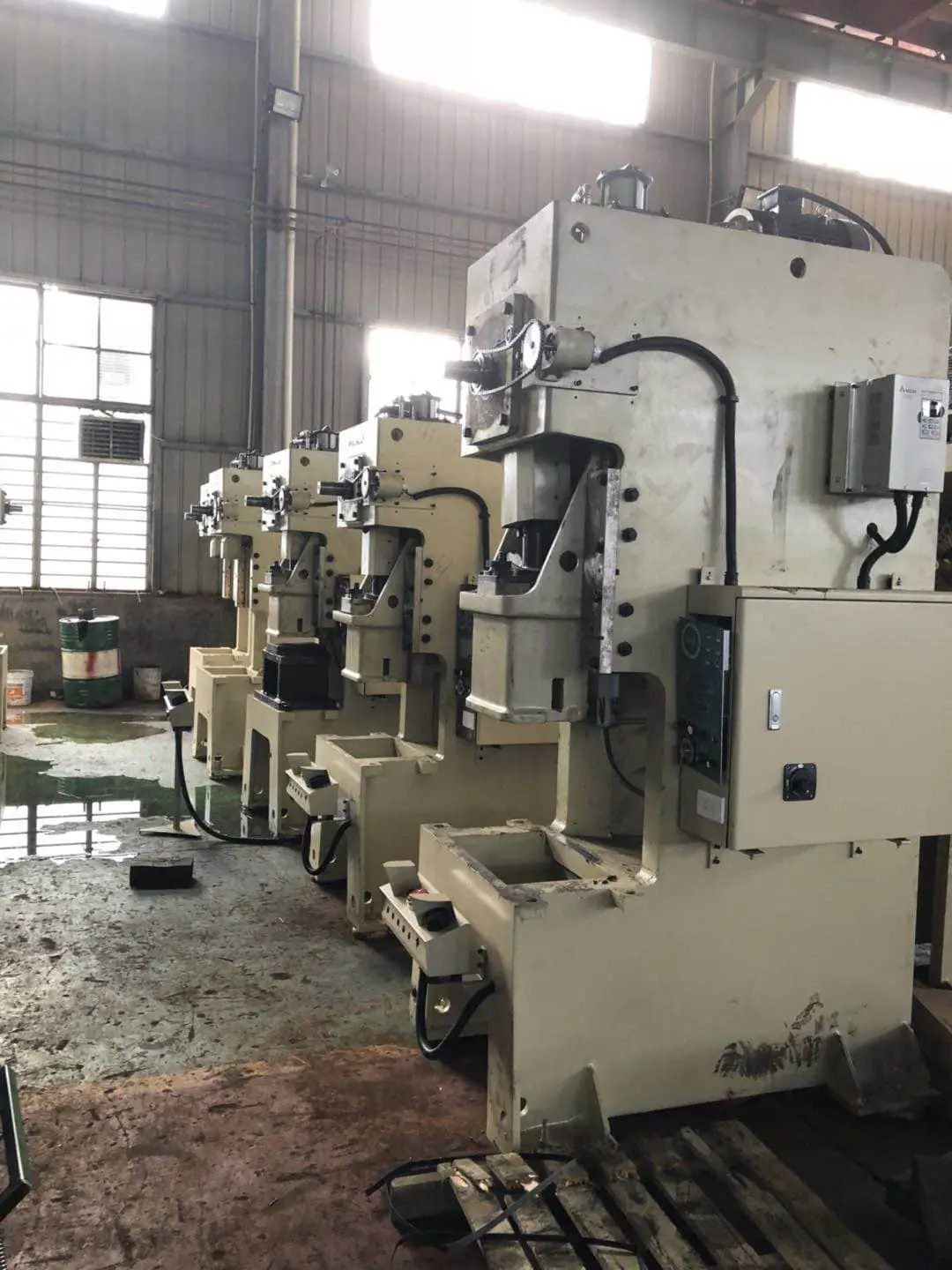

GF Series 5-65Tons guide plate type hydraulic pressing machine
Features
· Highly rigid body, small deformation of the fuselage, and greatly improved tool life.
·Low noise, low vibration, and low cutting noise.
·The number of strokes is adjustable.
·Hydraulic overload protection device, overload automatic emergency stop, protect punch and mold safety.
· Strong left and right eccentric load.
·The fixed-lock six-sided long guide has high precision.
·Human machine interface, easy to operate.
Specifications of GF Series 5-65Tons guide plate type hydraulic pressing machine
| Item/Specification | Unit | GF5 | GF15 | GF25 | GF45 | GF65 |
|---|---|---|---|---|---|---|
| Main pressing capacity | Ton | 5 | 15 | 25 | 45 | 65 |
| Max.stroke | mm | 150 | 180 | 180 | 220 | 270 |
| Daylight opening | mm | 230 | 260 | 280 | 370 | 470 |
| Bolster area L.R×F.B | mm | 400×300 | 520×300 | 680×320 | 850×450 | 900×500 |
| Slide area L.R×F.B mm | mm | 230×120 | 300×230 | 300×230 | 400×300 | 500×360 |
| Die hole size | mm | φ38 | φ38 | φ38 | φ38 | φ50 |
| Depth | mm | 150 | 150 | 160 | 225 | 250 |
| System max pressure | Mpa | 12 | 14 | 16 | 16 | 18 |
| System max pressure | mm/sec | 300 | 300 | 300 | 300 | 320 |
| Fast speed up | mm/sec | 330 | 330 | 330 | 330 | 360 |
| Increasing pressure speed | mm/sec | 35 | 35 | 35 | 35 | 35 |
| Main motor power | kw | 3 | 4 | 5.5 | 7.5 | 11 |
Copper anti wear slider of GF Series 5-65Tons guide plate type hydraulic pressing machine
Top quality copper anti wear sleeve of GF Series 5-65Tons guide plate type hydraulic pressing machine
OMPI clutch used on GF Series 5-65Tons guide plate type hydraulic pressing machine
Cnc automatic strip feeder with touch screen of chinese and english language.
