Welding Rivets Forming Machine
Brass welding rivets with welding tip high speed forming machine
The machine is special two die four blows designed for making carbon steel or brass welding rivets.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Brass welding rivets with welding tip high speed forming machine
The machine is special two die four blows designed for making carbon steel or brass welding rivets.
The whole machine adopts semi-closed design, reasonable structure, beautiful appearance, high speed, low noise and low energy consumption.
A wide range of products can be manufactured by the machine by change desinging of mold,such as various screws, hexagon bolt, sockets bolts, shafts shape parts, multiple steps parts, large head parts,short rod parts, full hollow pull rivet nails, etc.
Specifications of Brass welding rivets high speed forming machine
| Product OD | Max.length | Output | Main die size | Punch die size | Cutter die size | Motors | Weight | Dimension | Model |
|---|---|---|---|---|---|---|---|---|---|
| Φ3-6MM | 40MM | 70PCS/MIN | φ46X857MM | φ31MM | Φ19MM | 3.0+0.25KW | 35T | 2.2*1.24*1.16m | AH24-6 |

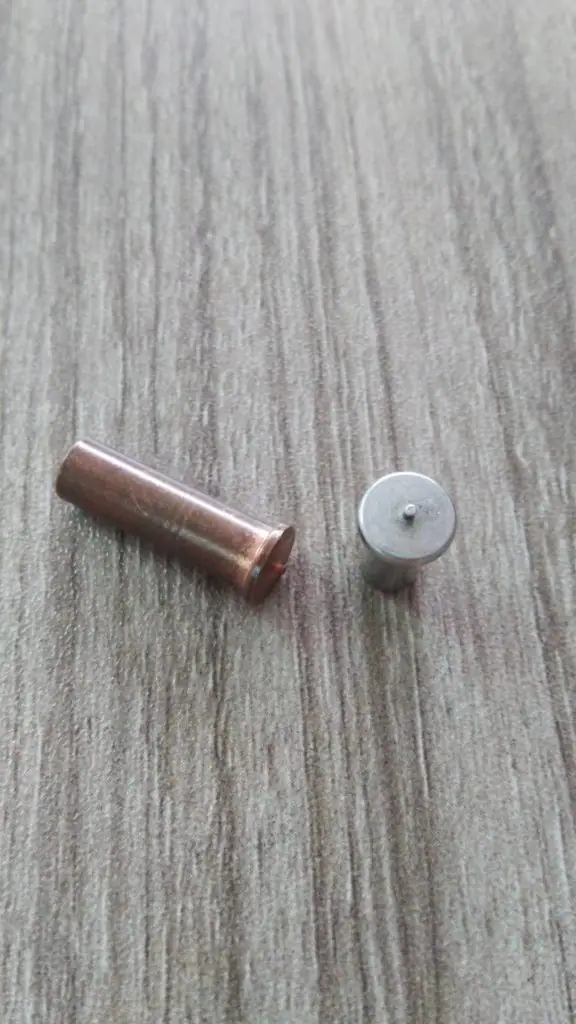

Brass welding rivets made by Brass welding rivets with welding tip forming machine
Welding rivets two die four blows forming machine

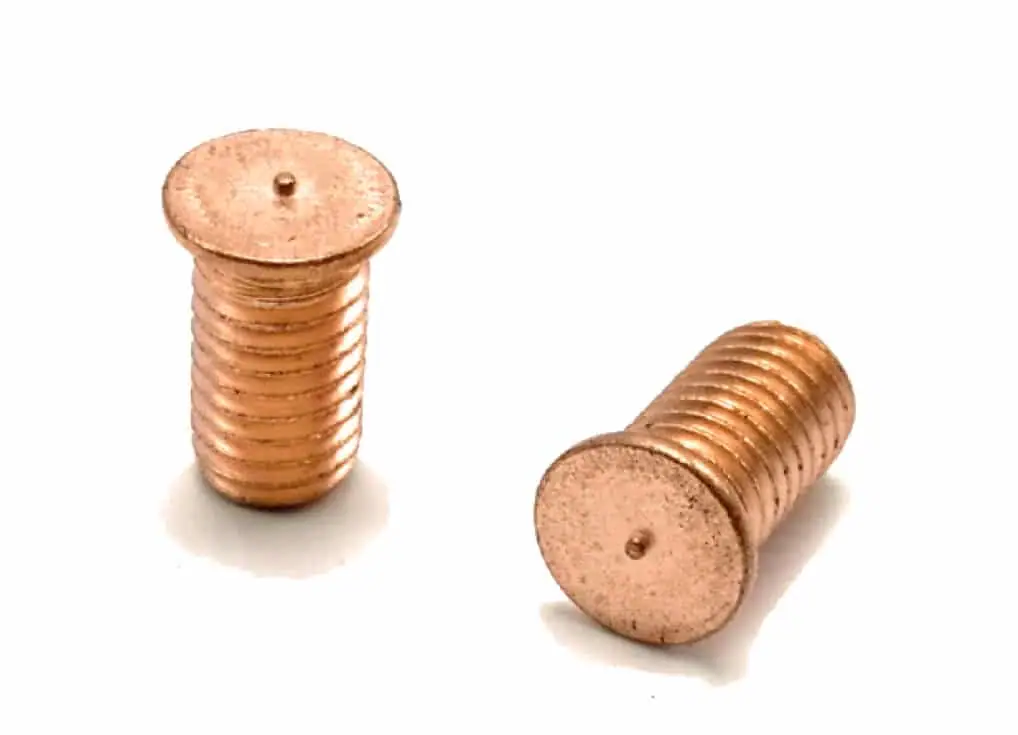

Brass welding rivets made by Brass welding rivets with welding tip high speed forming machine

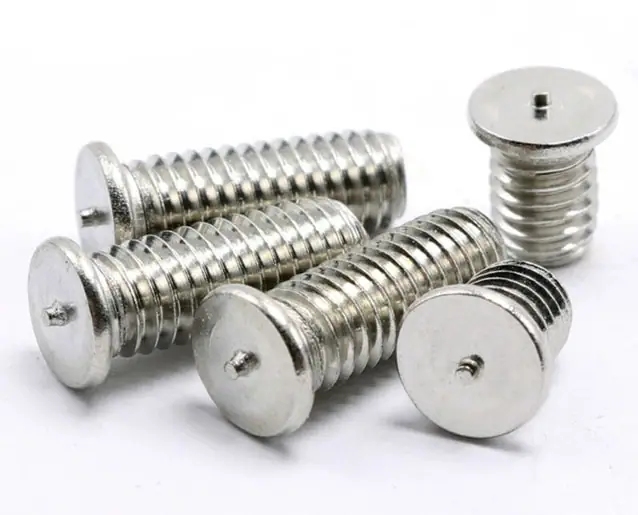

Steel weld rivets made by two die four blow Brass welding rivets with welding tip forming machine
Related Machines
More From Welding Rivets Forming Machine
1-20pcs/pack,1-3 kind/pack screws,nuts,bolts automatic packaging machine
1-3MM High speed steel iron wire nails making machine
1-5000pcs/pack single kind fasteners full automatic packaging machine
1/4″ Toggle anchor bolts making machine
10-20mm fully automatic copper rod processing machine with bending, flattening, cutting and punching
10mm Servo Closed Cut Loop Ring Forming Machine
14mm double chain buckle bending weaving machine
3-6MM High speed steel iron wire nails forming machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
