Hydraulic Circling Thread Rolling Machine

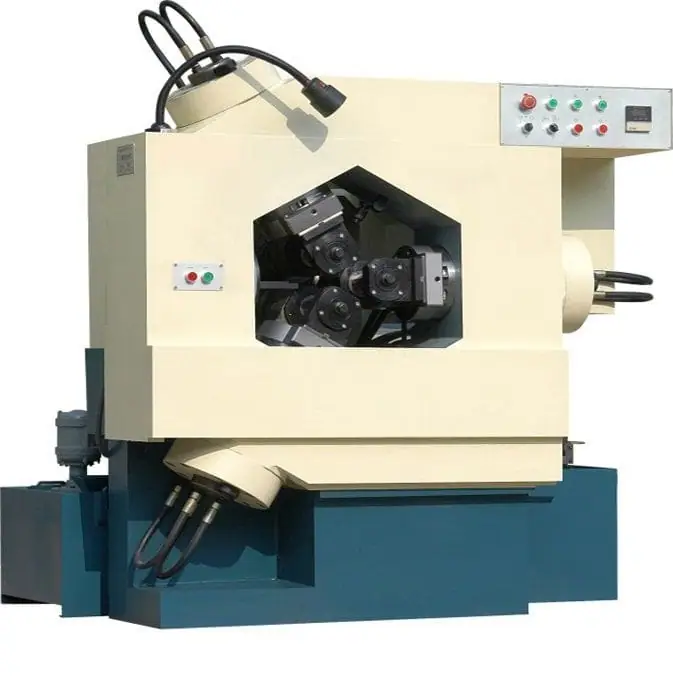

AZP28-20 Three Axles Hydraulic Circling Thread Rolling Machine
Super power; solid front/rear support of main axle for improved stiffness of the machine as a whole.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Salient Features
Super power; solid front/rear support of main axle for improved stiffness of the machine as a whole.
Self-centering of 3 wheels suitable for axial feed in processing of large size, high strength and long hollow pipe fittings.
Main Technical Parameters
| AZP28-20 3-Axle Thread Rolling Machine | |||||
| Max. rolling pressure | KN | 200 | |||
| Rolling thread range | Max. diameter | Radial feed | mm | 120 | |
| Axial feed | mm | 50 | |||
| Max. pitch | Radial feed | mm | 5 | ||
| Axial feed | mm | 6 | |||
| Rolling die range | Max. outer diameter | mm | 178 | ||
| Aperture | mm | 54 | |||
| Max. width | mm | 105 | |||
| Max. center distance btw. main axis | mm | 130 | |||
| Main axis rotation | r.p.m. | 49 | |||
| Main axis inclination | |||||
| Feed travel | mm | 5 | |||
| Center height | mm | 900 | |||
| Gross power | KW | 10.7 | |||
| Dimensions(L*W*H) | mm | 1500*1520*1750 | |||
| Packing dimensions(L*W*H) | mm | 1800*1750*1900 | |||
| Weight | Kg | 3200 | |||
