Hydraulic Circling Thread Rolling Machine

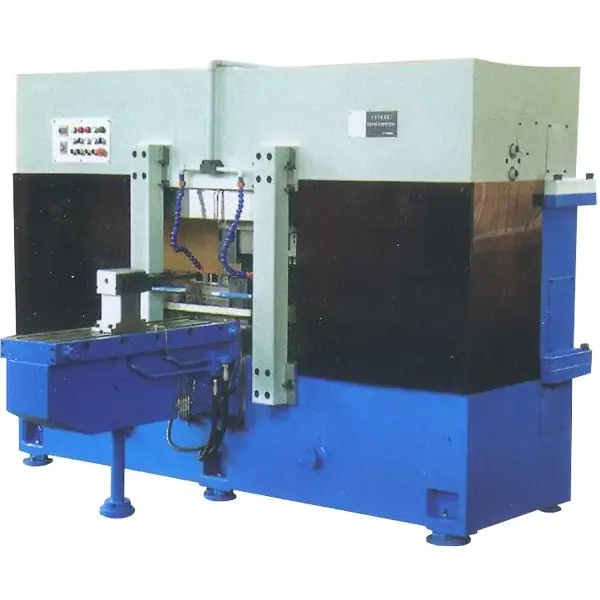

ALC915 Spline Cold Rolling Machine/Torsion Bars Spline Rolling Machine
The processing speed around 10 seconds one pace. The hardness of raw bar the machine can process is equal or less than HRC28 for spline rolling.
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
| ALC915/CNC Spline Cold Rolling Machine/Torsion Bars Spline Machine | |||
| Machine Model | Unit | HLC915 | HLC915 CNC |
| Max. process diameter | MM | ￠40 | ￠50 |
| Max. process width | MM | 90 | |
| Max. process module | MM | 1.27 | 1.27 |
| Rolling knife max.size | MM | 915×100 | |
| Slide max. journey | MM | 1035 | 1160 |
| Max. feeding speed | MM/S | 200 | 200 |
| Total power | KW | ～27 | ～34 |
| Max. distance of knives installation | MM | 152.4 | 152.4 |
| Dimension | MM | 3018×2426×1847 | 2960×2982×1918 |
| Weight | KGS | 13380 | 14270 |
Features:
High acurracy,high speed,
The processing speed around 10 seconds one pace.
The hardness of raw bar the machine can process is equal or less than HRC28 for spline rolling.
Related Machines
More From Hydraulic Circling Thread Rolling Machine
Air valve cock hollow parts three roller wheels automatic hydraulic thread rolling machine
ALC915C CNC Spline Cold Rolling Mill/Torsion Bars Spline Rolling Machine
APA28-15 Hydraulic Thread Rolling Machine
APA28-20 Theead Rod Bar Thread Rolling Machine
APA28-46 Rod Parts Double Axles Thread Rolling Machine
APC28-15 Round Die Hydraulic Thread Rolling Machine
APD28-15 Hydraulic Circling Thread Rolling Machine
ASP200/ASP320 Spline Rolling MachineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
