Bi Metal Rivet Contact Making Machine

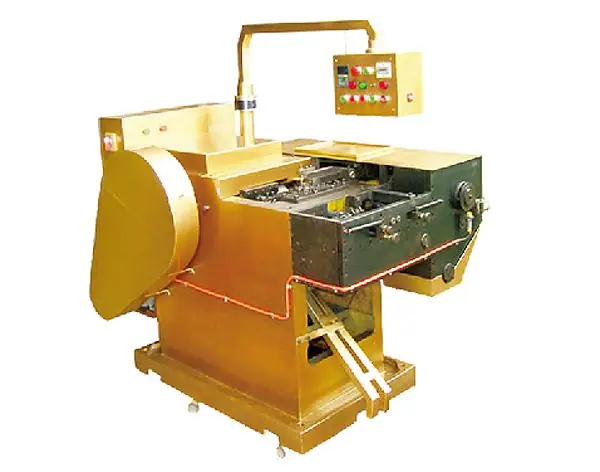

ABM36-3 Tri Metal Rivet and Electrical Contact Machine
The ABM36-3 Tri Metal Rivet and Electrical Contact Machine can produce cold headed solid and bimetal contacts from a wide variety of materials.
- Motor Power3Kw
- Net Weight1800kg
- Dimension(LxWxH)1530x1020x1420mm
- ItemData
- Machine Power3.6kw
- Power Supply380v50hz
- Transducer5.5kw
- Head Dia2-8
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of ABM36-3 Tri Metal Rivet and Electrical Contact Machine
APPLICATION OF THE ABM-5 Bi-metallic contact rivets cold heading machine
• MICRO SWITCH MANUFACTURERS
• AUXILIARY SWITCH MANUFACTURERS
• ROTARY SWITCH MANUFACTURERS
• LIMIT SWITCH MANUFACTURERS
• KNIFE SWITCH MANUFACTURERS
• ROCKER SWITCH MANUFACTURERS
• DOMESTIC SWITCH MANUFACTURERS
• AUTOMOTIVE SWITCH MANUFACTURERS
• RELAYS MANUFACTURERS
• MOTOR STARTER
• SWITCH GEARS MANUFACTURES
• AUTOMOTIVE MANUFACTURES
• AVIATION MANUFACTURES
• APPLIANCES MANUFACTURES
The ABM36-3 Tri Metal Rivet and Electrical Contact Machine can produce cold headed solid and bimetal contacts from a wide variety of materials.
Typical alloys include:
Bi metal and Tri metal electric contact rivets type:
Ag/Cu、FAg/Cu、AgNi/Cu、AgSnO2/Cu、AgSnO2In2O3/Cu、AgCu/Cu、AgZnO/Cu、AgCdO/Cu,etc bi metal composite electrical contact rivets；Ag/Cu/Ag、FAg/Cu/FAg、AgNi/Cu/AgNi、AgSnO2/Cu/AgSnO2、AgSnO2In2O3/Cu / AgSnO2In2O3、AgZnO/Cu/ AgZnO、AgCdO/Cu/AgCdO etc. tri metal composite electrical contact rivets
- Silver
- Fine grained silver
- Silver-Nickel
- Silver-Iron
- Silver-Graphite
- Silver-Cadmium Oxide
- Silver-Tin Oxide
- Gold
- Platinum
- Palladium
Main Technical Parameters of ABM36-3 Tri Metal Rivet and Electrical Contact Machine
| Item |
Data |
|
Motor Power |
3Kw |
|
Machine Power |
3.6kw |
|
Power Supply |
380v50hz |
|
Net Weight |
1800kg |
|
Transducer |
5.5kw |
|
Dimension(LxWxH) |
1530x1020x1420mm |
|
Head Dia |
2-8 |
|
Head Thickness |
Max3 |
|
Shank Dia. |
φ1- φ 4 |
|
Head Silver Layer |
Min 0.25 |
|
Shank Length |
Max9 |
|
Shank Silver Layer |
Min0.4-2.5 |
|
Output |
4000-8000pcs/h |
Related Machines
More From Bi Metal Rivet Contact Making Machine
1-20pcs/pack,1-3 kind/pack screws,nuts,bolts automatic packaging machine
1-3MM High speed steel iron wire nails making machine
1-5000pcs/pack single kind fasteners full automatic packaging machine
1/4″ Toggle anchor bolts making machine
10-20mm fully automatic copper rod processing machine with bending, flattening, cutting and punching
10mm Servo Closed Cut Loop Ring Forming Machine
14mm double chain buckle bending weaving machine
3-6MM High speed steel iron wire nails forming machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
