Bolt Thread Rolling Machine

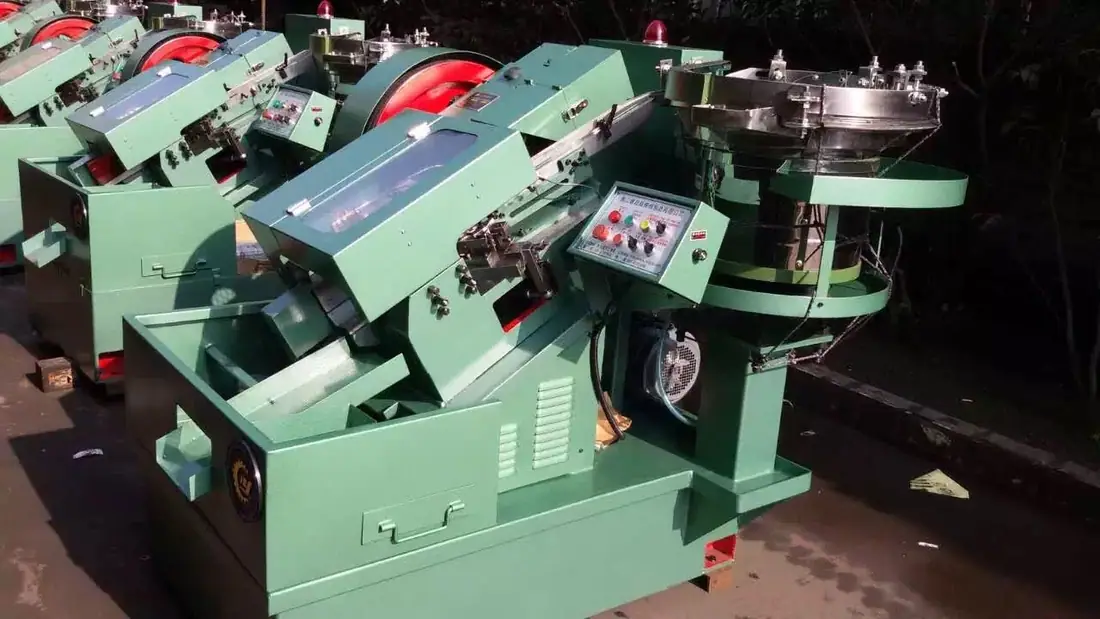

16MM- 5/8″ concrete anchors flat die thread rolling machine
Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one…
- Main Motor)15 KW
- Appro.Weight3 TON
- Appro.Dimension4.5*2.1*1.85 M
- ParametersModel:ARN-16
- Max.Diameter16 MM
- Die Case Height160 MM
- Max.Output60 PPM
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Main functions of 16MM- 5/8″ concrete anchors flat die thread rolling machine:
Main functions of 16MM- 5/8″ concrete anchors flat die thread rolling machine:
Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one dynamic thread rolling plate die and one statics thread rolling plate die , and the form the different thread types by thread rolling plate die different design, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of fully automatic, high production speed and good-stability performance, the output per minute capacity can be up to more than 300pcs, it is most advanced thread rolling machine with higher speed in the current market, which is also suitable for mass thread rolling production for other types screws and bolts.Auto checker system and inverter is optional by customers.
Specificatons of M16 Wedge Anchor Bolt Thread Rolling/Drop In Anchor Bush Knurling Machine
| Parameters | Unit | Model:ARN-16 |
|---|---|---|
| Max.Diameter | MM | 16 |
| Die Case Height | MM | 160 |
| Max.Output | PPM | 60 |
| Main Motor) | KW | 15 |
| Appro.Weight | TON | 3 |
| Appro.Dimension | M | 4.5*2.1*1.85 |
Related Machines
More From Bolt Thread Rolling Machine
10MM-3/8″ concrete wedge-bolt flat die thread rolling machine
12MM wedge anchor bolt automatic feeding thread rolling machine
20MM-3/4″ concrete sleeve anchors automatic thread rolling machine
24MM-1″ stainless concrete wedge anchors thread rolling machine30MM stainless steel concrete wedge anchors flat die thread rolling machine6MM-1/4″ concrete wedge anchor bolts thread rolling machine8MM-5/16″ concrete wedge anchors thread rolling machine
Big plum head ribs cement nail screw thread rolling machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
