Bolt Thread Rolling Machine

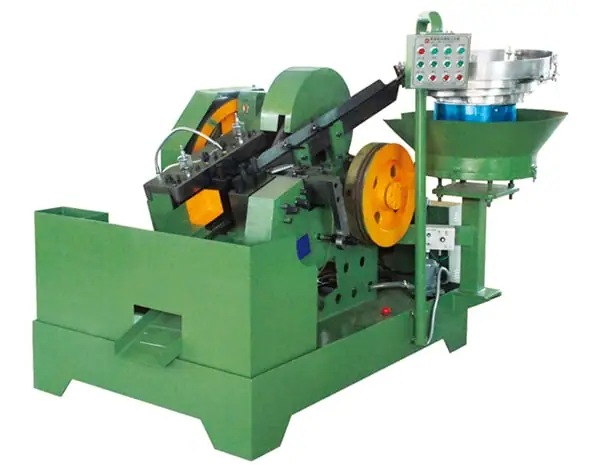

12MM wedge anchor bolt automatic feeding thread rolling machine
Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one…
- Main Motor)7.5 KW
- Appro.Weight1.5 TON
- Appro.Dimension3.1*1.45*1.8 M
- ParametersModel:ARN-12
- Max.Diameter12 MM
- Die Case Height120 MM
- Max.Output65 PPM
- Built by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, China
- More than twenty years experience in cold and hot forging and metal stamping equipment
- Rapid response technical team for operation guidance and production support
Watch Machine Video
Running video of 12MM wedge anchor bolt automatic feeding thread rolling machine:
Main functions of 12MM wedge anchor bolt automatic feeding thread rolling machine:
Main functions of wedge anchor bolt flat die thread rolling machine is to make wedge anchor bolt products happen plastic deformation by press rolling of one dynamic thread rolling plate die and one statics thread rolling plate die , and the form the different thread types by thread rolling plate die different design, it can accurately grinding various standard thread tooth of national standard,ISO,DIN, JIS, ANSI, BS,GB,etc., the machine has the advantages of fully automatic, high production speed and good-stability performance, the output per minute capacity can be up to more than 300pcs, it is most advanced thread rolling machine with higher speed in the current market, which is also suitable for mass thread rolling production for other types screws and bolts.Auto checker system and inverter is optional by customers.
Specificatons of M12 Wedge Anchor Bolt Thread Rolling/Drop In Anchor Bush Knurling Machine
| Parameters | Unit | Model:ARN-12 |
|---|---|---|
| Max.Diameter | MM | 12 |
| Die Case Height | MM | 120 |
| Max.Output | PPM | 65 |
| Main Motor) | KW | 7.5 |
| Appro.Weight | TON | 1.5 |
| Appro.Dimension | M | 3.1*1.45*1.8 |
Advance features of 12MM wedge anchor bolt automatic feeding thread rolling machine:
(1) Newest style,perfect design.High speed and stability fitting your goal of efficiency.Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
(2) Our machines adopt the automatic feeding system with vibrator mode.
(3) The materials transportation bridges are made under 40Cr high frequency quenching condition,so the mateirals could go smoothly and the bridges are abrasion resistant.
(4) The slider of our machines are made of tin bronze alloys imported from Japan,and the sideboard are made of high abrasion-resistant spring steel from Taiwan,so it can be high abrasion-resistant,without any drag force,not generating any heat.
(5) The bearing of our machines are imported from Japan’s NSK,and springs are imported from Japan’s Daido,the lubrication equipments are imported from Taiwan.
(6) The interface of all parts are scraped as per the traditional handwork technology,the space between each position are less than 0.02mm.
(7) Our machines are designed for precise machining of all types of screw thread conforming to the Metric System, Japanese System, American System, etc.
(8)This machine uses high-strength high-quality castings, and the full aging treatment to eliminate residual stress, to ensure long-term accuracy of the host, the life of the punch than similar products and equipment 2-3 times.
(9)The machine is easy to debug maintenance and cleaning.
(10) Key components imported directly from Japan and Taiwan, to ensure high precision equipment, engage in high hardness requirements of wear.
(11) Compact design, high-speed stability. The use of mandatory to the oil concentration system to ensure that the components in the oil film state of operation to ensure that the machine’s long-term durability.

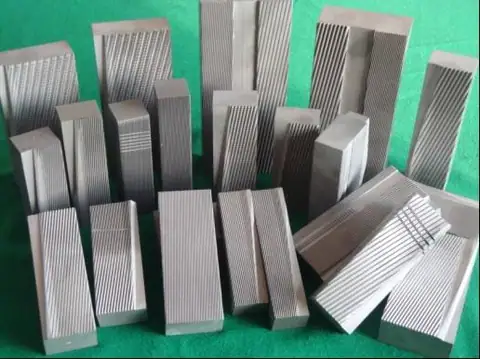

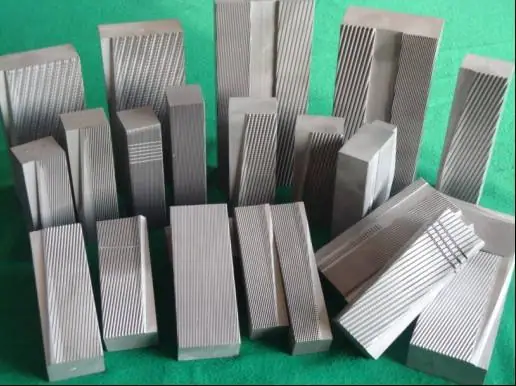

Wedge anchor bolt thread rolling plate die

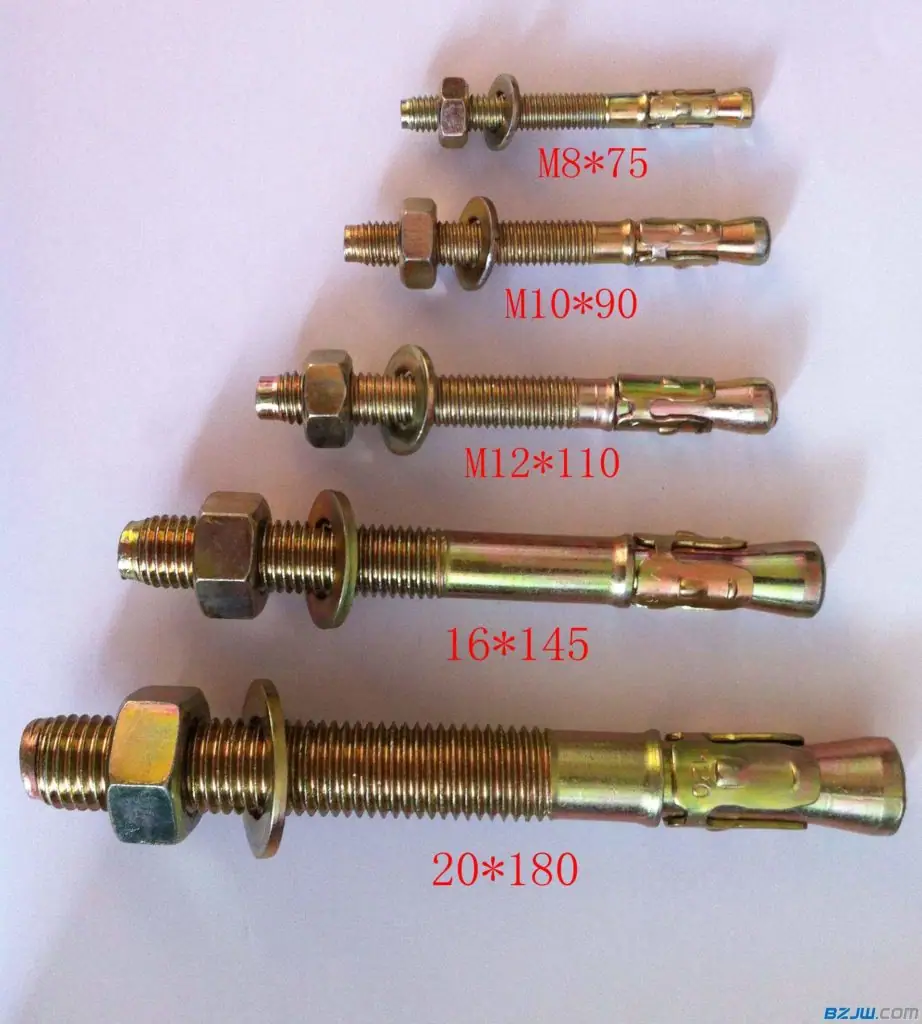

Threaded wedge anchor by thread rolling machine
Related Machines
More From Bolt Thread Rolling Machine
10MM-3/8″ concrete wedge-bolt flat die thread rolling machine
16MM- 5/8″ concrete anchors flat die thread rolling machine20MM-3/4″ concrete sleeve anchors automatic thread rolling machine
24MM-1″ stainless concrete wedge anchors thread rolling machine30MM stainless steel concrete wedge anchors flat die thread rolling machine
6MM-1/4″ concrete wedge anchor bolts thread rolling machine8MM-5/16″ concrete wedge anchors thread rolling machine
Big plum head ribs cement nail screw thread rolling machineQuestions About This Machine
Where Is This Machine Made
It is manufactured by Ningbo Anchors Precision Machinery Co., Ltd. in Ningbo, Zhejiang, China, in our own 18,000 square meters workshop with advanced machining equipment.
What Components Are Used In The Machine
We use the world's advanced technology and well-known brands components to ensure high precision and long working life with reliable performance.
Do You Provide Operator Training
Yes. Our professional rapid response technical team instructs machine operation and helps solve problems occurring during production.
Which Countries Do You Export To
Our equipment has been sold to customers all over the world, including Mexico, India, Turkey, Vietnam, Malaysia and South Africa, and many domestic forging and stamping manufacturers in China also use our machines.
How Do I Get A Quotation
Send us your requirement by WhatsApp on +86 185 5689 5898 or email [email protected]. Tell us the fastener or part you want to produce, the size range and the output you need, and we will advise which machine suits.
Tell Us What You Need To Produce
Send your part drawing, size range and target output and our engineers will advise which machine suits your production.
