SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Strip Light IP68 Glue Filling Waterproof Flex White PCB Tape Light Ideal for UV Curing, Currency Validation, Mosquito Killer, UV Exposure & Medical Field

UV LED Strip

SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Strip Light IP68 Glue Filling Waterproof Flex White PCB Tape Light Ideal for UV Curing, Currency Validation, Mosquito Killer, UV Exposure & Medical Field

UV (Ultraviolet) LED Strip Lights in specail wavelength: 365nm-370nm, 370nm-375nm, 375nm-380nm, 380nm-385nm, 385nm-390nm. The UV LED Lights are mainly used in below applications: Industrial Curing Fluorescence disclosing and verification Air Purification Medical and Biomedical Applications Dermatological Equipment Currency Validation Forensics Equipment Photo Polymerization Spectroscopy Dental Curing and Teeth Whitening Sterilization and Medical DNA Gel

Request A Quote Talk To An Engineer Email Us

Custom builds to your drawing
Small and sample orders accepted
OEM and ODM welcome

Overview

Product Overview

SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Strip Light IP68 Silicon Gel Filling Waterproof Flex White PCB Tape Light Ideal for UV Curing, Currency Validation, Mosquito killer, UV Exposure & Medical Field

UV-LEDs emit invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for brief periods. Do NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UV ” Safety protection for eyes and skin. If you incorporate a UV-LED into a product, be sure to provide WARNING labels.

Highlights

Key Features

Lighting Supply-Belecome
Strip Light Specification
Size(W*H/mm): 8*2
PACKAGE INCLUDE
1x 16.4ft/5m 300LEDs SMD3528 UV LED Strip(Do not include power supply)
1x DC Screw terminal adapter
UV LED Lights Application
UV Printing
UV Curing
UV Nail lamp
UV Mosquito killer lamp
Industrial Curing
Fluorescence disclosing and verification
Air Purification
Medical and Biomedical Applications
Dental Curing and Teeth Whitening
Sterilization and Medical
Warnings and Handling Instructions on UV LED Lights

Technical Data

Specifications

LED Type	UV SMD2835
LED QTY.	60LED/Meter
Input Voltage	12V DC
Wattage (max)	14.4Watt/Meter
Cuttable	Every 3LED per 2” can be cut
Weight	0.15kgs per 5meter per roll
Wavelenght	365nm-370nm, 380nm-385nm, 395nm-400nm
PCB Background color	White
PCB Backing	Double-sided Adhesive backing
Beam Angle	120°
Dimming	PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type	IP33 Non-waterproof(indoor use), IP65 Silicone Gel,IP67 Silicone Tube,IP68 Silicone Gel Filling
Pre-wiring	20cm Red/Black Lead wire at one end of the strip

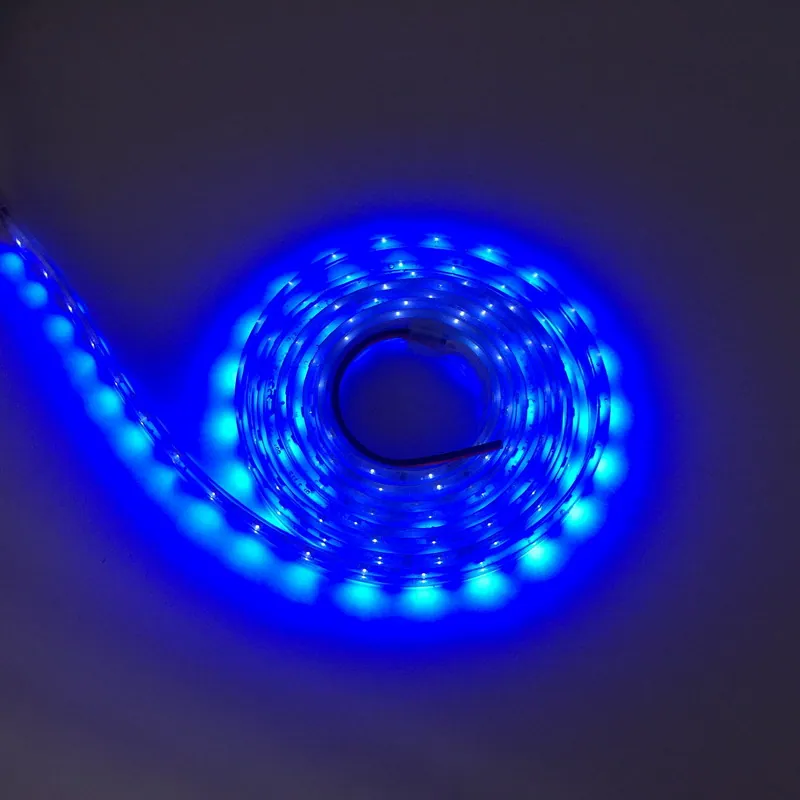

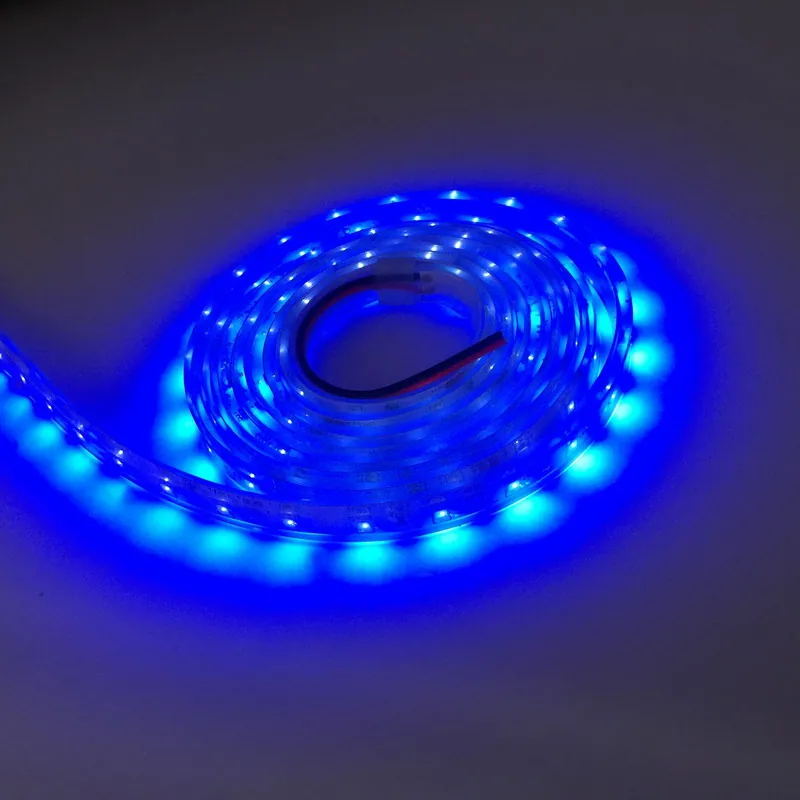

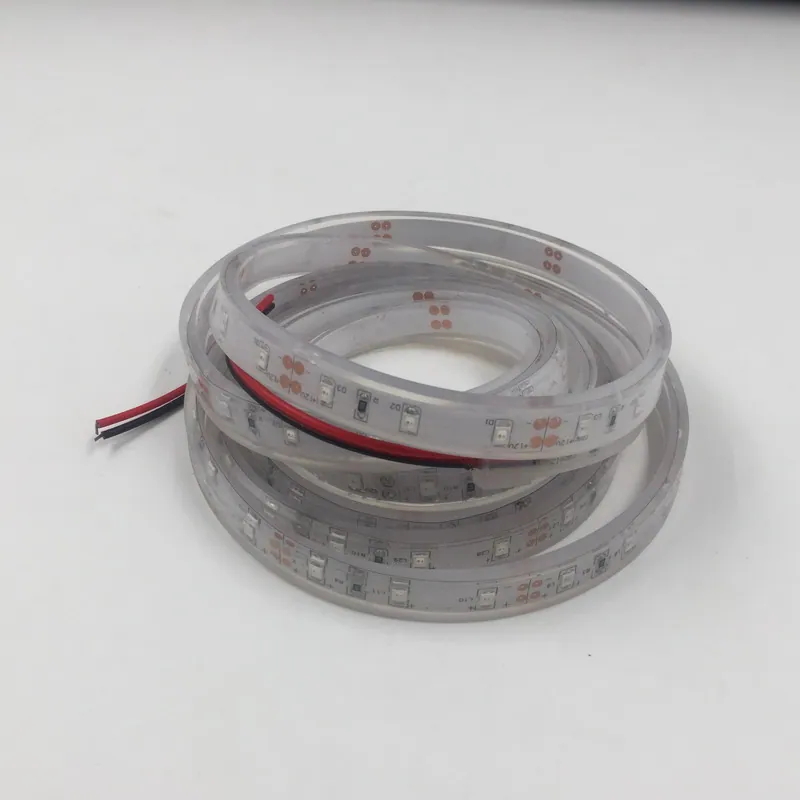

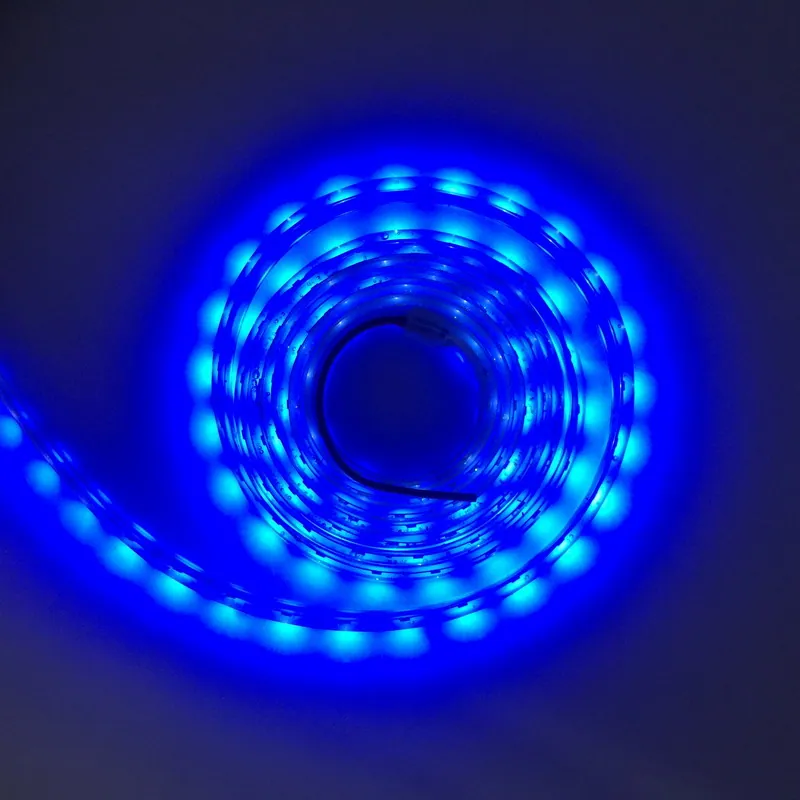

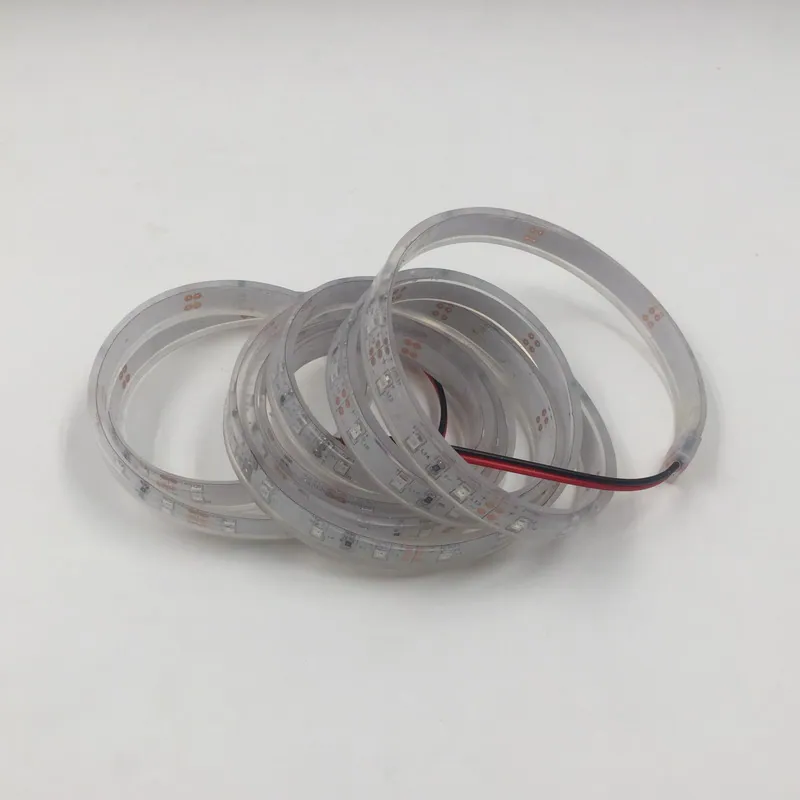

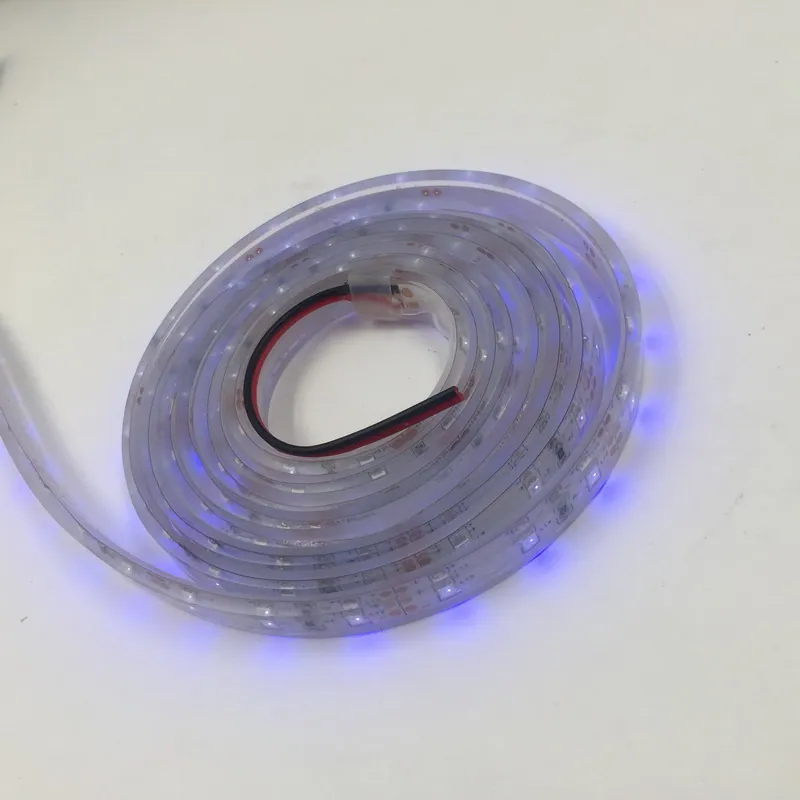

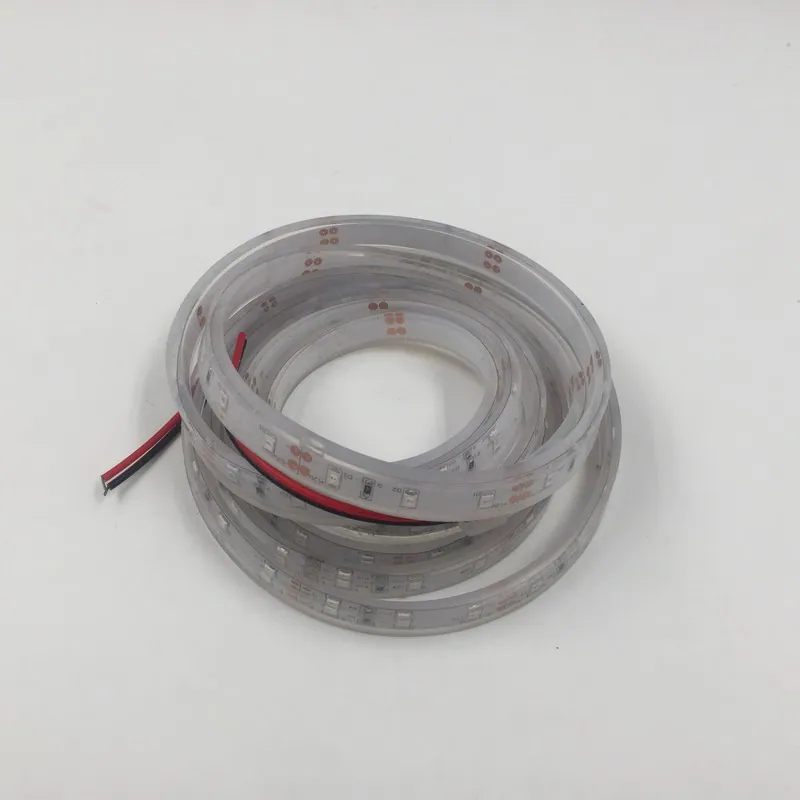

Detail Views

Product Gallery

How We Work

Customisation and Ordering

Made To Your Design

Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.

Small and Sample Orders

Small order quantities and sample orders are accepted, with OEM and ODM production available.

Export Experience

Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.

Frequently Asked Questions

Which LED Is Used?

The light source is UV SMD2835.

What Input Voltage Does SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Stri Work On?

It works on 12V DC.

What Power Options Are Available for SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Stri?

Available power: 14.4Watt/Meter.

What Is the Beam Angle?

The beam angle is 120°.

Is SMD2835-300 12V DC 72W 365nm-390nm UV (Ultraviolet) LED Stri Dimmable?

Dimming: PWM dimmable(more information please refer to different Dimmer applications).

Can This Product Be Customised?

Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.

Do You Accept Small Orders and Sample Orders?

Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.

Which Approvals Do Your Products Carry?

According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
