Neon Lights

Neon Strip Light, IP65 Neon Lights

Neon Strip Light is a flxible led strip light packed with silicone neon tube. Working under DC12V/24V, these neon lights have very good IP rating. Moreover it can reach IP65 and some can be up to IP67. In addition,they are bentable 360 degree with good lighting effects and brightness. So this neon strips often use to make letters for advertisement.

Request A Quote Talk To An Engineer Email Us

Custom builds to your drawing
Small and sample orders accepted
OEM and ODM welcome

Overview

Product Overview

Firstly, Energy saving: The flexible whole-body lamp strip can save more than 80% of energy

Secondly, Soft:neon strip light can withstand squeezing and is made of environmentally friendly Silicone

material, which is not only simple and convenient to install, but also brighter than the

previous glass.The brightness of the neon lamp is more significant than the effect. The

flexible full-body LED light strip can be bent up to 360 degrees, therefore many companies

easily can make various texts,Words and graphics with them.

Thirdly, Longevity and durability: The launch of this new type of Neon LED strip has a life

Highlights

Key Features

Why use neon strip lights?
and consume less electricity, because the light source is LED;
silicone lamp body);
Fourthly, High brightness and good light transmittance: The imported transparent silicone
2835 precision processing, with low efficiency, pure color, and no pollution. The light
3 input voltage :DC12V/24v
4 light source smd2835
5 luminous flux 800LM ± 25lm (measured 12W)
6 color temperature:Cool White 6000K, Warm White 3000K, Natural White 4000K
7 color rendering index: RA > 80
8 Silicone lamp body material
9 IP Rating : IP65
10 working temperature – 25 ℃ – 55 ℃
12 light source life >30000h
13 95% efficiency > 13%
14 drive mode: external DC drive power supply
15 heat dissipation: structure conduction cooling system
16 light attenuation working 1000 hours ＜ 3%, 3000 hours ＜ 5%
17 thermal resistance (TR) ＜ 0.08 ~ 0.1 ℃ / W
25 The safety is in accordance with IEC60598
How to connect neon lights with power supply?
neon light strip for room
neon strip lights for room

Technical Data

Specifications

size	1000×12* 12mm
rated power	12W ± 1W

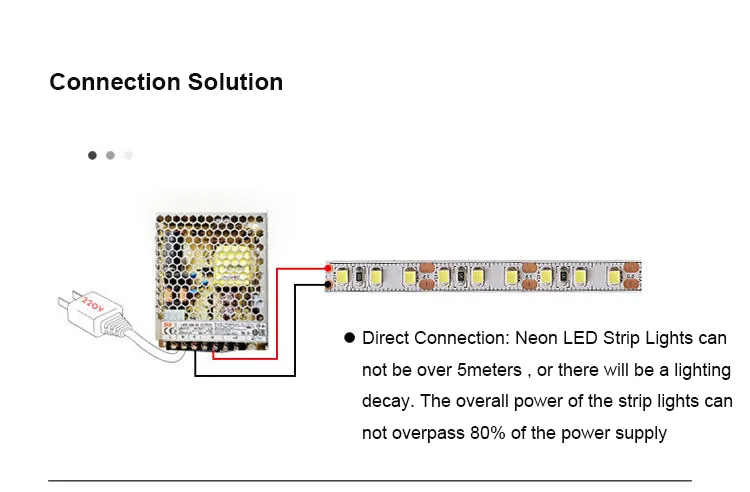

Direct Connection	Neon LED Strip Lights can not be over 5meters , or there will be a lighting decay. The overall power of the strip lights can not overpass 80% of the power supply.

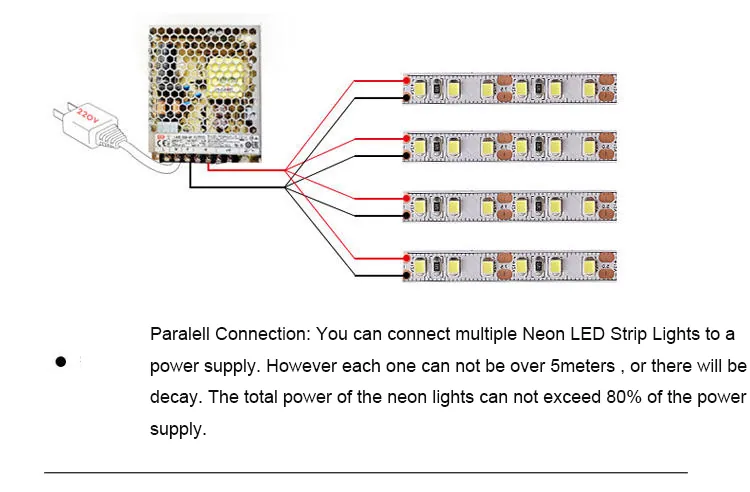

Paralell Connection	You can connect multiple Neon LED Strip Lights to a power supply. However each one can not be over 5meters , or there will be a lighting decay. The total power of the neon lights can not exceed 80% of the power supply.

Detail Views

Product Gallery

Neon Strip Light, IP65 Neon Lights detail 1

Neon Strip Light, IP65 Neon Lights detail 2

Neon Strip Light, IP65 Neon Lights detail 3

Neon Strip Light, IP65 Neon Lights detail 4

Neon Strip Light, IP65 Neon Lights detail 5

Neon Strip Light, IP65 Neon Lights detail 6

Neon Strip Light, IP65 Neon Lights detail 7

Neon Strip Light, IP65 Neon Lights detail 8

How We Work

Customisation and Ordering

Made To Your Design

Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.

Small and Sample Orders

Small order quantities and sample orders are accepted, with OEM and ODM production available.

Export Experience

Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.

Frequently Asked Questions

What Are the Dimensions of Neon Strip Light, IP65 Neon Lights?

The dimensions are 1000×12* 12mm.

Can This Product Be Customised?

Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.

Do You Accept Small Orders and Sample Orders?

Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.

Which Approvals Do Your Products Carry?

According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.

How Do I Get a Quotation?

Send the model, quantity and any drawing or specification to [email protected], or message +86-13824709964 on WhatsApp or WeChat. Office hours are Monday to Thursday 9am to 10pm and Friday to Saturday 9am to 6pm.
