Surface Mounted

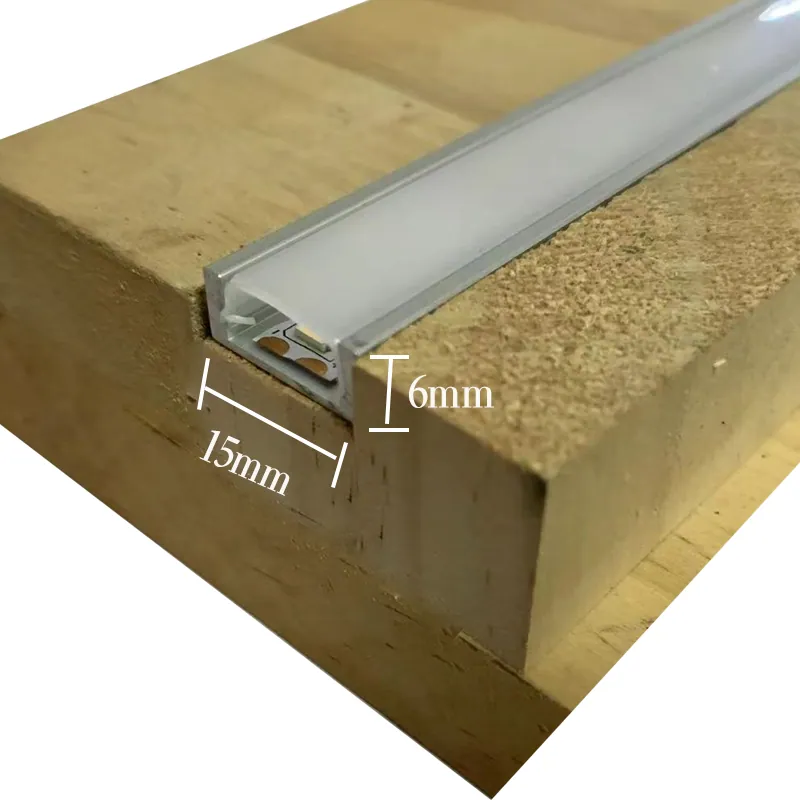

Slim LED Aluminum Channel 15X6mm
Belecome Slim LED Aluminum Channel comes with a ultra thin size 15x6mm. Rigid construction of anodized aluminum without flange for both recessed and surface mount LED lighting projects,perfect protection for LED strips.
- Custom builds to your drawing
- Small and sample orders accepted
- OEM and ODM welcome
Overview
Product Overview

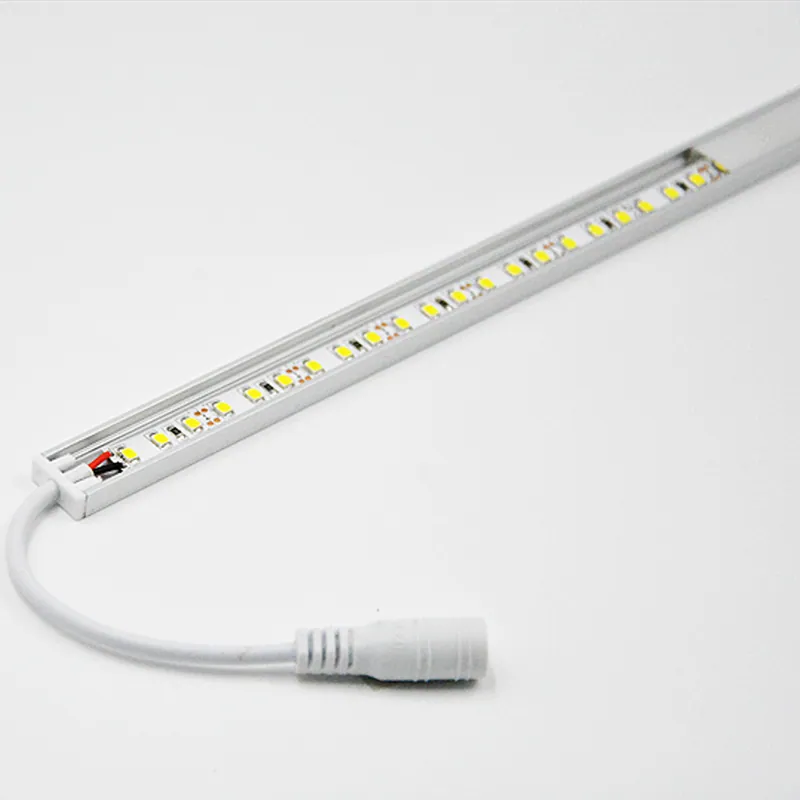

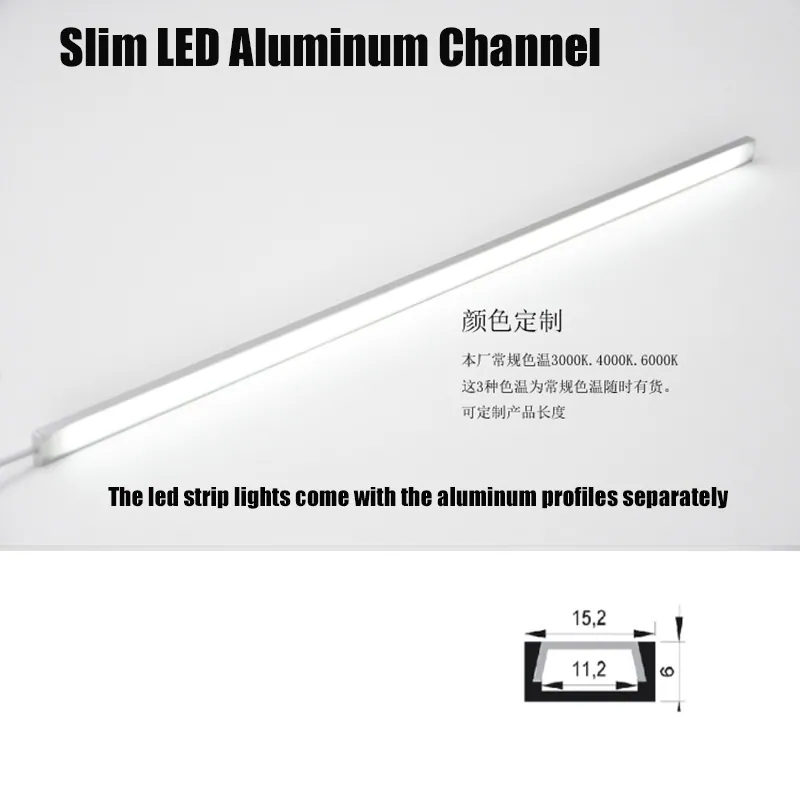

Belecome Slim LED Aluminum Channel comes with a ultra thin size 15x6mm. Rigid construction of anodized aluminum without flange for both recessed and surface mount LED lighting projects,perfect protection for LED strips. Belecome 1506 led aluminum profile has different length for choice from 1meters-3meters. This aluminum profile can work well with DC12V 2835 120led/m led strip lights. We provide it with aluminum profile separately.
Highlights
Key Features
- Item No,: SC-SMD2835X120F-V12
- CRI>80Ra
- BELECOME LIGHTING

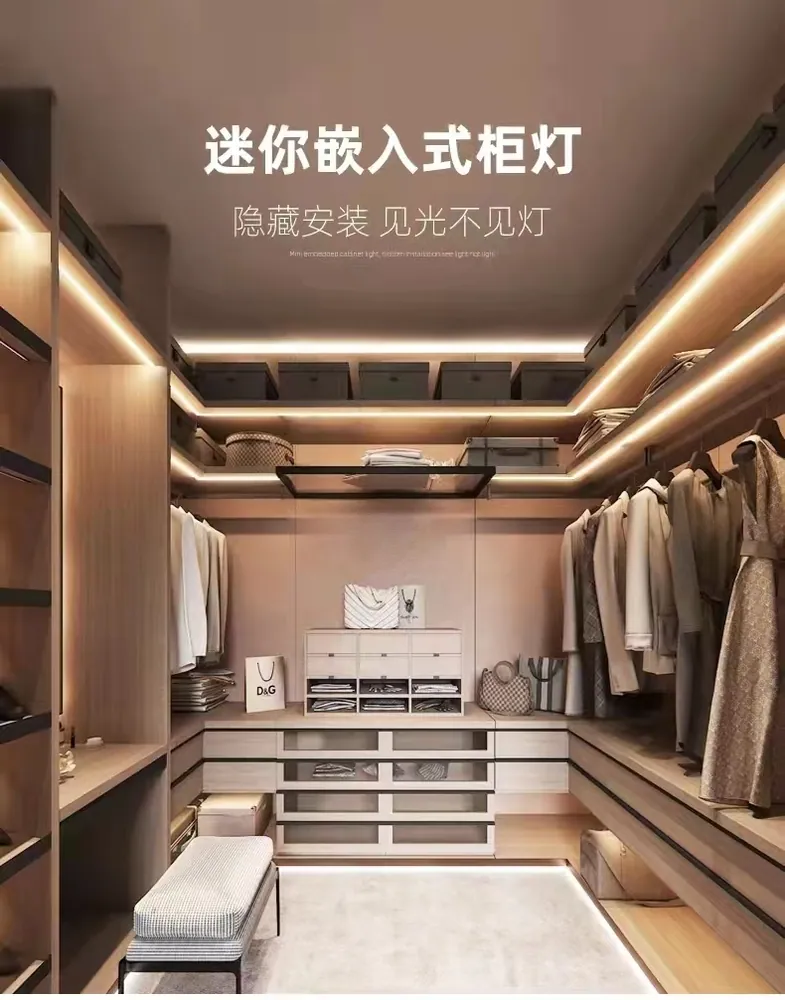

- your wardrobe
- Bookshelf

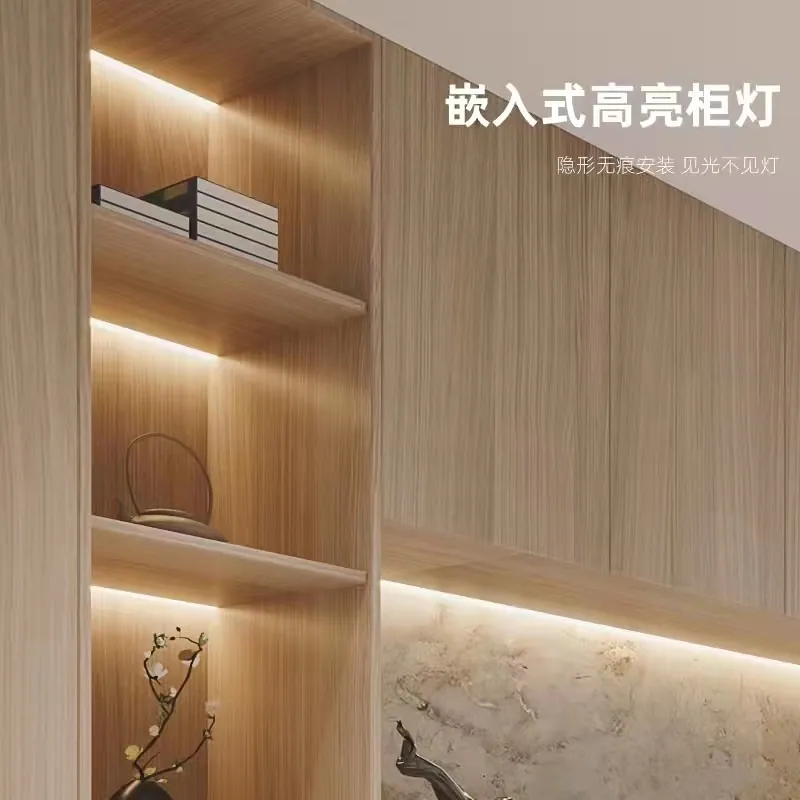

- Ceilling, wall or wine cabinet everywhere
Technical Data
Specifications
| Configuration | U-Shape |
|---|---|
| LED Strip Width | 8-10mm |
| Channel Finish | Anodized Extruded aluminum |
| Cover Material | Frosted Plastic |
| Length | 0-3meter |
| LED Type | SMD2835 |
| LED QTY. | 120LED/Meter 600led 5m 16.4ft |
| Input Voltage | 12V DC |
| Wattage (max) | 14Watt/Meter |
| Cuttable | Every 6LED a unit can be cut |
| Lumen Flux | 100LM/W 1400lm/meter |
| CCT | Cool White 6000-6500K Warm White: 3000-3500K |
| PCB Width | 8mm |
Detail Views
Product Gallery
How We Work
Customisation and Ordering
Made To Your Design
Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.
Small and Sample Orders
Small order quantities and sample orders are accepted, with OEM and ODM production available.
Export Experience
Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.
Frequently Asked Questions
Which LED Is Used?
The light source is SMD2835.
What Input Voltage Does Slim LED Aluminum Channel 15X6mm Work On?
It works on 12V DC.
What Power Options Are Available for Slim LED Aluminum Channel 15X6mm?
Available power: 14Watt/Meter.
Which Colour Temperatures Are Available?
Available colour temperature: Cool White 6000-6500K Warm White: 3000-3500K.
Can This Product Be Customised?
Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.
Do You Accept Small Orders and Sample Orders?
Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.
Which Approvals Do Your Products Carry?
According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
