Surface Mounted
LED Aluminum Channel 35X35mm

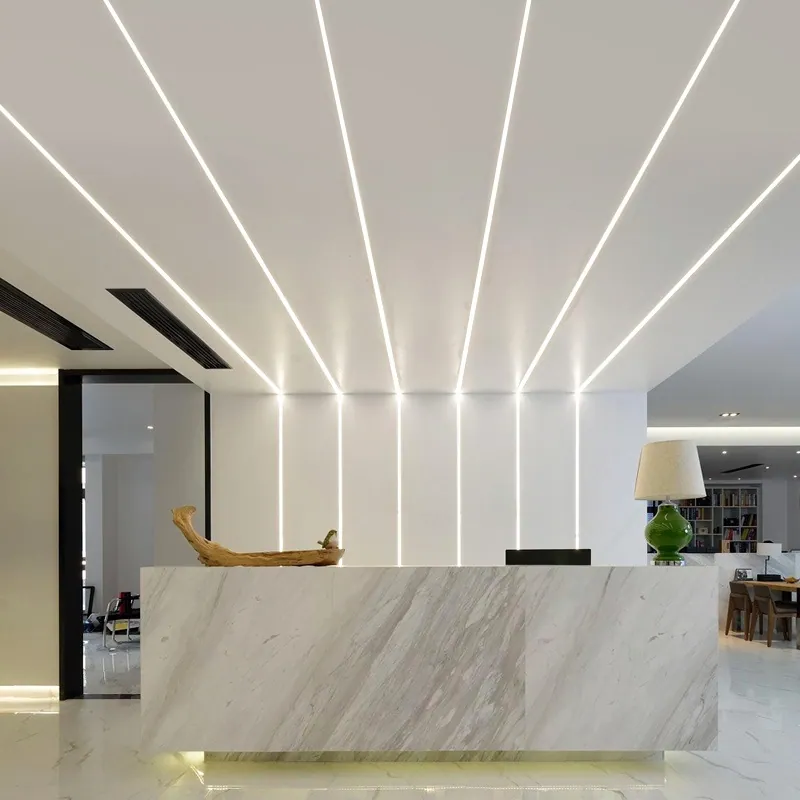

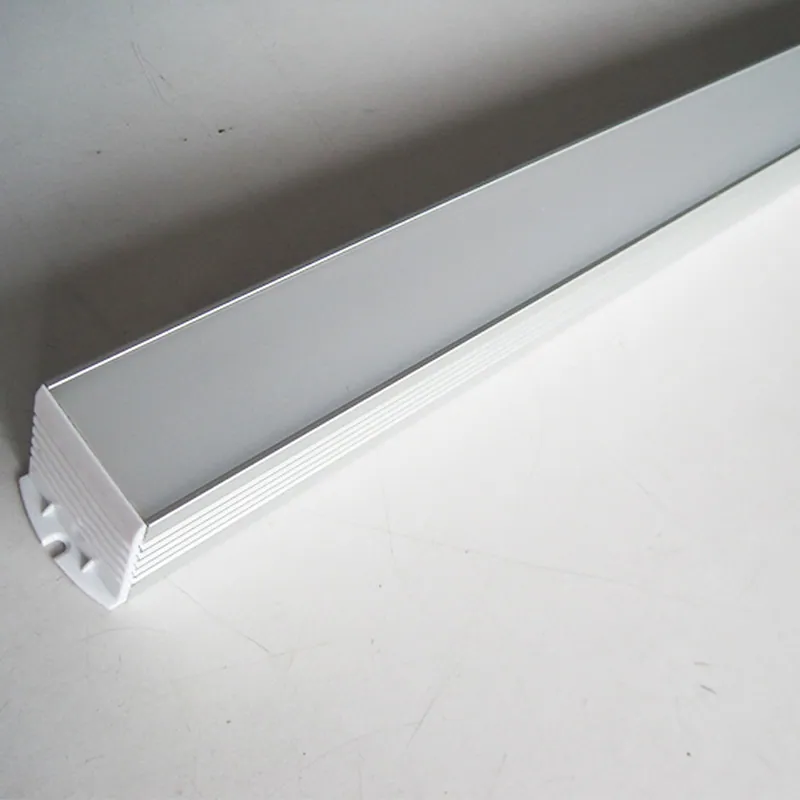

LED Aluminum Channel 35X35mm is made from high quality aviation aluminum profile. It comes with a milky diffuser. You can mount on the ceiling as a ceiling linear lighting or on the wall as a wall sconce. You also can burry it on the ground as a underground lighting.
- Custom builds to your drawing
- Small and sample orders accepted
- OEM and ODM welcome
Overview
Product Overview

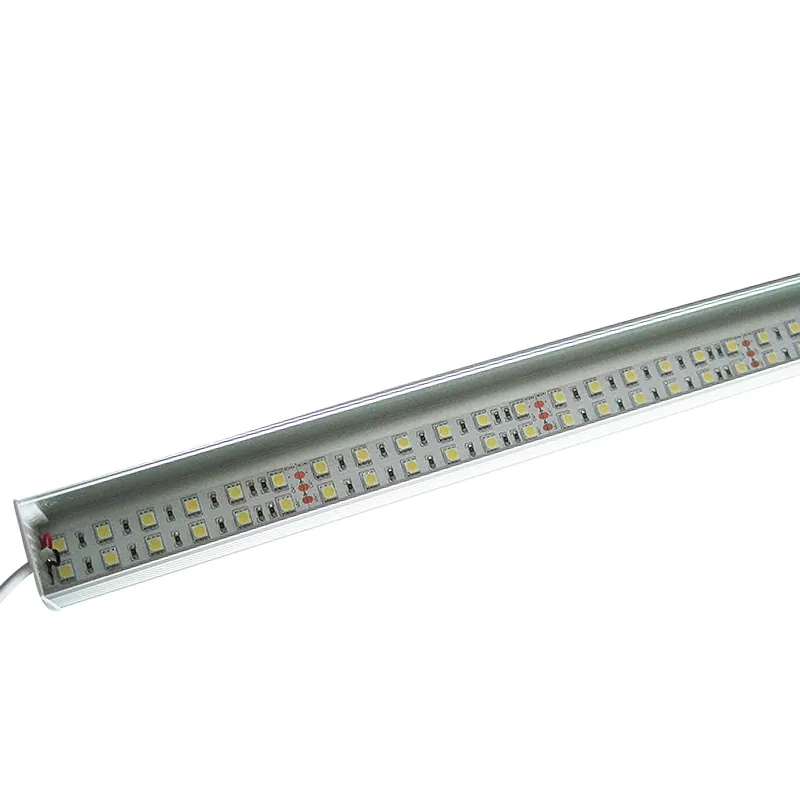

LED Aluminum Channel 35X35mm is made from high quality aviation aluminum profile. It comes with a milky diffuser. You can mount on the ceiling as a ceiling linear lighting or on the wall as a wall sconce. You also can burry it on the ground as a underground lighting. In addition, recessing in the ceiling or in the wall or ground is also a good choice. 3535 led aluminum profile comes with 15mm wide DC24V 2835 240led led strip lights. Each meter about 24W and 2160lm-2400lm per meter so that there is no dark part from the diffuser. It is really a good accent lighting.
Highlights
Key Features
- Item No,: SC-SMD2835X240F-V24
- CRI>80Ra
- BELECOME LIGHTING
Technical Data
Specifications
| Configuration | U-Shape |
|---|---|
| LED Strip Width | 15-30mm |
| Channel Finish | Anodized Extruded aluminum |
| Cover Material | Frosted Plastic |
| Length | 0-3m |
| Suitable LED Strip Lights | DC24V 2835 240led per meter Specification: |
| LED Type | SMD2835 |
| LED QTY. | 240LED/Meter 1200led 5m 16.4ft |
| Input Voltage | 24V DC |
| Wattage (max) | 24Watt/Meter |
| Cuttable | Every 12LED a unit can be cut |
| Lumen Flux | 100LM/W |
| CCT | White 6000-6500K Warm White: 3000-3500K |
| PCB Width | 15mm |
Detail Views
Product Gallery
How We Work
Customisation and Ordering
Made To Your Design
Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.
Small and Sample Orders
Small order quantities and sample orders are accepted, with OEM and ODM production available.
Export Experience
Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.
Frequently Asked Questions
Which LED Is Used?
The light source is SMD2835.
What Input Voltage Does LED Aluminum Channel 35X35mm Work On?
It works on 24V DC.
What Power Options Are Available for LED Aluminum Channel 35X35mm?
Available power: 24Watt/Meter.
Which Colour Temperatures Are Available?
Available colour temperature: White 6000-6500K Warm White: 3000-3500K.
Can This Product Be Customised?
Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.
Do You Accept Small Orders and Sample Orders?
Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.
Which Approvals Do Your Products Carry?
According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
