Magnetic Track Light

Magnetic Floodlight 30W

Magnetic LED Flood Light is the most common and most popular led source in the magnetic track lighting system. Because its wide lighting viem and soft light.

Request A Quote Talk To An Engineer Email Us

Custom builds to your drawing
Small and sample orders accepted
OEM and ODM welcome

Overview

Product Overview

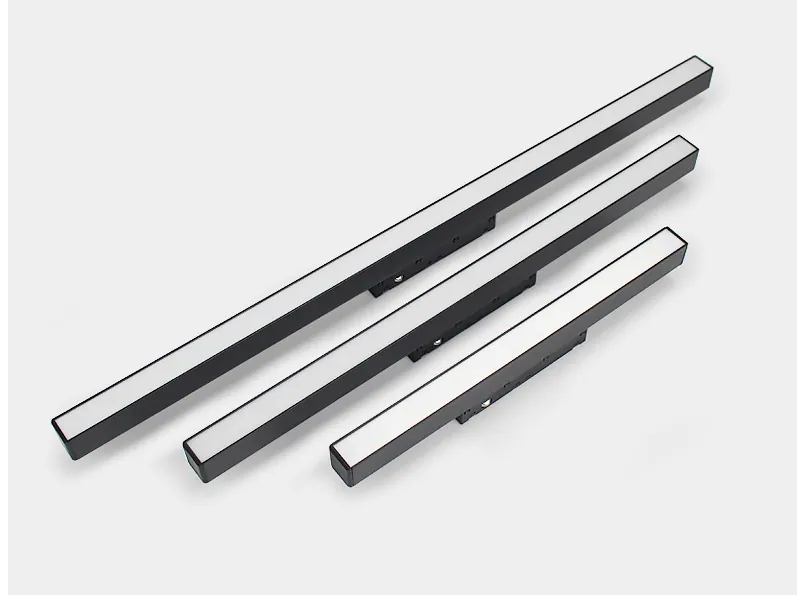

Magnetic LED Floodlight is the most common and most popular led source in the magnetic track lighting system. Because its wide lighting viem and soft light. Therefore led flood lights are often the general lighting euquipped in the large area, such as living room , meeting room or office. In addition, this magnetic flood light comes with 4 different dimenions: 1ft / 2ft / 3ft / 4ft. It looks more modern and good-looking than T8 tube light.

Highlights

Key Features

CRI>90Ra
SDCM<5
Life Span>50000HRS
Efficiency>87%

Technical Data

Specifications

Item No.	SC-MGF-03
Power	30W
Dimension	L907W22H25mm
Working Voltage	AC85-265V
Output Voltage	DC48V
LED Chip Brand	Osram led chip
Driver	Meanwell led driver DC48V
Installation	attached to the track
Lumen Flux	2700-3000LM
Material	Aluminum
Finish	Black/white
Beam Angle	120°
IK Rate	IK07
IP Rating	IP24 Indoor using
Dimmable	support 0-10V /DALI or Zigbee
Working Temperature	-25℃～+50℃
Storage Temperature	-30℃～+55℃
Standard	US/AU/EU Standard
Warranty	2/3 years

Detail Views

Product Gallery

How We Work

Customisation and Ordering

Made To Your Design

Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.

Small and Sample Orders

Small order quantities and sample orders are accepted, with OEM and ODM production available.

Export Experience

Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.

Frequently Asked Questions

What Is the Model Number of Magnetic Floodlight 30W?

The item number is SC-MGF-03.

What Power Options Are Available for Magnetic Floodlight 30W?

Available power: 30W.

What Are the Dimensions of Magnetic Floodlight 30W?

The dimensions are L907*W22*H25mm.

What Input Voltage Does Magnetic Floodlight 30W Work On?

It works on AC85-265V.

What Is the Output Voltage?

The output voltage is DC48V.

Can This Product Be Customised?

Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.

Do You Accept Small Orders and Sample Orders?

Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.

Which Approvals Do Your Products Carry?

According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
