Magnetic Track Light

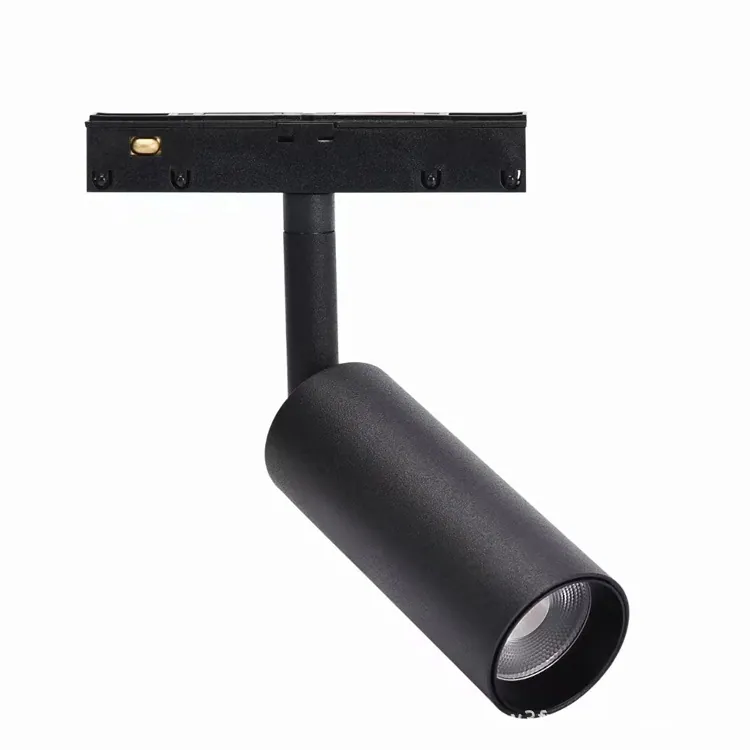

LED Track Light 30W

Magnetic LED Track Light 30W will bring you a wow feel into your space since its big enough light and nice CRI. This led track lighting can be adjuctable.

Request A Quote Talk To An Engineer Email Us

Custom builds to your drawing
Small and sample orders accepted
OEM and ODM welcome

Overview

Product Overview

Magnetic LED Track Light 30W will bring you a wow feel into your space since its big enough light and nice CRI.Actually there is no difference between magnetic track led spot light and traditional led track light. If any, just the magnetic track head. Magnetic track spotlight often appears in coffee shop, shopping center, stores or some places in need of accent lighting mostly. In addition, more and more led spotlights also show up in the home decoration as decorative lighting.

It can work at DC36V/48V, with a narrow 24° or 36° lens. Honeycomb grille shade also avialable.

Highlights

Key Features

CRI>90Ra
SDCM<5
Life Span>50000HRS
Efficiency>87%

Technical Data

Specifications

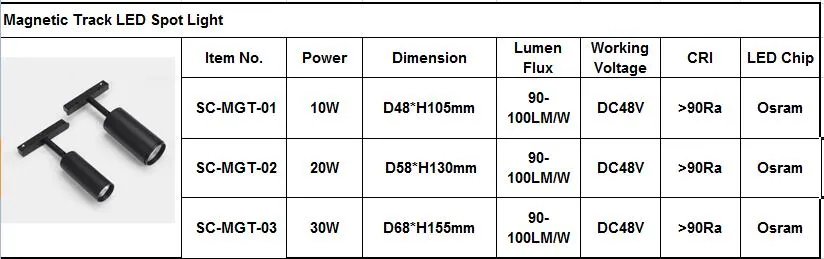

Item No.	SC-MGT-03
Power	30W
Dimension	D68*H155mm
Output Voltage	DC48V
LED QTY	1PCS
LED Chip Brand	Osram led chip
Driver	Meanwell led driver DC48V
Installation	attached to the track
Lumen Flux	2700-3000LM
Material	Aluminum
Finish	Black/white
Beam Angle	120°
IK Rate	IK07
IP Rating	IP24 Indoor using
Dimmable	support 0-10V /DALI or Zigbee
Working Temperature	-25℃～+50℃
Storage Temperature	-30℃～+55℃
Standard	US/AU/EU Standard
Warranty	2/3 years

Detail Views

Product Gallery

How We Work

Customisation and Ordering

Made To Your Design

Seven Colors Lighting makes products to your design, drawing or idea. Send a sketch or a specification and the team will work it out.

Small and Sample Orders

Small order quantities and sample orders are accepted, with OEM and ODM production available.

Export Experience

Most products carry CE, ROHS, PSE, SAA and ETL approval and are exported to more than 30 countries and regions.

Frequently Asked Questions

What Is the Model Number of LED Track Light 30W?

The item number is SC-MGT-03.

What Power Options Are Available for LED Track Light 30W?

Available power: 30W.

What Are the Dimensions of LED Track Light 30W?

The dimensions are D68*H155mm.

What Is the Output Voltage?

The output voltage is DC48V.

Which LED Is Used?

The light source is Osram led chip.

Can This Product Be Customised?

Yes. Seven Colors Lighting states that customising is available for any product and that items can be made to your design, drawing or idea.

Do You Accept Small Orders and Sample Orders?

Yes. Seven Colors Lighting accepts small orders and sample orders, along with OEM and ODM work, and states that small order quantities can still get a good price.

Which Approvals Do Your Products Carry?

According to Seven Colors Lighting, most of its products have CE, ROHS, PSE, SAA and ETL approval, and are exported to more than 30 countries and regions including the USA, Japan, Australia, Canada, Italy and Germany.
