5KW 10KW Off Grid Solar Inverter with MPPT

Name: Off Grid Solar Inverter 5KW 10KW for Solar Home System
Brand: WeBright Solar

Product Overview

What This Product Is

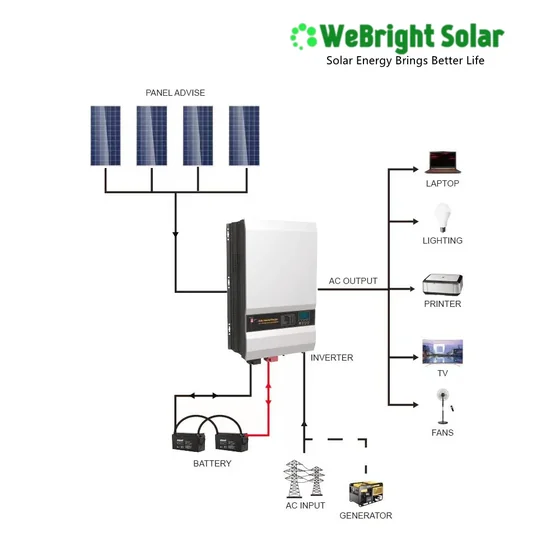

A 5KW to 10KW off-grid solar inverter designed for standalone homes without grid access. It combines inverter, MPPT solar charge controller, and battery charger in one unit. The system supports 24V or 48V battery voltage, with selectable input voltage and output frequency. It includes a smart LCD display for user settings, built-in MPPT efficiency up to 98%, and optional Wi-Fi or USB monitoring. The inverter provides pure sine wave output and can start electric motors up to 5HP.

Key Benefits

What You Get

All-in-one unit reduces need for separate inverter and controller
Built-in MPPT charge controller with up to 98% efficiency
Supports battery charging from solar, AC, or generator input

Pure sine wave output suitable for sensitive electronics and motors
Smart LCD display allows real-time monitoring and user-configurable settings
Optional Wi-Fi or USB monitoring for remote system tracking

Who It Is For

Buyers and Sites

Solar installers building complete off-grid systems from a single unit
EPC contractors delivering turnkey solar power solutions
Electrical wholesalers supplying off-grid components in bulk
Homeowners in remote locations seeking a reliable power source
Importers sourcing integrated solar inverters for unstable-grid markets

Application Scenarios

Where It Is Installed

Homes in remote areas with no utility power connection
Rural villas with unreliable or intermittent grid supply
Off-grid cabins or farmhouses requiring continuous power
Replacement of diesel generators with solar-powered backup
Solar home systems where space and wiring simplicity are critical

Problems It Solves

What This Removes From the Job

Separate inverter and charge controller units that must be matched on voltage and communication
Missing or incompatible charge controller settings that prevent battery charging
Inverter not capable of starting motor loads due to low surge capacity
No real-time monitoring or remote access to system performance
Manual configuration errors due to lack of user-friendly interface

Technical Features

How It Is Built

All-in-one off-grid inverter with MPPT solar charge controller
Built-in MPPT efficiency up to 98% at 80A, 100A, or 200A input
Pure sine wave output with 220V / 230V / 240VAC selectable RMS
Output frequency 50Hz or 60Hz ± 0.3Hz, with ±10% RMS tolerance

Inverter peak efficiency >85% for 5KW model, >88% for 10KW model
Line mode efficiency >95% for continuous operation
Surge rating up to 30000VA for 10KW model

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

System Power	5KW
Battery Voltage	24V or 48VDC
Inverter Output	220V / 230V / 240VAC RMS, 50Hz or 60Hz
Surge Rating	15000VA for 5KW model
MPPT Input	80A / 100A / 200A selectable
MPPT Efficiency	Up to 98%
Maximum Charge Current	140Amp DC
AC Charger Input	40A breaker for 5KW model
Bypass Mode	Pure sine wave output, same as input
Transfer Time	20ms (max)
Idle Consumption	<30W when power saver on
Waveform	Pure sine wave
Output Frequency	50Hz / 60Hz ± 0.3Hz
Power Factor	1.0
Inverter Efficiency	>88% peak for 10KW model
Generator Compatibility	Supports AGS and BTS port
Monitoring	WIFI optional, USB available

Configuration

What Is in the Shipment

The packing list follows this table item by item.

MODEL	WS-PV35-4K	WS-PV35-5K	WS-PV35-6K	WS-PV35-8K	WS-PV35- 10K	WS-PV35- 12K
Nominal Battery System Voltage	24V	48V	24V	48V	48V	48VDC	48VDC	48VDC
Rated power	4KW	5KW	6KW	8.0KW	10.0KW	12.0KW
Surge rating	12000VA	15000VA	18000VA	24000VA	30000VA	36000VA
Capable of starting electric motor	2HP	2HP	3HP	4HP	5HP	6HP
Waveform	Pure sine wave / same as input (bypass mode)
Nominal output voltage RMS	220V / 230V / 240VAC (±10%RMS)
Output frequency	50Hz / 60Hz ± 0.3Hz
Inverter effciency(peak)	>85%	>88%
Line mode efficiency	>95%
Power factor	1.0
Typical transfer time	20ms(max)
Voltage	230VAC
Selectable voltage range	90-280 VAC (APL)
Frequency range	50Hz / 60Hz
Low battery voltage cutoff	20-24VDC for 24VDC mode (40-48VDC for 48VDC mode)
Low battery voltage recover	21-25VDC for 24VDC mode (42-50VDC for 48VDC mode)
High battery voltage cutoff	30VDC for 24VDC mode (60VDC for 48VDC mode)
High battery voltage recover	28.5VDC for 24VDC mode (57VDC for 48VDC mode)
Idle consumption-search mode	<30W when power saver on	<80W when power saver on
Output voltage	Depends on battery type
Charger AC input breaker rating	40A	40A	50A	80A	80A	80A
Overcharge protection S.D.	31.4VDC for 24VDC mode (62.8VDC for 48VDC mode )
Maximum charge current	80A	60A	100A	70A	80A	100A	120A	140A
Continuous output power	Yes Variances in charging voltage & S.D. voltage base on the battery temperature
Input voltage waveform	Sine wave (grid or generator)
Nominal input frequency	50Hz or 60Hz
Overload protection (SMPS Load)	Circuit breaker
Output short circuit protection	Circuit breaker
Bypass breaker rating	40A	63A	63A	63A
Max bypass current	40Amp	80Amp
Maximum PV charge current	80A	100A(200A optional)
DC voltage	24V / 48V Auto work	48V
Maximim PV array power	2000W	4000W	2000W	4000W	4000W	5000W(10000W for 200A optional)
MPPT range @ operating voltage(VDC)	32-145VDC for 24V mode,64-145V for 48V mode	64~145VDC
Maximum PV array open circuit voltage	145VDC
Maximum effciency	>98%
Standby power consumption	<2W
Mounting	Wall mount
Dimensions (WHD)	620385215mm	670410215mm
Net weight (solar CHG) (kg)	36	41	41	69+2.5	75.75+2.5	75.75+2.5
Shipping dimensions (WHD)	755515455mm	884618443mm
Shipping weight (Solar CHG) (kg)	56	61	64	82.5+2.5	89+2.5	92+2.5
Operation temperature range	0°C to 40°C
Storage temperature	-15°C to 60°C
Audible noise	60dB MAX
Display	LED+LCD
Loading (20GP/40GP/40HQ)	140pcs / 280pcs / 320pcs

Materials

What It Is Made Of

Copper transformer inside the inverter unit
High-efficiency MPPT controller with digital control circuit
LCD display with tactile buttons for user input
Enclosure made of flame-retardant plastic or metal housing
Internal circuit breakers and protection relays for overcurrent and short circuit

Manufacturing and Preparation

Before It Ships

Select battery voltage (24V or 48V) and system power (5KW or 10KW) at order stage
Configure settings via LCD display: charge current, voltage, priority mode
Connect solar array to MPPT input with proper polarity and grounding
Link battery bank to inverter terminals with correct voltage and polarity
Connect AC load to inverter output, ensuring load does not exceed rated power
Test system under load with motor start-up and monitor for faults

Quality Control

Checked Before Packing

Inverter powered up and tested under full load before packing
MPPT efficiency verified at 80A, 100A, and 200A input levels
LCD display checked for responsiveness and correct parameter display
Battery voltage cutoff and recovery settings validated for 24V and 48V modes
Bypass mode tested with external AC input to confirm pure sine wave output

Customisation

What Can Be Changed at Order Stage

Battery voltage selected as 24V or 48VDC at order stage
MPPT current rated at 80A, 100A, or 200A based on solar array size
Output voltage set to 220V, 230V, or 240VAC based on regional standard

Output frequency set to 50Hz or 60Hz depending on local grid requirements
Monitoring option selected: Wi-Fi (optional) or USB interface
AC charger input breaker rated at 40A, 50A, or 80A based on model

Comparison

How It Compares With the Alternatives

Separate inverter and charge controller	Single unit reduces wiring complexity and integration risk
Grid-tie inverter	Designed for off-grid use with battery charging and no grid dependency
Basic off-grid inverter	Includes MPPT and smart LCD for better solar harvest and user control
Inverter with no monitoring	Offers Wi-Fi or USB for remote tracking and diagnostics

Use Guide

Getting It Working on Site

Set battery voltage to 24V or 48V before connecting the battery bank

Ensure solar array voltage stays within the MPPT input range for the selected model

Configure charge current and voltage via LCD based on battery type

Connect AC loads only after confirming inverter is in inverter mode

Test motor loads with a gradual start to verify surge capacity

Enable power saver mode when the system is idle to reduce standby loss

Go Deeper

Others in Off Grid Solar Inverter

Blue wall-mounted solar inverter with black side mounting brackets and a digital display panel on the lower front.

Solar Power Supply Equipment

Off Grid Solar Inverter 3KW 110V/220V Split Phase for Solar System

Off Grid/Stand-alone Type With Cooper Transformer inside 110V/220V Available by Setting Pure Sine Wave With MP

View product →

FAQ

Questions About the Off Grid Solar Inverter 5KW 10KW for Solar Home System

What battery voltage does this inverter support?

It supports 24VDC or 48VDC battery systems, selected at order stage.

Can I use this inverter with a 12V battery bank?

No. The inverter is designed for 24V or 48V battery systems only.

Does the inverter include an MPPT charge controller?

Yes. It has a built-in MPPT solar charge controller with 80A, 100A, or 200A options.

What is the maximum motor size it can start?

It can start electric motors up to 5HP on a single phase.

Is Wi-Fi monitoring included?

Wi-Fi monitoring is optional. It is available as an add-on feature.

Can I charge the battery from AC and solar at the same time?

Yes. The inverter supports simultaneous charging from solar and AC input.

How is the system protected against overvoltage?

It has high battery voltage cutoff and recovery thresholds, plus short circuit and overload protection.
