Carport Solar PV Mounting System Structure

Name: Carport Solar PV Mounting System Structure
Brand: WeBright Solar

Carport Bracket/Ground Bracket Material: Aluminum Alloy/ PosMAC Slope: Any Wind Load: 40-60m/s 10years, 25years Service Life Customized Design Service

Request A Quote Email Us

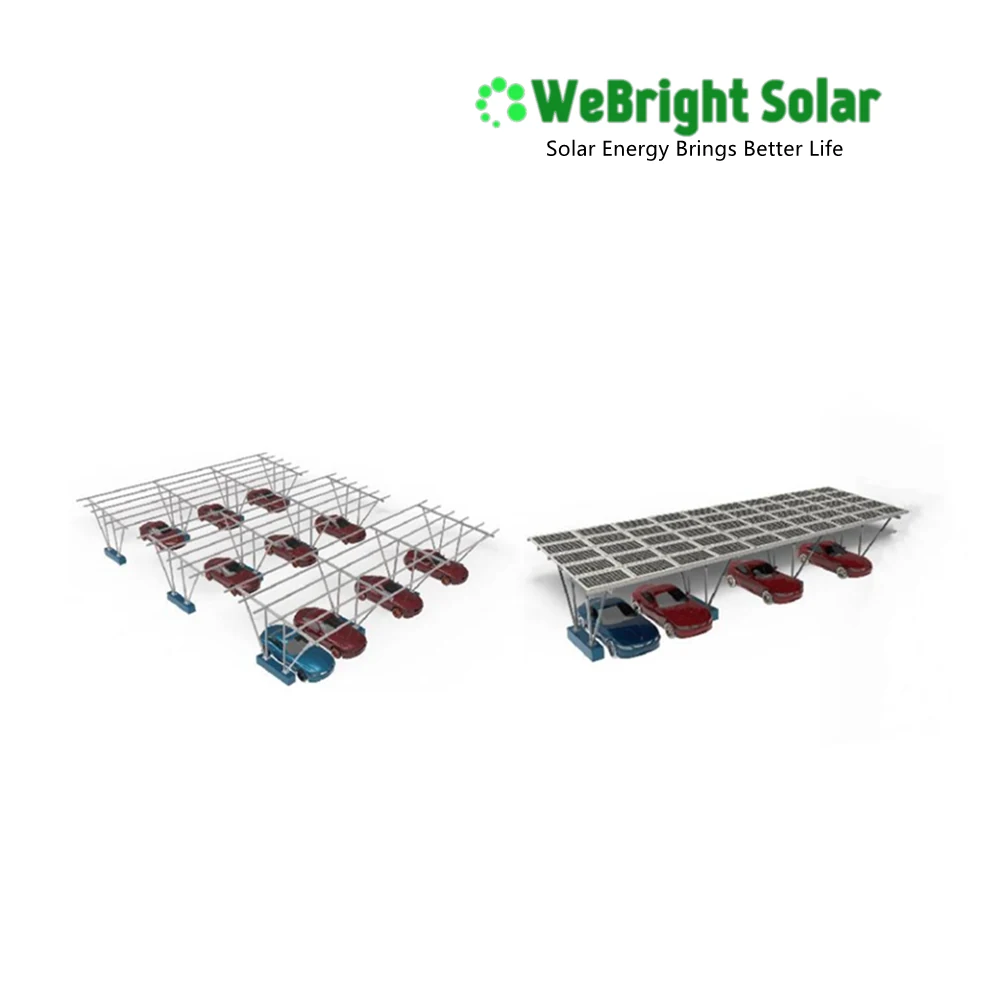

3D render of solar panel carport structures with cars parked underneath

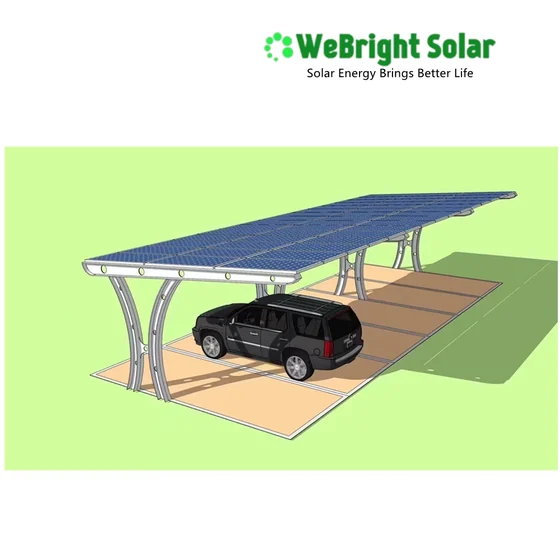

3D rendering of a solar panel carport structure sheltering a black SUV.

Digital rendering of two solar panels standing vertically against a white background.

Product Overview

What This Product Is

A ground-mounted or carport solar mounting structure made from AL6063-T5, SUS304, or PosMAC material, designed for flat or pitched roof, soil or cement ground installation. The system is lightweight, corrosion-resistant, and built to withstand wind speeds up to 45m/s and snow loads up to 1.2KN/m². It features a modular design for fast on-site assembly and includes adjustable tilt angles to match site conditions. The structure is pre-engineered for compatibility with standard solar panels and supports both residential and commercial installations.

Key Benefits

What You Get

Modular design enables fast on-site assembly and reduces labor costs
Adjustable tilt angle allows optimal solar exposure without breaking the roof waterproof layer
Corrosion-resistant materials including AL6063-T5, SUS304, and PosMAC for long-term durability

Supports wind speeds up to 45m/s and snow loads up to 1.2KN/m²
Customizable height and configuration for ground or carport installation
Pre-engineered for compatibility with standard 4mm2 and 6mm2 PV cables and MC4 connectors

Who It Is For

Buyers and Sites

Solar installers building ground or carport solar systems from one delivery
EPC contractors managing commercial or residential solar projects with tight timelines
Property owners installing solar on carports or open ground without roof mounting
Importers and wholesalers supplying mounting hardware to off-grid or unstable-grid markets

Application Scenarios

Where It Is Installed

Carport installations at residential homes, schools, or community centers with limited roof space
Ground-mounted solar systems on flat or uneven terrain with no roof access
Commercial parking areas with solar canopies that double as shade structures
Sites requiring a low-profile mounting system with minimal visual impact
Projects in high-wind or snowy regions where structural integrity is critical

Problems It Solves

What This Removes From the Job

Mounting structures sourced from multiple suppliers that do not match panel dimensions or site conditions
Roof waterproofing compromised during installation due to rigid or non-adjustable brackets
Structural failure in high wind or snow load areas due to mismatched material strength
On-site assembly delays from missing or incompatible mounting hardware and fasteners
Lack of adjustable tilt angles that prevent optimal panel orientation for seasonal sun paths

Technical Features

How It Is Built

Material options: AL6063-T5, SUS304, or PosMAC for high corrosion resistance
Surface treatment: Anodizing, HDG, or Magnesium Aluminum Alloy Coating (275g/m² double-sided)
Wind speed resistance: up to 45m/s
Snow load capacity: up to 1.2KN/m²

Build height: up to 20m
Tilt angle: 5°, 10°, or customized to site conditions
Designed for carport, ground-mounted, flat roof, or pitched roof installation

Specifications

Technical Data

Values below are taken from the product documentation. Anything not listed is confirmed against your order.

Installation Site	Carport / Ground-mounted
Installation Angle	5°, 10°, Customized
Wind Speed	<45m/s
Snow Load	<1.2KN/m²
Build Height	<20m
Material	AL6063-T5 & SUS304 / PosMAC
Surface Treatment	Anodizing / HDG / Magnesium Aluminum Alloy Coating 275g/m²
Warranty	10-year warranty
Service Life	20-year service life
Tilt Angle	Any, customizable
Wind Load	40-60m/s
Service Life	25 years

Materials

What It Is Made Of

AL6063-T5 aluminum alloy for structural members
SUS304 stainless steel for fasteners and critical joints
PosMAC material for high corrosion resistance and lightweight performance
Anodized or HDG surface treatment for outdoor durability
Magnesium Aluminum Alloy Coating (275g/m²) on both sides for enhanced protection

Manufacturing and Preparation

Before It Ships

Review site dimensions and panel specifications to determine mounting layout
Design structure using CAD drawings based on tilt angle, wind load, and snow load requirements
Select material type and surface treatment based on environmental conditions
Fabricate brackets and rails with precision cutting and welding
Assemble and inspect the structure before shipment
Package in protective wrapping for safe export delivery

Quality Control

Checked Before Packing

Verify material thickness and grade against the specification sheet
Inspect welds and joints for consistency and strength
Test surface coating thickness and adhesion
Confirm tilt angle and mounting hole alignment before packing
Check that all fasteners and hardware are included and correctly labeled

Customisation

What Can Be Changed at Order Stage

Custom tilt angle based on site-specific sun path and shading analysis
Adjustable height and span to meet minimum clearance from ground
CAD drawings provided for flat roof, pitched roof, soil, or cement ground installation

Material selection changed between AL6063-T5, SUS304, and PosMAC
Surface treatment adjusted to anodizing, HDG, or Magnesium Aluminum Alloy Coating

Comparison

How It Compares With the Alternatives

Standard roof-mounted system	Designed for carport or ground use where roof space is unavailable or unsuitable
Fixed-angle mounting	Adjustable tilt angle allows better seasonal performance and site-specific optimization
Steel-only mounting	Lighter weight and better corrosion resistance with aluminum or PosMAC materials
Non-customized bracket	Built to exact panel dimensions and site conditions, reducing on-site modifications

Use Guide

Getting It Working on Site

Provide panel dimensions (length × width × thickness) and quantity before ordering

Specify installation site: flat roof, pitched roof, soil, or cement ground

Define required tilt angle and any wind or snow load requirements

Ensure minimum height from ground to panel is met for safety and clearance

Install structure with all fasteners tightened and grounding connections bonded

Others in Ground Mounting System

Solar panel array mounted on a ground structure with WeBright Solar branding

Ground Mounting System

Ground Mounted Solar PV Mounting System Structure

Flat Roof Bracket/Ground Bracket Material: Aluminum Alloy/ PosMAC Slope: Any Wind Load: 40-60m/s 10years, 25ye

View product →

FAQ

Questions About the Carport Solar PV Mounting System Structure

What materials are used in the carport solar mounting system?

The structure is made from AL6063-T5, SUS304, or PosMAC material, with surface treatments including anodizing, HDG, or Magnesium Aluminum Alloy Coating.

Can the tilt angle be customized?

Yes. The system supports 5°, 10°, or fully customized tilt angles based on site conditions.

What is the wind and snow load capacity?

The system is designed for wind speeds up to 45m/s and snow loads up to 1.2KN/m².

Is the structure suitable for ground installation?

Yes. It is designed for ground-mounted, carport, flat roof, or pitched roof applications.

How long is the warranty and service life?

The system comes with a 10-year warranty and a 20-year service life, with some configurations lasting over 25 years.

Can I get CAD drawings for my project?

Yes. Customized design with CAD drawings is available for flat roof, pitched roof, soil, or cement ground installation.

What surface treatments are available?

Available treatments include anodizing, HDG, and Magnesium Aluminum Alloy Coating (275g/m² double-sided).
