monitoring voltage relay

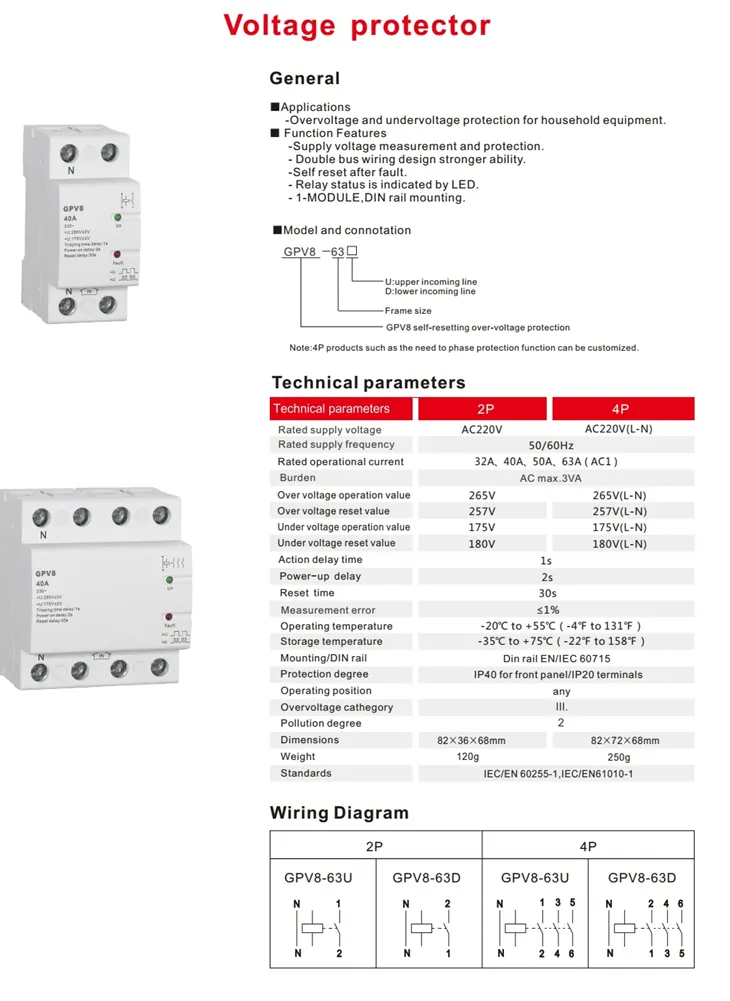

Voltage Relay
voltage protector
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Relays
- Series
- Voltage Relay
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
Applications
-Overvoltage and undervoltage protection for household equipment.
Function Features
-Supply voltage measurement and protection.
- Double bus wiring design stronger ability.
-Self reset after fault.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
Technical Data
Electrical features
| Model NO | GPV8 2P & 4P |
| Function | Automatic Over Under Voltage Protection |
| Voltage Range | AC220V |
| Burden | AC max. 3VA |
| Over voltage operation value | 265V |
| Over voltage reset value | 257V |
| Under voltage operation value | 175V |
| Under voltage reset value | 180V |
| Action delay time | 1s |
| Power- up delay | 2s |
| Reset time | 30s |
| Measurement error | ≤1% |
| Rated Frequency | 50/60HZ |
| Rated Current | 32A 40A 50A 63A |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 60255-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ |
1PCS |
Other models in Voltage Relay
Questions about this model
How do I get a price for the voltage protector
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the voltage protector
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
