current monitoring relay
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Relays
- Series
- Current Relay
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE

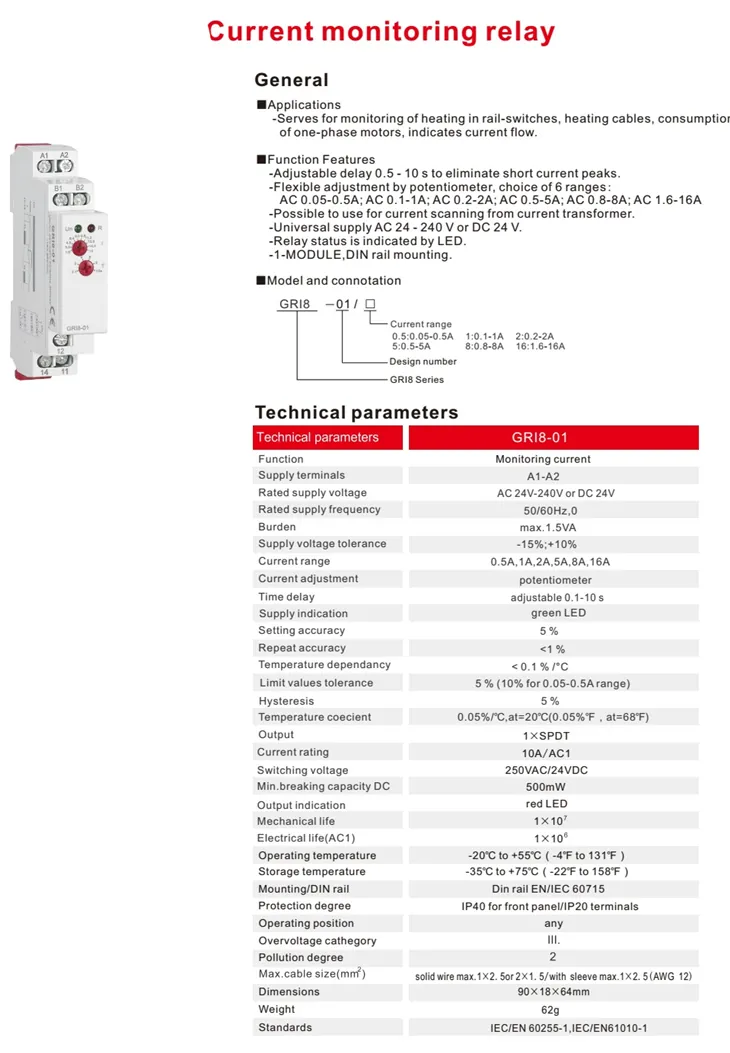

Technical data
Applications
-Serves for monitoring of heating in rail-switches, heating cables, consumption
of one-phase motors, indicates current flow.
Function Features
-Adjustable delay 0.5 - 10 s to eliminate short current peaks.
-Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A

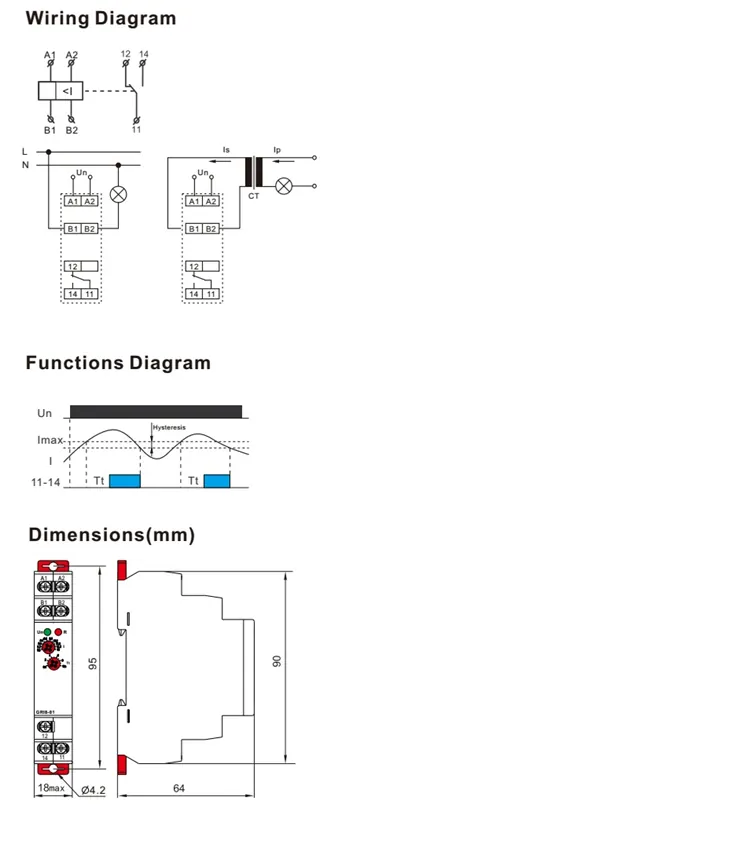

-Possible to use for current scanning from current transformer.
-Universal supply AC 24 - 240 V or DC 24 V.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
Technical Data
Electrical features
| Model NO | GRI8 |
| Function | Current Monitoring Relay |
| Voltage Range | AC/DC24V-240V OR DC24V |
| Output | 1 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 10A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ |
1PCS |
Questions about this model
How do I get a price for the current monitoring relay
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the current monitoring relay
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
