Flexible Rogowski coil electronic transformer
Flexible Rogowski coil CT

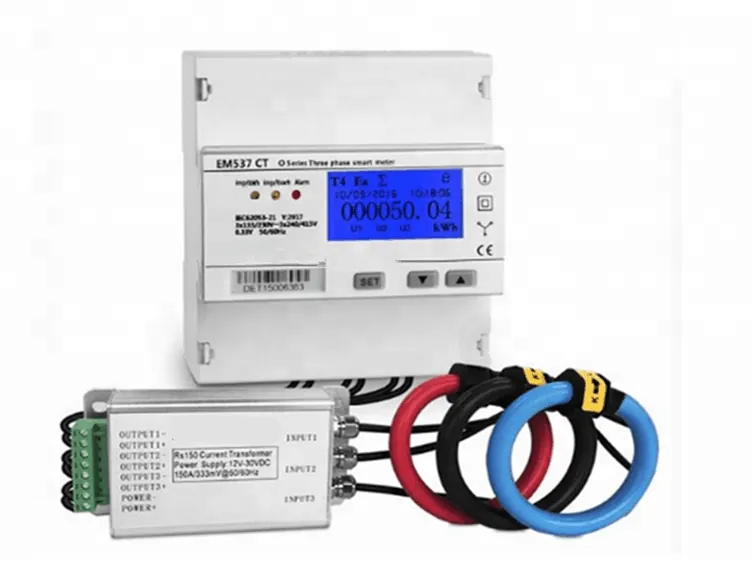

3P Rogowski Coil CT
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data

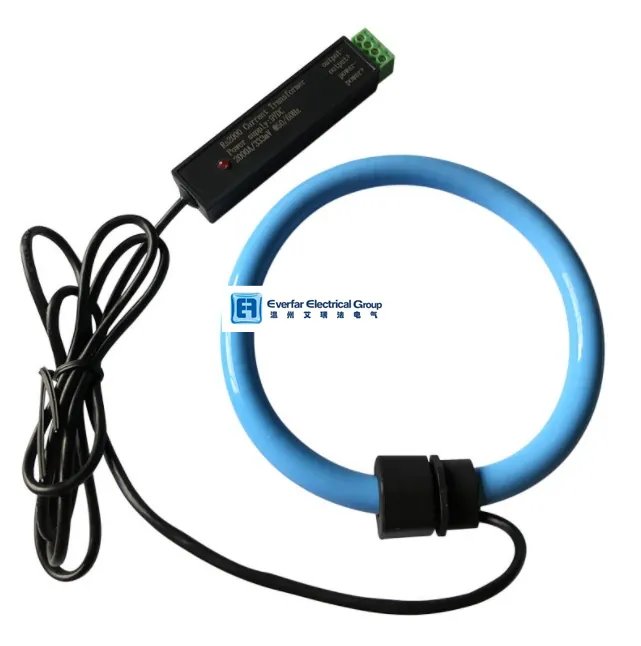

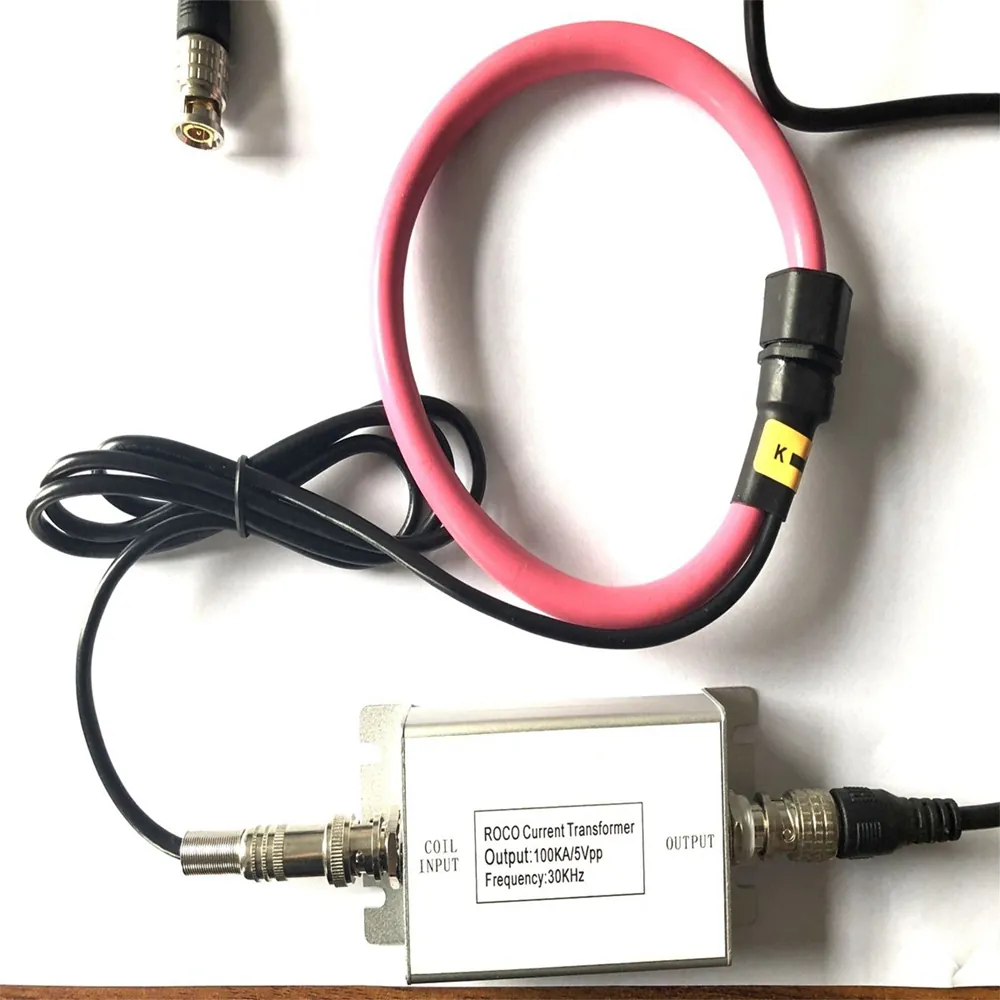

The Flexible Rogowski coil current transformer series is designed for easy-integration in a variety of applications and systems. Rope Style Form Factor Rope-like coil allows it to fit into any constrained spatial configuration ranging from panels, wire bundles or irregular sized bus where regular solid core CT or split core CT cannot be used.
The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.
A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation (the point where incremental increases in magnetic flux are not reflected in proportional increases in secondary signal outputs) is avoided
Specification:
Input current range:0-10000A
Output :Flexible Rogowski coils 0.333Vac,100mV/per 1000A, 0-5Vac
Bandwidth :1Hz-1MHz
Accuracy :≤±1%
Response time :<10ms
Auxiliary power supply :6-12VDC
Coil length :≤2m
Status indicator :LED light
Storage temperature range :-40ºC-70ºC
Operating temperature range :-20ºC-55ºC
Storage humidity range :10%-90% without dew
Operating humidity range :10%-90% without dew
| Rated current (rms) | 10A-100KA |
| Output | mV (without integrator) |
| 0-5V AC(with integrator) | |
| Power supply | 9V-24V |
| Coil length | 20cm-200cm |
| Tube | UL material |
| Wire lead | Shielded cable |
| Isolation voltage | 3500V |
| Operating temperature | -25ºC-+70ºC |
| Frequency | 50Hz-60Hz |
| Accuracy | ±1% |
| Dimensions(mm) | RS-210 | RS-350 | RS-420 | RS-510 | RS-600 | RS-800 |
| A Window size((mm)±10% | 60mm | 103mm | 125mm | 155mm | 180mm | 245mm |
| B Rogowski Coil O.D.(mm)±10% | 73mm | 120mm | 141mm | 171mm | 201mm | 266mm |
| C Rogowski Coil Diameter | 6.5mm | 8mm | 8mm | 8mm | 10.5mm | 10.5mm |
| D Wire Lead Diameter | 4mm | 4mm | 4mm | 4mm | 4mm | 4mm |
 |
 |
.webp) |
click to other model catalogue: Flexible Rogowski coil CT
Other models in Flexible Rogowski coil CT
Flexible rogowski coil current transformer
Flexible Rogowski coil CT
Questions about this model
How do I get a price for the 3P Rogowski Coil CT
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the 3P Rogowski Coil CT
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
