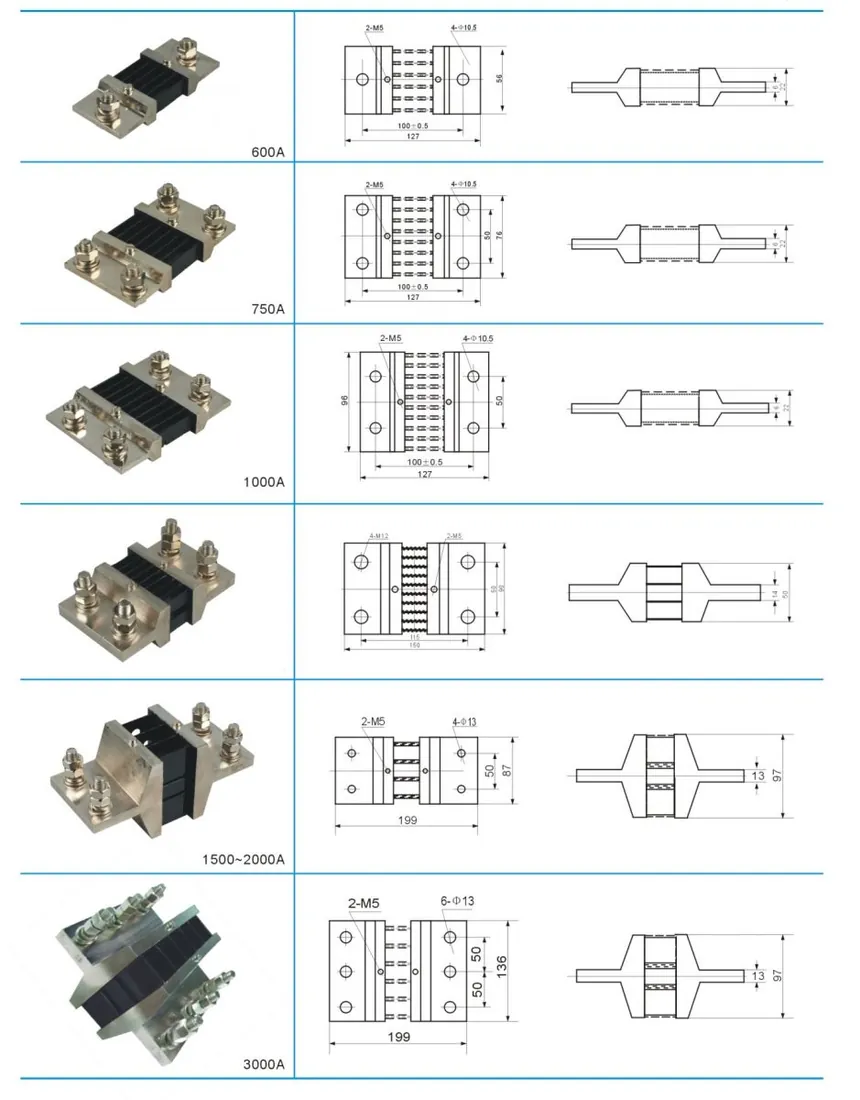

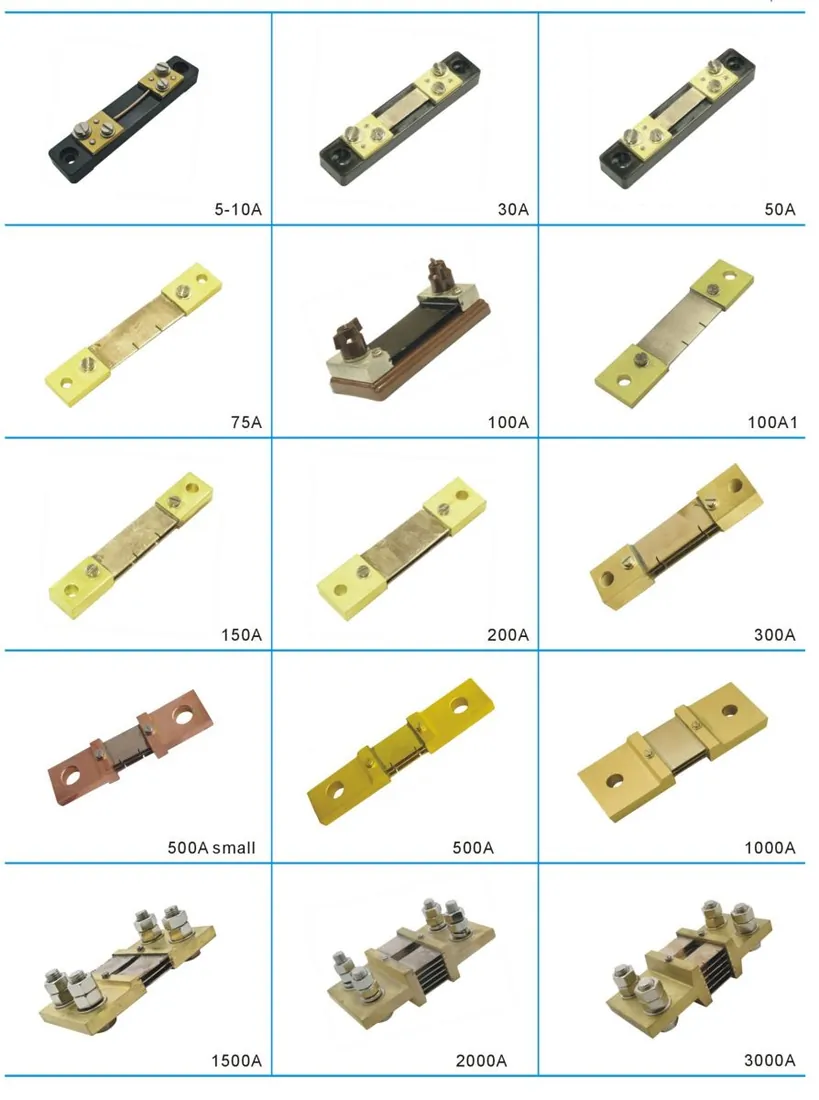

Europe DIN43703 Shunt
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- DC Shunts
- Series
- Europe DIN43703 Shunt
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
Features:
1) Standard for the Installation: IEC 61010-1:1990
2) Accuracy class: 1~4000A: Class 0.5- 0.2
3) Temperature: -40~+60ºC.
4) Relative humidity:
5) Mechanical properties of resistance: can withstand acceleration of 70 m / s ² and impact frequency of 6 hours of 80 to 120 beats per minute transport point earthquake.
6) Overload performance: 120% rated current value, 2 hours.
7) Voltage drop: 50mV, 60mV, 75mV, 100mV, 150mV, 200mV, 300mV and so on.
8) Heat load: Changes in temperature stabilized, does not exceed the rated current of 50A below 80 ºC; rated current of 50A above does not exceed 120 ºC.
Usage:
Shunts are widely used to expand the range of instruments to measure current with a fixed value shunt resistors, precision alloy, can be used in communications systems, electronic machine, automatic control of power supply circuits do limiting, both flow sampling testing.
Questions about this model
How do I get a price for the Europe DIN43703 Shunt
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the Europe DIN43703 Shunt
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
