DSC Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- DSC Low Cost CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data

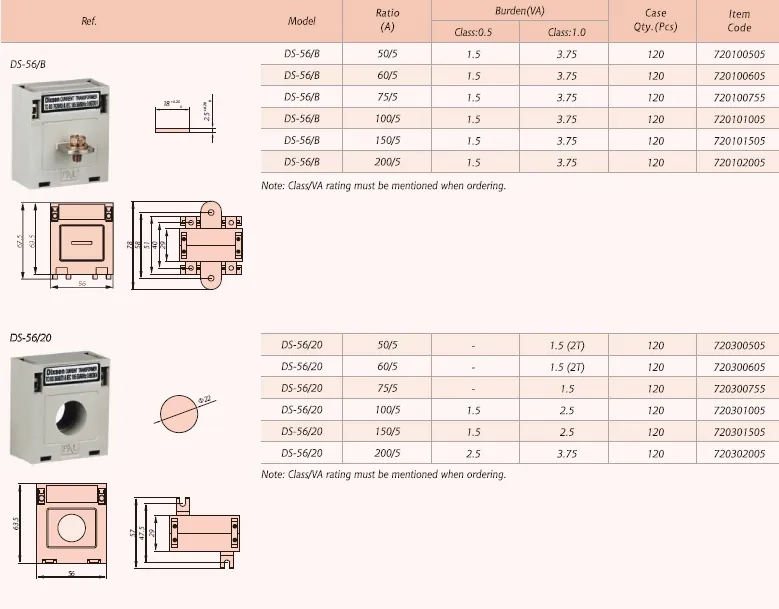

$0.89/per DSC56/20 100/5A 1cl.Cheapest! model in Asian,South Africa,Russia Market,Samples free!
DESCRIPTION

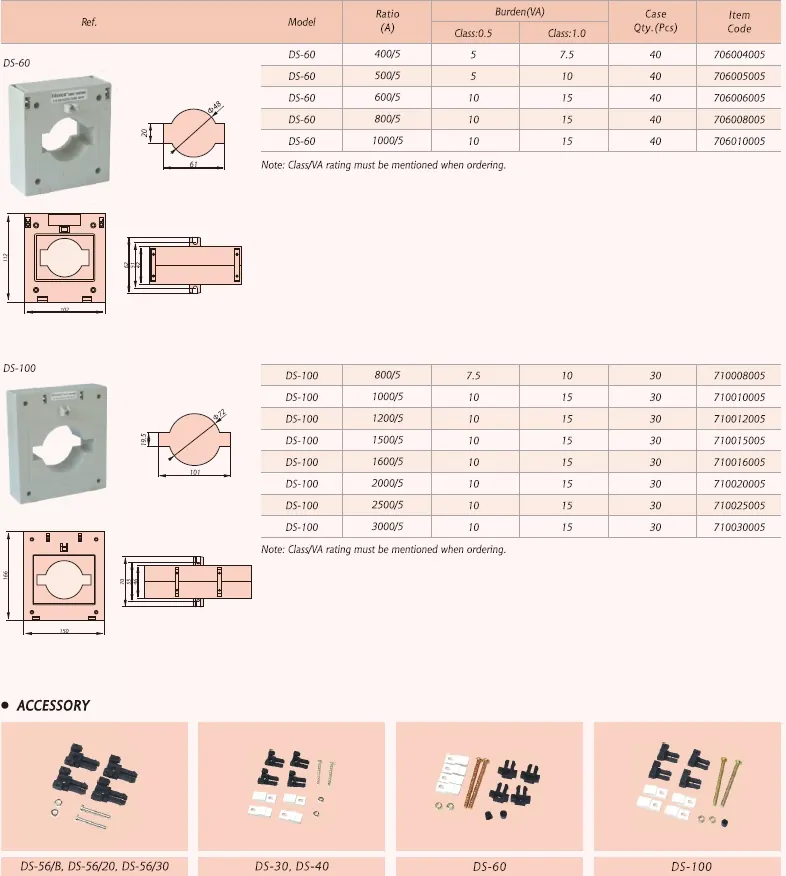

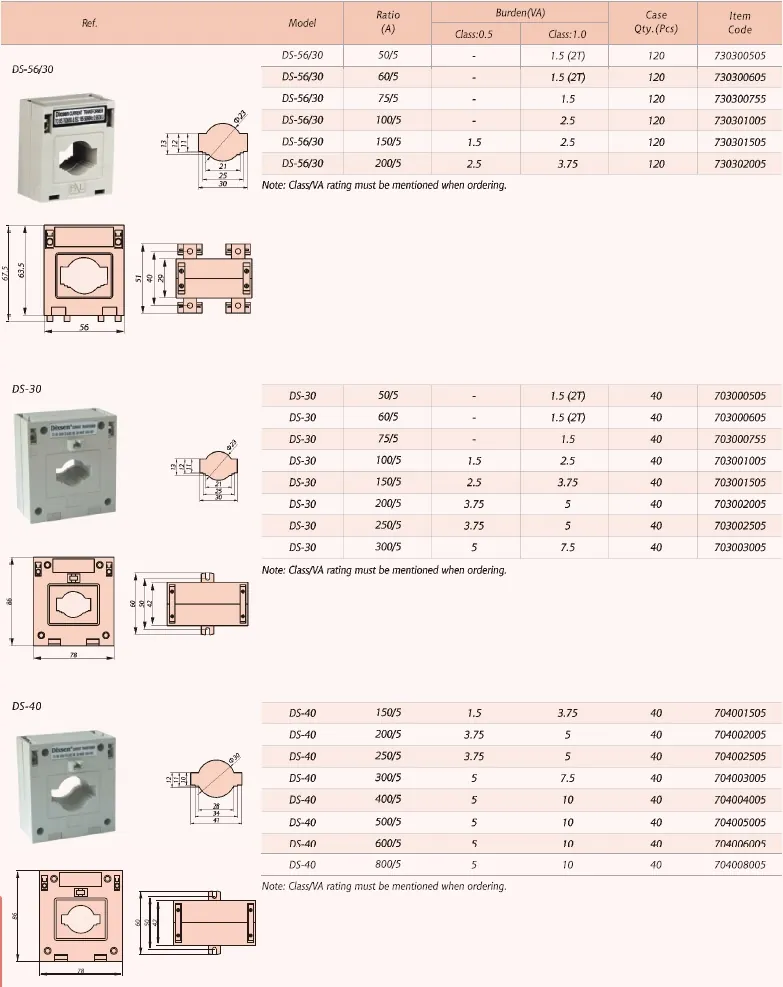

An old range of (7 frames) plastic case current transformer, low cost.
·FEATURE
Busbar mounting
Low cost
Primary current from 5A to 3000A.
·SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage,(Um) 0.72Kv AC.
Continuous overload,(Id) 1.2In
Operating temperature -10℃~50℃
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
click to other model catalogue:
Questions about this model
How do I get a price for the DSC Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the DSC Current Transformer
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
