DBP Square Split Core CT
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- DBP Square Split Core CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data

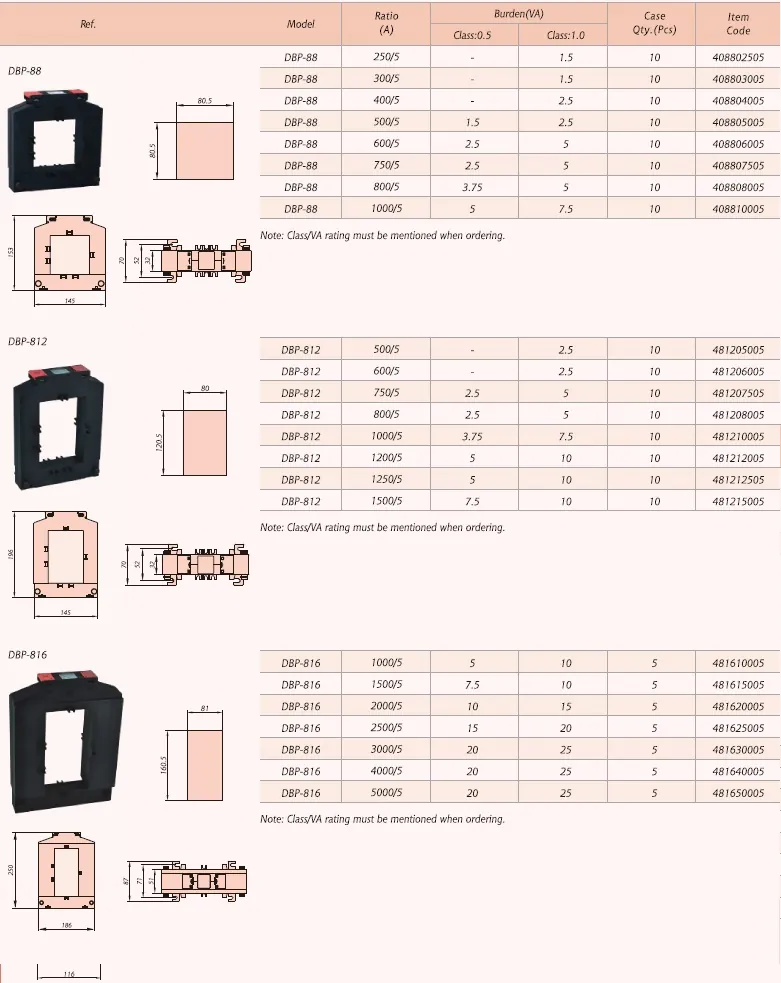

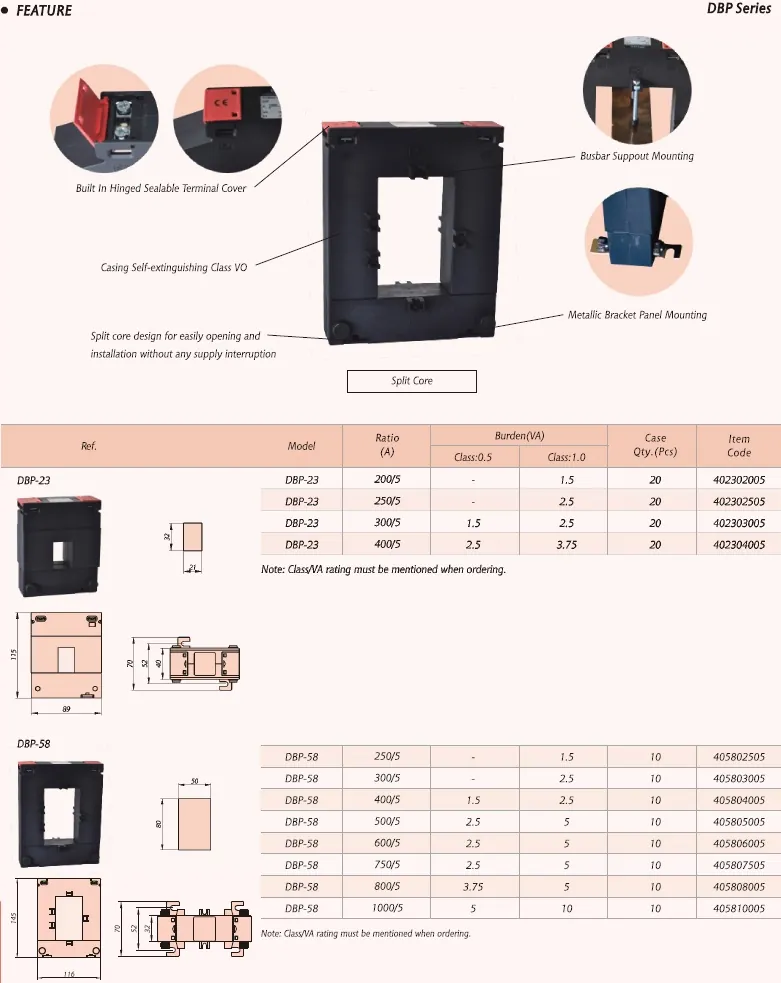

1.DESCRIPTION The DBP series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side circuit to pass cables or bur-bars through the transformer core or to connect such cables to the primary terminals. The DBP series transformers core may be easily opened and they may be installed and connected without any supply interruption. Thus saving time and the installation costs. 2. FEATURE Two built in fixing methods:Base; Busbar mounting Very easy to mounting. Wide inner window, allowing clamping of big cables or bus-bars.Wide range of sizes to accommodate all the existing installations. Primary current from 5A to 5000A. 3.SPECIFICAIONS Rated Frequency 50/60Hz Rated test voltage 3kV AC. (1 min) Rated short-time thermal current(Ith) 60In Rated dynamic current,(Idyn) 2.5Ith Rated voltage,(Um) 0.72Kv AC. Continuous overload,(Id) 1.2In Operating temperature -10°C~50°C Housing self-extinguishing class VO Safety factor FS 5 Secondary current 5A/1A DBP Square Split Core CT
Exactly match Lovato(DM1TA DM2TA DM3TA DM4TA),IME,Rayleigh Instruments(DBP23).
click to other model catalogue:
Questions about this model
How do I get a price for the DBP Square Split Core CT
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the DBP Square Split Core CT
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
