0.5-0.66KV Epoxy Resin CT
0.5-0.66KV Outdoor Resin
Current Limited Reactor
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- 0.5-0.66KV Outdoor Resin
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE

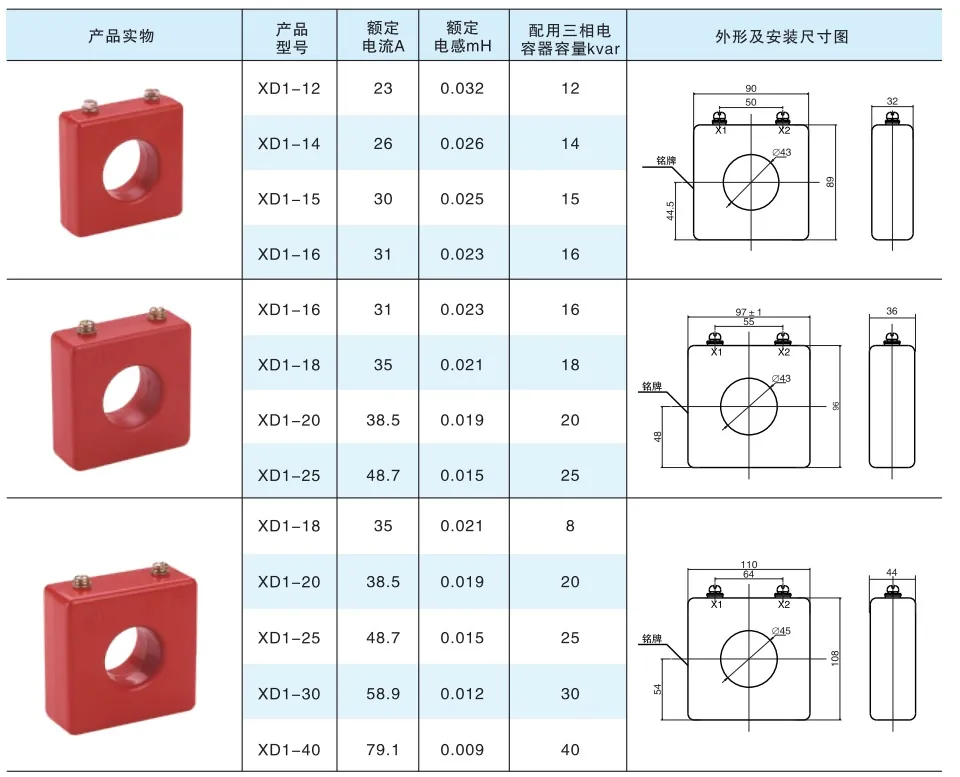

Technical data
In electrical engineering, current limiting reactors can reduce short-circuit currents, which result from plant expansions and power source additions, to levels that can be adequately handled by existing distribution equipment.[1] They can also be used in high voltage electric power transmission grids for a similar purpose. In the control of electric motors, current limiting reactors can be used to restrict starting current or as part of a speed control system.
click to other model catalogue:
0.5-0.66KV Outdoor Resin 12KV Indoor Resin CT 24KV Indoor Resin CT 36KV Medium CT&VT
How it works
A current limiting reactor is used when the prospective short-circuit current in a distribution or transmission system is calculated to exceed the interrupting rating of the associated switchgear. The inductive reactance is chosen to be low enough for an acceptable voltage drop during normal operation, but high enough to restrict a short circuit to the rating of the switchgear. The amount of protection that a current limiting reactor offers depends upon the percentage increase in impedance that it provides for the system.
Current Limiting ReactorThe main motive of using current limiting reactors is to reduce short-circuit currents so that circuit breakers with lower short circuit breaking capacity can be used. They can also be used to protect other system components from high current levels and to limit the inrush current when starting a large motor.
click to other model catalogue:
0.5-0.66KV Outdoor Resin 12KV Indoor Resin CT 24KV Indoor Resin CT 36KV Medium CT&VT
Other models in 0.5-0.66KV Outdoor Resin
LMZC Inflatabel cabinet CT
0.5-0.66KV Outdoor Resin
Questions about this model
How do I get a price for the Current Limited Reactor
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the Current Limited Reactor
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
