DC split core CT
SCT Clamp Split Core CT
SCT Clamp Spilt Core CT
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- SCT Clamp Split Core CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data

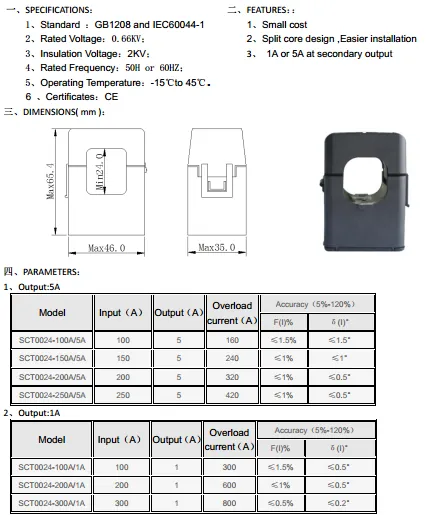

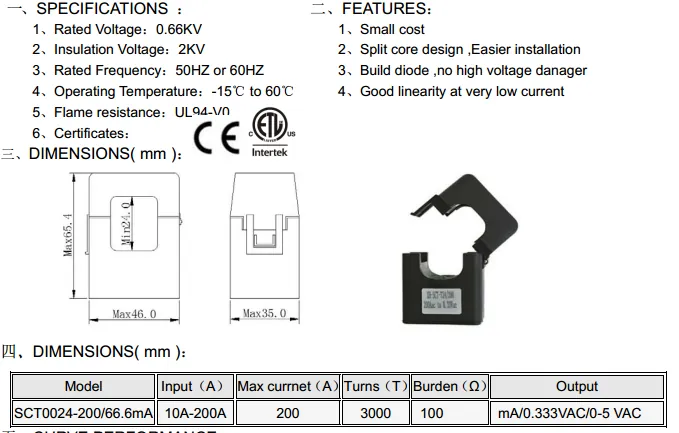

SCT-T24 5.9$/per 100/5A, Rayleigh Instrruments TAS-T10 Single Phase Mini Split Core Current Transformer 333mV Split core current transformer with high quality and CE UL certification
SCT Series
.webp)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------

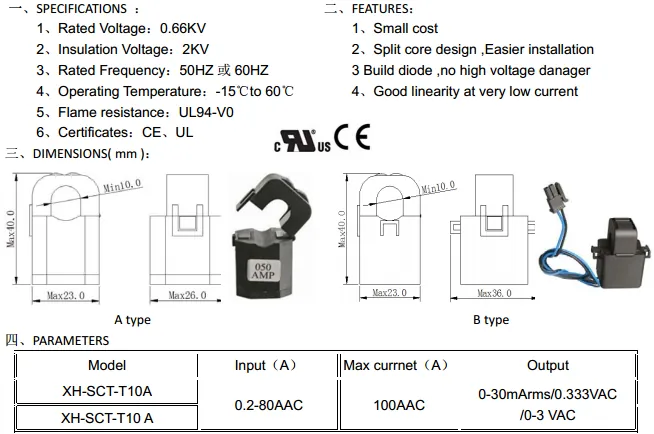

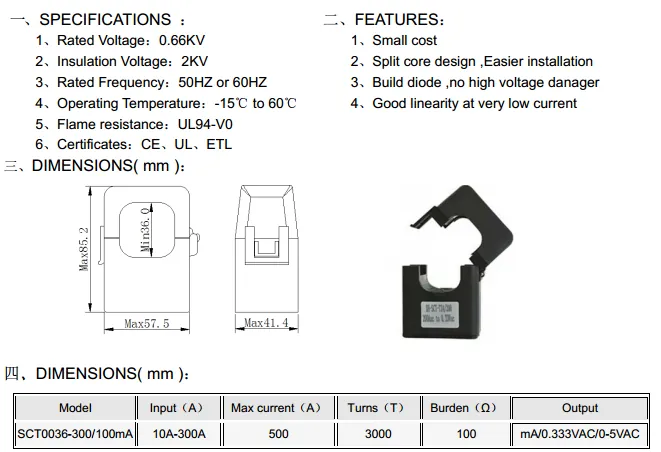

SCT-T Series
------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------
SCT-0010 Split Core Current Transducer
Specifications:
Maximum continuous primary current 5A-120A
Secondary turns: 3000 or as per customer datasheet
current transformer output: voltage or mA
Wire leads: 24# AWG AWM2464 24AWG
Frequency: 50/60Hz
Accuracy: 1%
DC resistance: 460ohms @ 20degree Celsius
Applications:
Portable instruments
Sub-metering
Monitor motor load
Our main products:
Split Core Current Transformer, Split Core Current Sensor, Split Core Current Transducer, Clip on Current Sensor, Current Transformer Manufacturer, Split Core Cts Manufacturer, Current Sensor Manufacturer, Clamp on Current Transformer, AC Split Core Current Transformer, Flex Core Current TransformerSCT Series
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------
SCT-T Series
------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------
SCT-0010 Split Core Current Transducer
Other models in SCT Clamp Split Core CT
Clamp on current transformer
SCT Clamp Split Core CT
Questions about this model
How do I get a price for the SCT Clamp Spilt Core CT
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the SCT Clamp Spilt Core CT
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
