Asian Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Worldwide CT Showroom
- Series
- Asian CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data
Address:243 Milperra Road REVESBY NSW 2212 AUSTRALIA
Website: www.stemar.com.au
Email: stemar.com.au
Tel: +61-2-97712100 Fax: +61-2-97745585

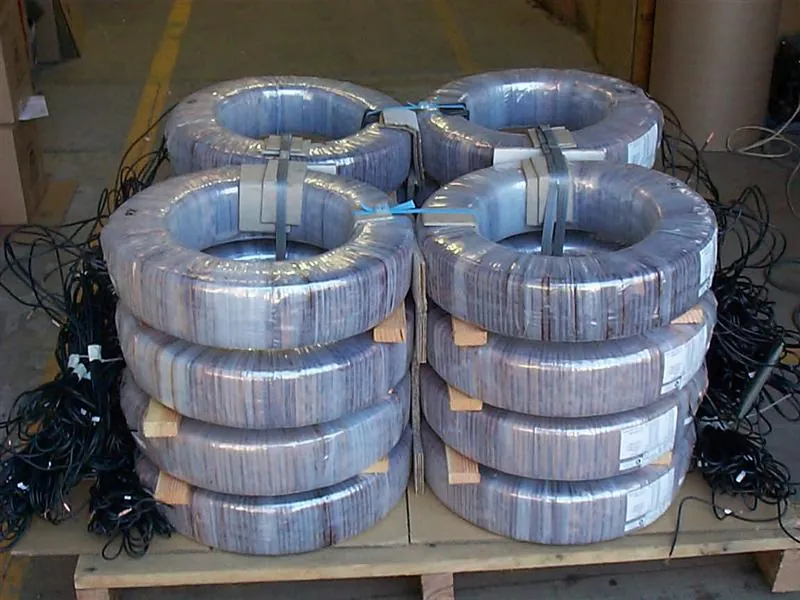

Tape finished current transformers
Switchgear over insulated bushings
Power transformers either mounted integrally or on the bushing turrets.
Fitted inside weatherproof housings on Circuit Breaker.......see more
.webp)
Cast Resin Current Transformers
Stemar manufactures and supplies cast resin current transformers for use
on systems upto 36kv for both metering and protection applications....
DMC Range current transformer..... see more
Address:F-31, MIDC, Satpur Nashik - 422007 Maharashtra India
Website: www.rishabh.co.in
Email: [email protected]
Tel: +91-253 2202202/203 Fax: +91 253 2351064
RISH X'mer Series Square type CTs
Features
Comprehensive measurement of class accuracy.
Cost effective moulded case current transformer.
Wide range of system current ratings, bus bar sizes, case widths and apertures.
Various mounting options like wall mounting, cable mounting, bus bar mounting, DIN rail mounting.
Wire sealable terminal covers........see more
RISH Protection class CTs
Rish X’mer series protection class CTs are in both square and round shape which consists of secondary winding and primary has to be wound through the hole provided. This type has many sizes according to standard bus-bar or cable sizes.
These Current transformers are mainly intended to supply protective relays. Their class of accuracies are 5P5, 5P10, 10P5 and 10P10.........see more

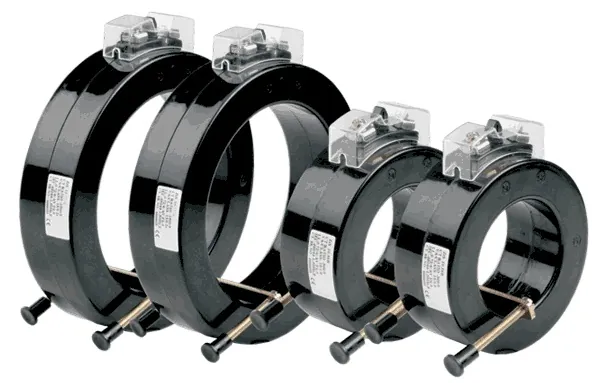

RISH TW Series Round CTs
Features
Test voltage 3KV 50Hz for 1minute.
System voltage 720V max.
Ratio ratings from 50/5A to 5000/5A.
Comprehensive measurement of class accuracy.
Wide range of system current ratings and bus bar sizes.
Cts manufactured as per IEC 60044-1 & IS 2705-1
Types of TW series round CTs
The RISH TW series round type CTs which consists of secondary winding and primary has to be wound through the hole provided. This type has six sizes according to standard cable sizes. Sizes for these types are as mentioned below. ........see more
Type Size (OD X ID X Axial) TW1 73 X 30 X 40 TW2 73 X 30 X 40 TW3 73 X 30 X 50
TW4 92 X 43 X 41 TW5 100 X 58 X 41 TW6 159 X 113 X 40
.
RISH TW-E Series Round CTs
Features
Test voltage 3KV 50Hz for 1minute.
System voltage 720V max.
Ratio ratings from 50/5A to 5000/5A.
Comprehensive measurement of class accuracy.
Wide range of system current ratings and bus bar sizes.
Cts manufactured as per IEC 60044-1 & IS 2705-1
Types of TW-E series round CTs
The RISH TW-E series round type CTs which consists of secondary winding and primary has to be wound through the hole provided.
Class of accuracies 1.0, 0.5, 0.5S and 0.2 are available........see more

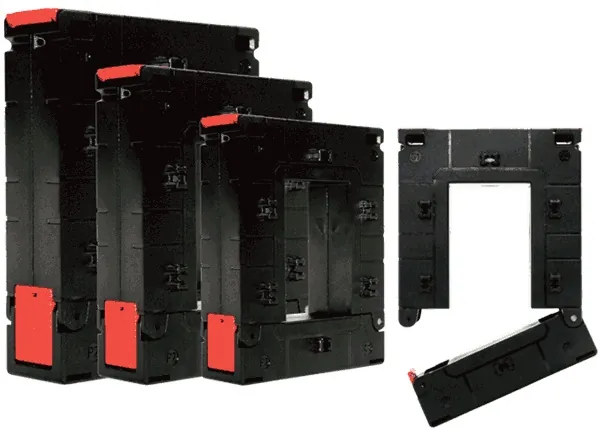

RISH Xmer Split Core CT's
Features
Test voltage 4KV 50Hz for 1minute.
System voltage 720V max.
Ratio ratings from 100/5A to 1500/5A.
Comprehensive measurement of class accuracy.
Wide range of system current ratings and bus bar sizes.
Cts manufactured as per IEC 60044-1 & IS 2705-1
Operation free installation is possible.
Split core type CTs
The RISH Split core type CTs which consists of secondary winding and primary has to be wound through the hole provided. It has an openable jaw which enables an operation free installation / removal of CTs. This type has 3 sizes according to standard cable sizes as mentioned below
Type Size (OD X ID X Axial) RISH X’mer 93/30SC (40) 93 X 30 X 40 RISH X’mer 125/50SC (40) 125 X 50 X 40
RISH X’mer 155/80SC (40) 155 X 80 X 40
Class of accuracies 3.0, 1.0, & 0.5 are available.........see more
Questions about this model
How do I get a price for the Asian Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the Asian Current Transformer
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
