LSY 3Phase Resin Current Transformer
TAS Three Phase CT
TAS 3Phase Current Transformer
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Current Transformers
- Series
- TAS Three Phase CT
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Datasheet
Technical data

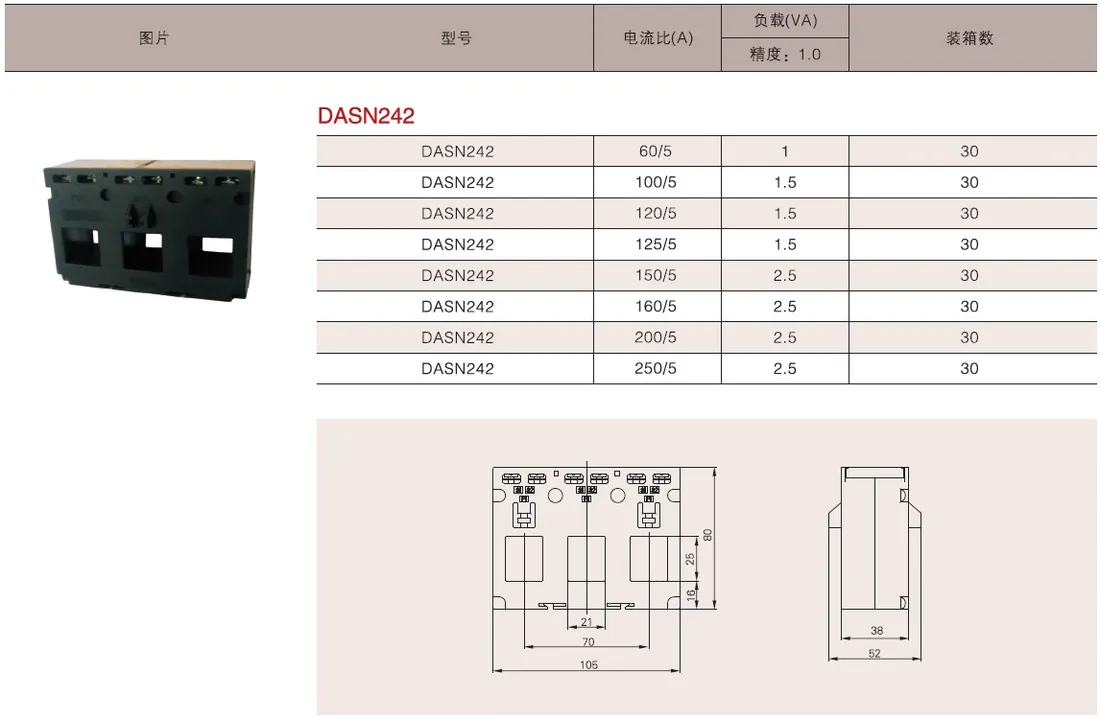

TASN35(242),100/5A 1cl. 6.8$/per,exactly match Rayleigh 3Phase CT.Samples free!
New Three phases Current Transformer(M3N1)
3 in 1 current transformer is designed for used at the top of MCCB,the current transformer save a lot space and time.
New Three phases Current Transformer(M3N1)
3 in 1 current transformer is designed for used at the top of MCCB,the current transformer save a lot space and time.
Three phases (M3N1) current transformer suitable for primary ranged from 100A to 1200A with 5A secondary. Allowing installation directly on top of moulded case circuit breakers for greater speed of installation and optimisation of space. Applicable MCCB: ABB Isomax series, Merlin Gerlin NS series, Changshu CM1 series.
Specification
High quality triple current transformers
•System voltage 720V 50-60Hz
•Test voltage 3kV for 1 minute
•Thermal short circuit current (Ith) 60 x In
•Dynamic short circuit current (Idyn) 2.55 x Ith
•Flame retardant polycarbonate UL94V-0
•International standards IEC/EN 60044-1
•DIN rail, bus bar or base mounting

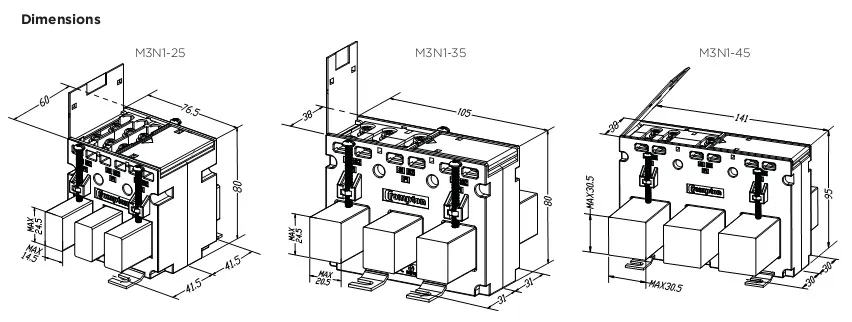

•3 sizes: 15 x 25mm, 21 x 25mm & 31 x 31mm apertures
Cable apertures from 15.5mm to 31mm

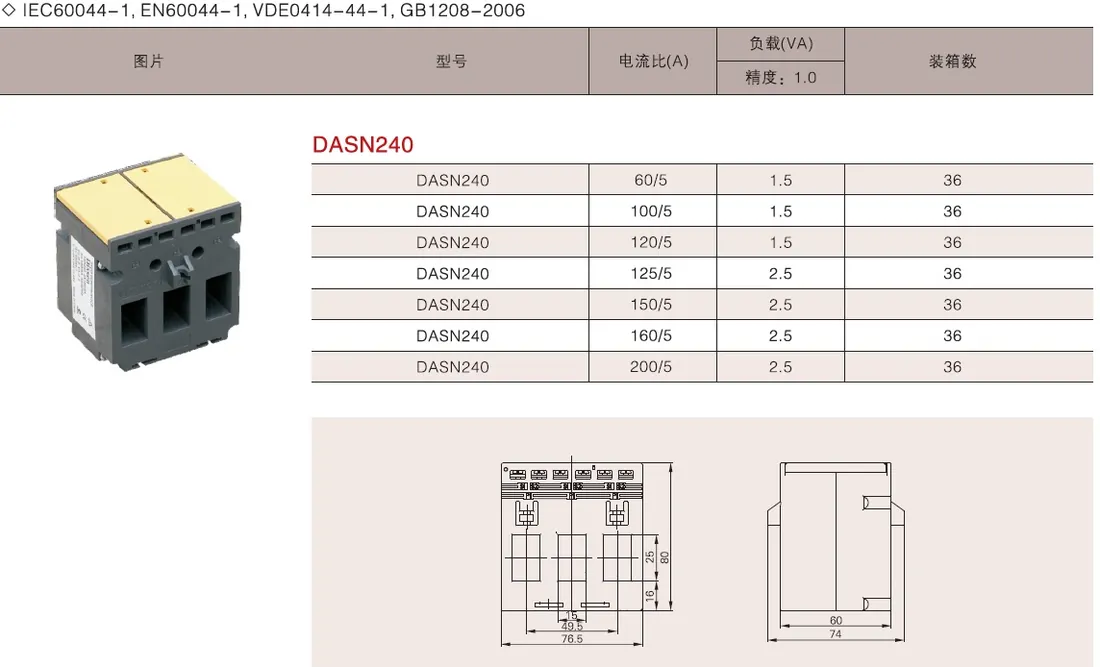

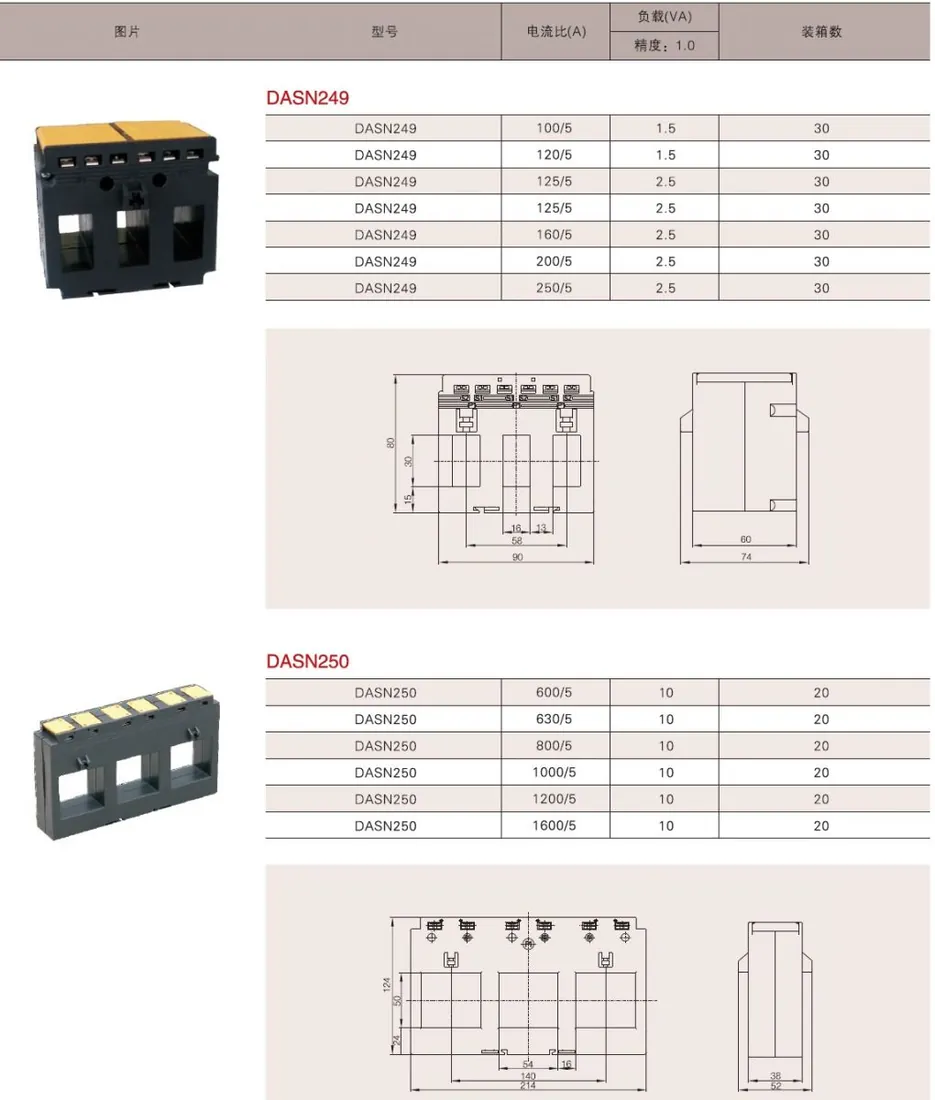

TASN-25-60/5 60/5A Class 1VA
TASN-25-100/5 100/5A Class 1 1.5VA
TASN-25-125/5 125/5A Class 1 1.5VA
TASN-25-150/5 150/5A Class 1 1.5VA
TASN-25-160/5 160/5A Class 1 1.5VA
TASN-35-100/5 100/5A Class 1 1.5VA
TASN-35-125/5 125/5A Class 1 1.5VA
TASN-35-150/5 150/5A Class 1 1.5VA
TASN-35-160/5 160/5A Class 1 1.5VA
TASN-35-200/5 200/5A Class 1 1.5VA
TASN-35-250/5 250/5A Class 1 1.5VA

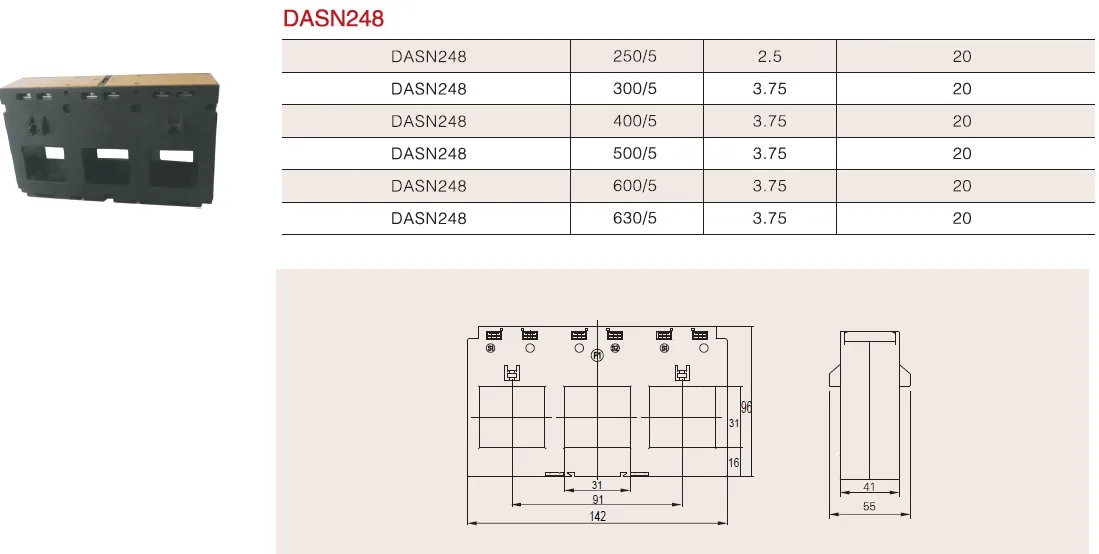

TASN-45-250/5 250/5A Class 1 1.5VA
TASN-45-300/5 300/5A Class 1 2.5VA
TASN-45-400/5 400/5A Class 1 2.5VA
TASN-45-500/5 500/5A Class 1 2.5VA
TASN-45-600/5 600/5A Class 1 2.5VA
TASN-45-630/5 630/5A Class 1 2.5VA
.webp)
cl
click to other model catalogue:
Other models in TAS Three Phase CT
Questions about this model
How do I get a price for the TAS 3Phase Current Transformer
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
