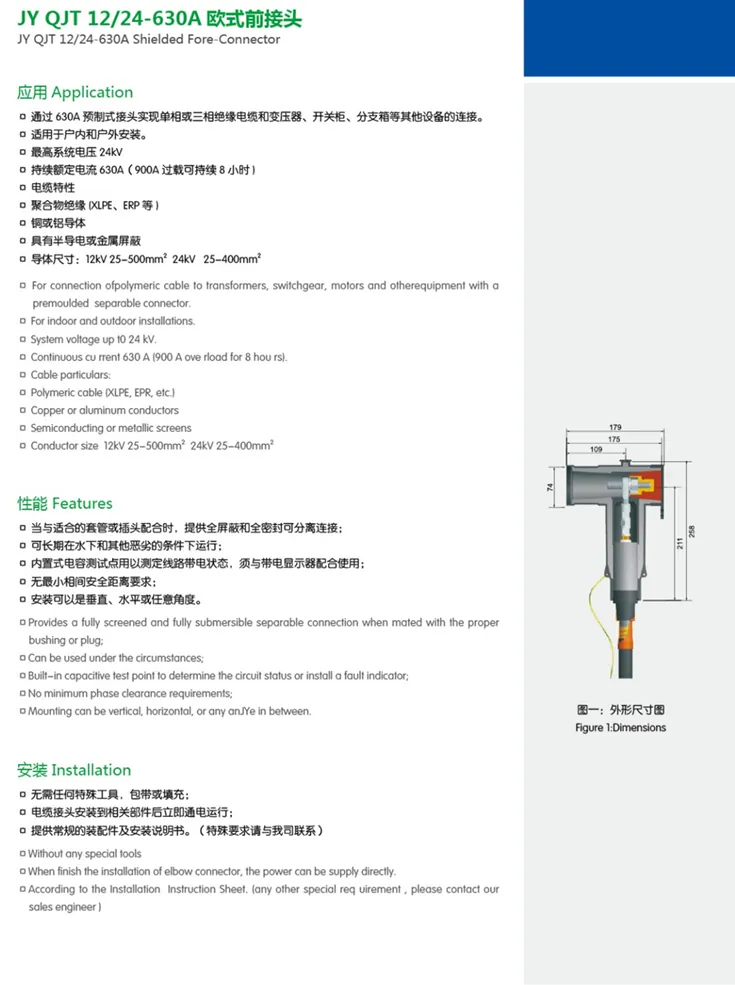

European shielded connector
Made by Qianwei Current Transformer Co., Ltd. in Liushi, Wenzhou. Tell us the ratio, accuracy class and burden and we will confirm the exact frame, the price and the lead time.
- Category
- Other Products
- Series
- Shielded Connector
- Manufacturer
- Qianwei, Wenzhou China
- Certification
- ISO 9001 and CE
Technical data

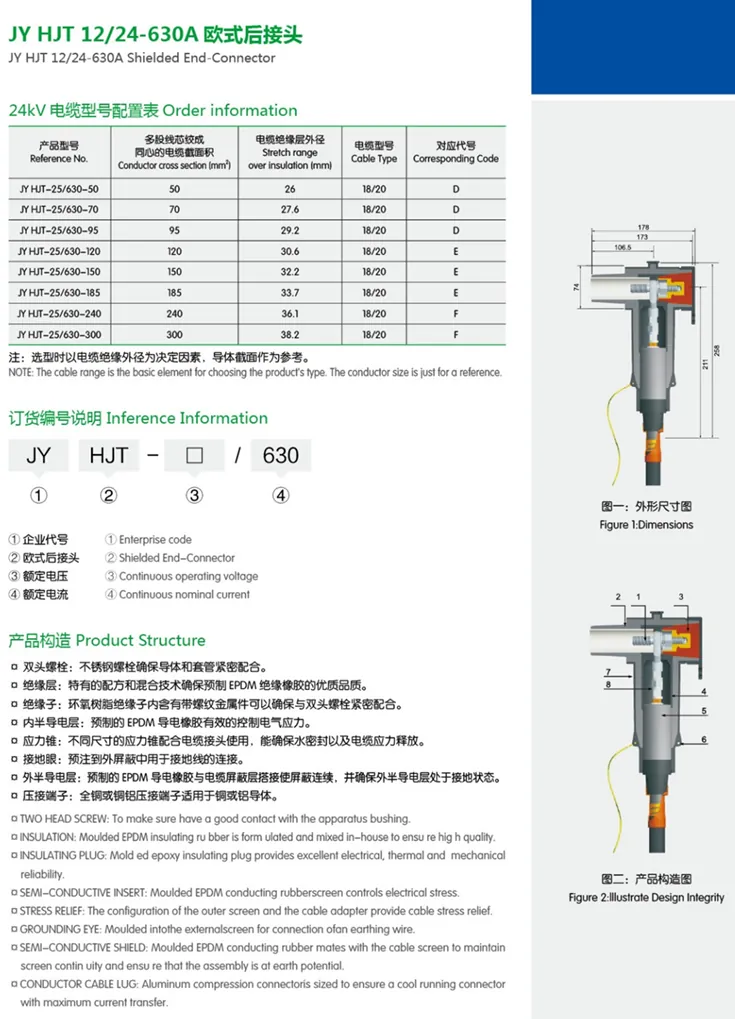

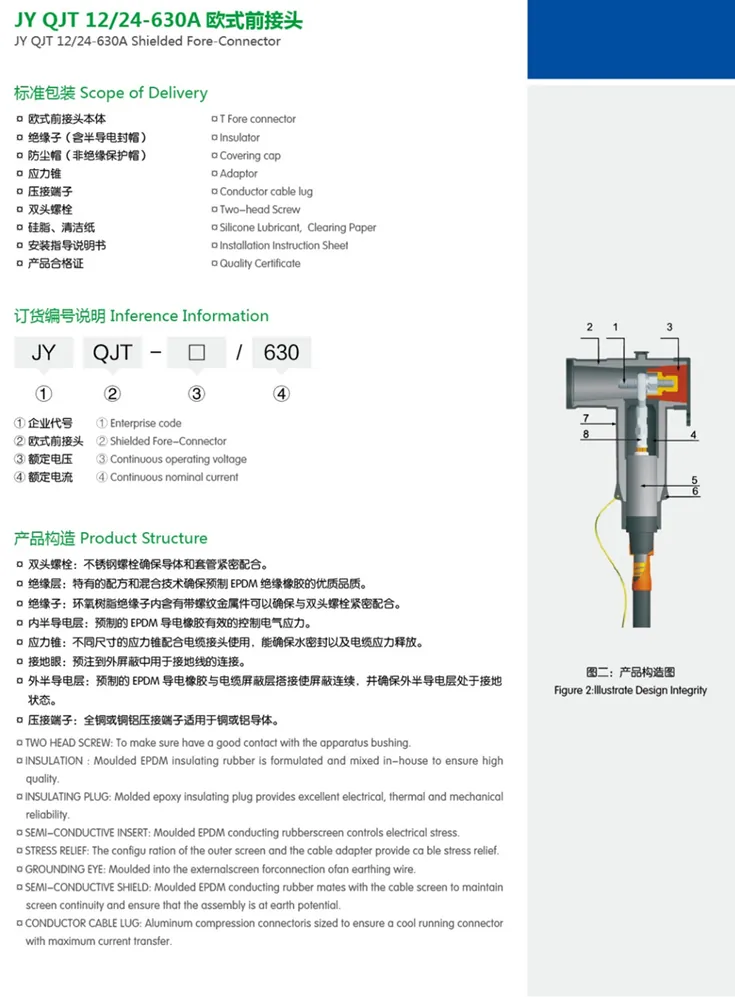

Product Structure:
•TWO HEAD SCREW: Stainless steel screw ensures the conductor having a good contact with the apparatus bushing.
•INSULATION: Unique formula and mixed technology assure the high quality of prefab insulated rubber..
•INSULATING PLUG: Molded epoxy insulating plug provides excellent electrical, thermal and mechanical reliability.
•INNER SEMI-CONDUCTING LAYER: Prefab EPDM conductive rubber can control the electrical stress effectively.
•STRESS CONE: The configuration of the outer screen and the cable adapter provide cable stress relief.
•GROUNDING EYE: Moulded into the external screen for connection of an earthing wire.
•External SEMI-CONDUCTING LAYER: the combination of prefab EPDM electric rubber and Shielded cable enables Shielding continuity, and ensures outer semi-conducting layer in the state of grounding.
•CRIMP TERMINAL: All - copper or copper-aluminum crimp terminals are suitable for copper or aluminum conductors.
Questions about this model
How do I get a price for the European shielded connector
Email [email protected] or message us on WhatsApp with the model, the ratio, the accuracy class, the burden in VA and the quantity.
What is the burden and why do you ask for it
The burden is the total termination impedance seen by the transformer: the measuring instrument, the connecting leads and the winding itself. Accuracy class cannot be guaranteed without it, and long lead runs add resistance that has to be counted.
Can this model be customised
Ratios, secondary current and mounting can often be adapted within the same frame. Send us the requirement and we will confirm what the frame allows.
Ask about the European shielded connector
Give us the ratio, the accuracy class and the burden and you will get a firm model number and price.
