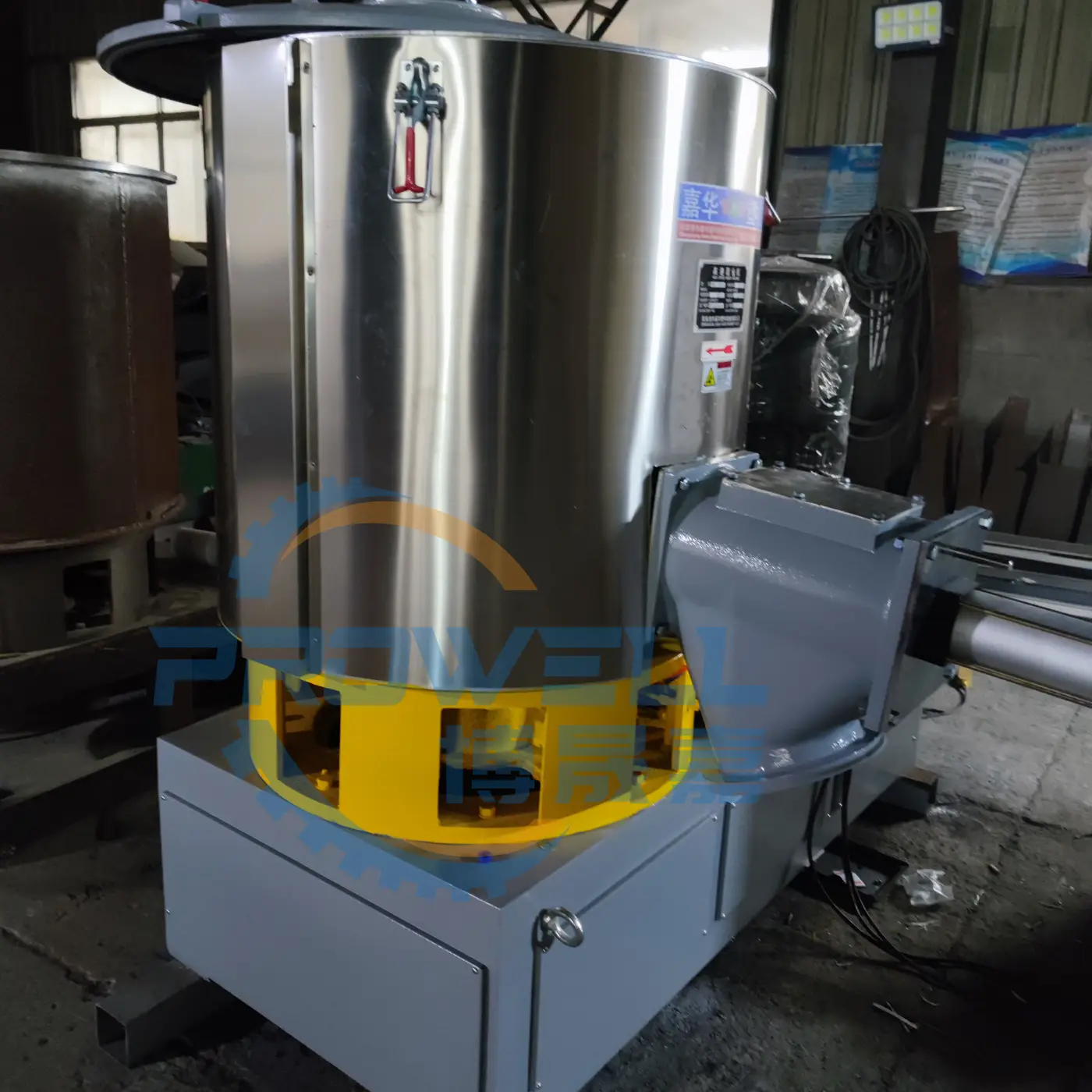

PVC Powder Heat Mixer High Speed Mixing Unit
The high-speed heating mixer is one of the equipment in the plastic processing plant, and it is also widely used in rubber, pharmaceutical, dyeing and other industries. Because it has the advantages of fast mixing, uniform mixture, good absorption of the resin to the extender, easy operation of the machine, easy cleaning, sturdiness and durability, and compact structure.
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
How this machine is used

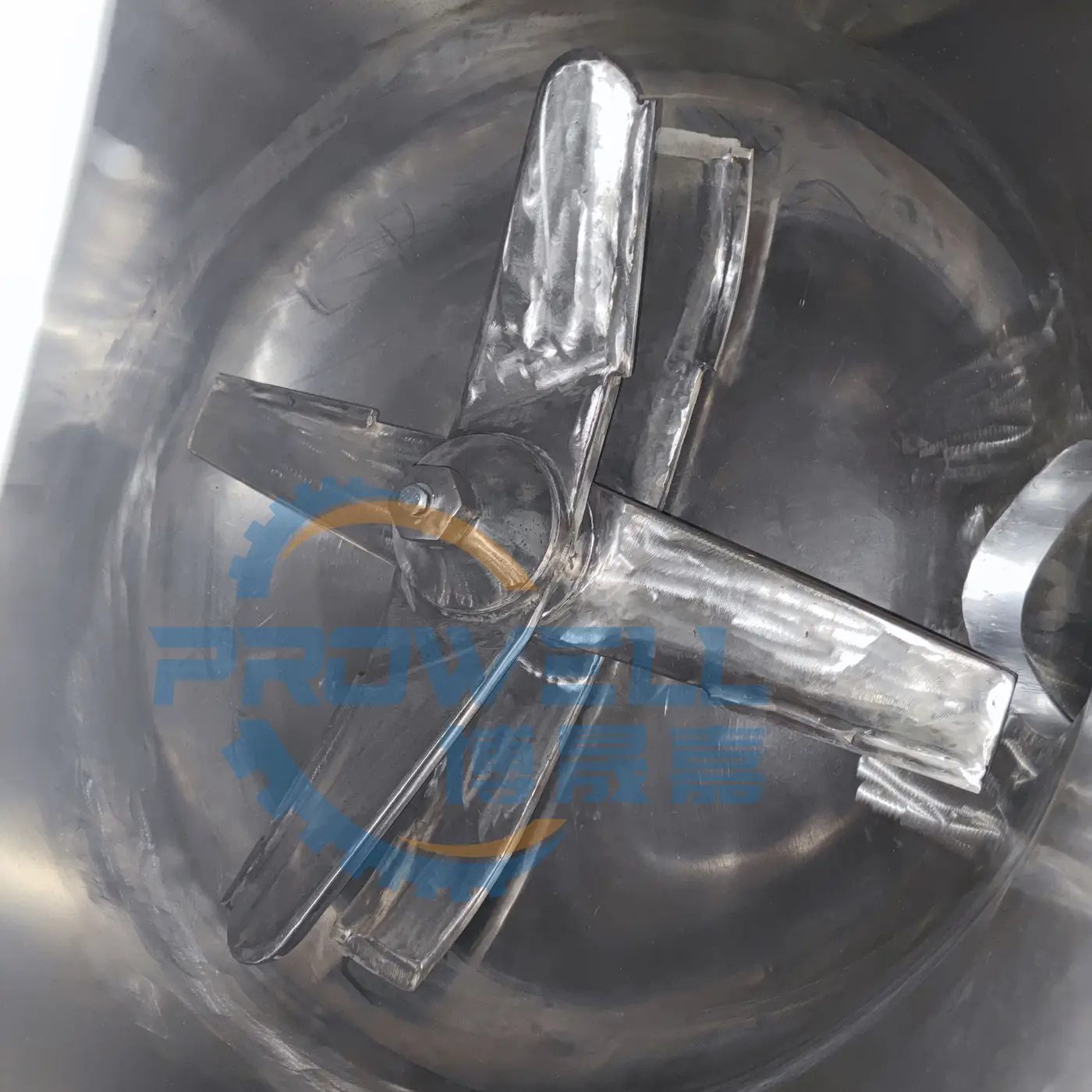

SRH 500 High Speed Powder Heat Mixer SRH 500 High Speed Heat Mixer Blade Lithium Battery Powder PVC Powder Heat Mixer Use in features: 1.
The High Speed Mixing Unit used for the mixing, stirring, dry explosion and coloring of materials in plastics, rubber, daily chemical industries and other industries and laboratories.
The lid of the pot adopts double sealing.
Various heating methods such as self-friction and electric heating are available.
Published specifications
| Model | Volume | Effective volume | Motor | Spindle speed | Dimensions | Heating method | Uploading Method |
|---|---|---|---|---|---|---|---|
| SHR-5A | 5 | 3 | 1.1 | 1440 | 620*300*730 | Electricity/self-friction | Manual |
| SHR-10A | 10 | 7 | 3 | 1440 | 1200*300*830 | Electricity/self-friction | Manual |
| SHR-25A | 25 | 20 | 5.5 | 1440 | 1200*350*850 | Electricity/self-friction | Manual |
| SHR-50A | 50 | 35 | 7/11 | 750/1500 | 2100*700*1100 | Electricity/self-friction | Manual |
| SHR-100A | 100 | 75 | 14/22 | 650/1300 | 2100*800*1510 | Electricity/self-friction | Auto |
| SHR-200A | 200 | 150 | 30/42 | 475/950 | 2400*850*1580 | Electricity/self-friction | Auto |
| SHR-300A | 300 | 225 | 40/55 | 475/950 | 2800*1080*1680 | Electricity/self-friction | Auto |
| SHR-500A | 500 | 375 | 47/67 | 430/860 | 3060*1150*1880 | Electricity/self-friction | Auto |
| SHR-800A | 800 | 600 | 83/110 | 370/740 | 3385*1380*2750 | Electricity/self-friction | Auto |
| SHR-1000A | 1000 | 750 | 90/132 | 325/650 | 3460*1140*2900 | Electricity/self-friction | Auto |
| SHR-1300A | 1300 | 975 | 250 | 250/500 | 3600*1420*3100 | Electricity/self-friction | Auto |
Questions plants usually ask
What problem does the PVC Powder Heat Mixer High Speed Mixing Unit address?
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
Can Prowell customize the PVC Powder Heat Mixer High Speed Mixing Unit?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
