Powder Material High Speed Mixing Machine/Special Mixer for Plastic Modification Factory
The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by Prowell Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid. Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing. Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
How this machine is used

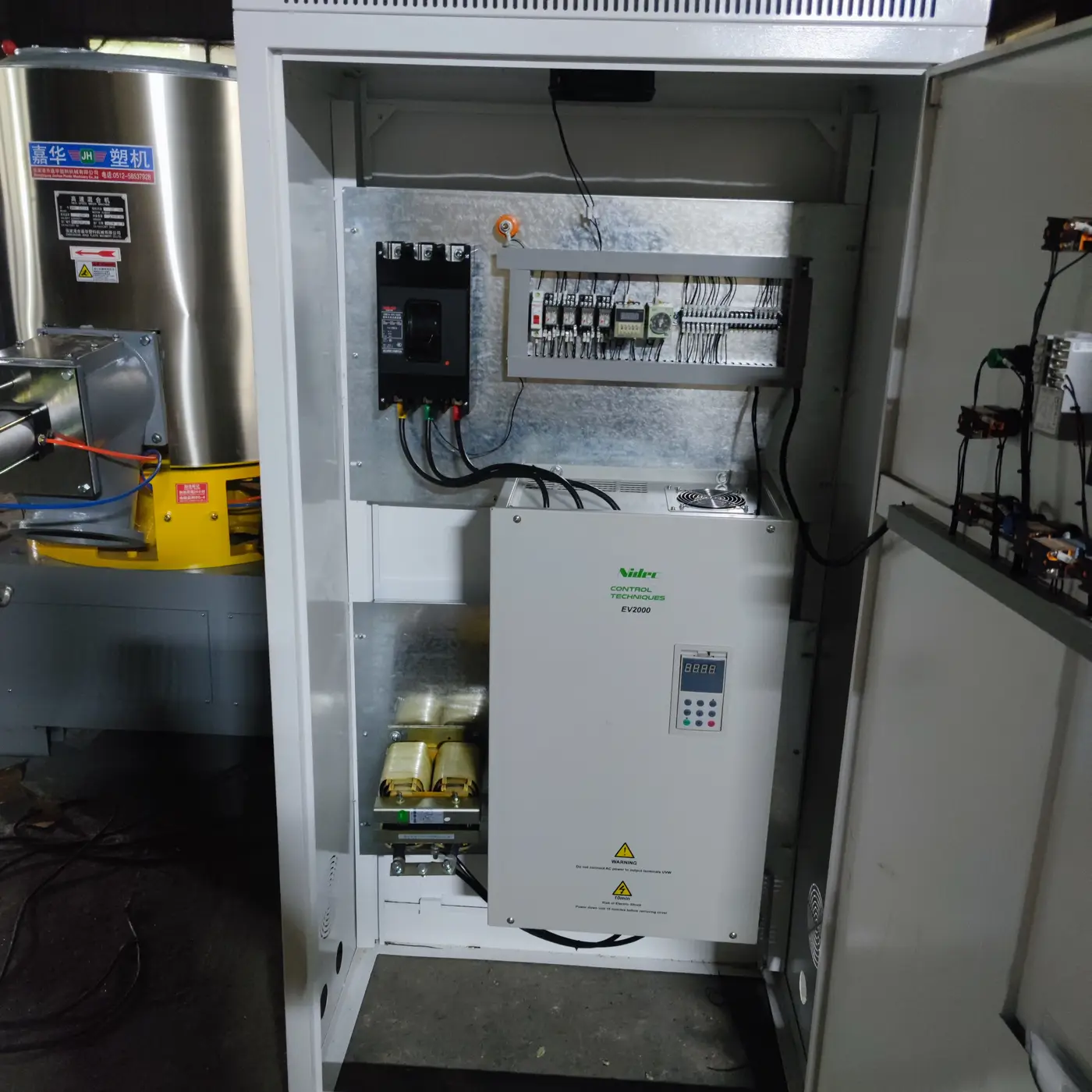

Powder Material High Speed Mixing Machine/Special Mixer for Plastic Modification Factory Heat Mixer Plastic Mixing Machine Speed Control PVC Ceiling Material Frequency Conversion High Speed Mixer Mixing Blade Application of SHR Plastic Hot Heating Mixer For Raw Material Resin Calcium Powder High Speed Mixer: The high-speed and high-efficiency mixer and automatic weighing and oil mixing system manufactured by Prowell Machinery are particularly suitable for efficient and uniform mixing of solid-liquid, solid-powder, powder-powder, and powder-liquid.
Products are widely used in fine chemicals, feed, electronics, food, hard materials, ceramic materials, biology, medicine, non-metallic mining, building materials, coatings, dyes, fertilizers and metal powders for better mixing.
Shear sensitive crystalline powder, batch product mixing, mixing liquid into solid.
The working principle of high speed mixer machine: The motor directly drives the main shaft to rotate through the belt wheel and the reduction box.
Published specifications
| Model | Volume | Effective volume | Motor | Spindle speed | Dimensions | Heating method | Uploading Method |
|---|---|---|---|---|---|---|---|
| SHR-5A | 5 | 3 | 1.1 | 1440 | 620*300*730 | Electricity/self-friction | Manual |
| SHR-10A | 10 | 7 | 3 | 1440 | 1200*300*830 | Electricity/self-friction | Manual |
| SHR-25A | 25 | 20 | 5.5 | 1440 | 1200*350*850 | Electricity/self-friction | Manual |
| SHR-50A | 50 | 35 | 11 | 1500 | 2100*700*1100 | Electricity/self-friction | Manual |
| SHR-100A | 100 | 75 | 22 | 1300 | 2100*800*1510 | Electricity/self-friction | Auto |
| SHR-200A | 200 | 150 | 42 | 950 | 2400*850*1580 | Electricity/self-friction | Auto |
| SHR-300A | 300 | 225 | 55 | 950 | 2800*1080*1680 | Electricity/self-friction | Auto |
| SHR-500A | 500 | 375 | 75 | 860 | 3060*1150*1880 | Electricity/self-friction | Auto |
| SHR-800A | 800 | 600 | 110 | 740 | 3385*1380*2750 | Electricity/self-friction | Auto |
| SHR-1000A | 1000 | 750 | 132 | 650 | 3460*1140*2900 | Electricity/self-friction | Auto |
| SHR-1300A | 1300 | 975 | 250 | 500 | 3600*1420*3100 | Electricity/self-friction | Auto |
Questions plants usually ask
What problem does the Powder Material High Speed Mixing Machine/Special Mixer for Plastic Modification Factory address?
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
Can Prowell customize the Powder Material High Speed Mixing Machine/Special Mixer for Plastic Modification Factory?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
