High Speed PVC Resin Vertical Mixer Machine Manufacturer
Prowell specializes in the production of high-performance PVC Resin Vertical Mixer Machine, with a fully automatic feeding system, which can reduce manual labor and reduce dust, and achieve fully automatic production.
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
How this machine is used

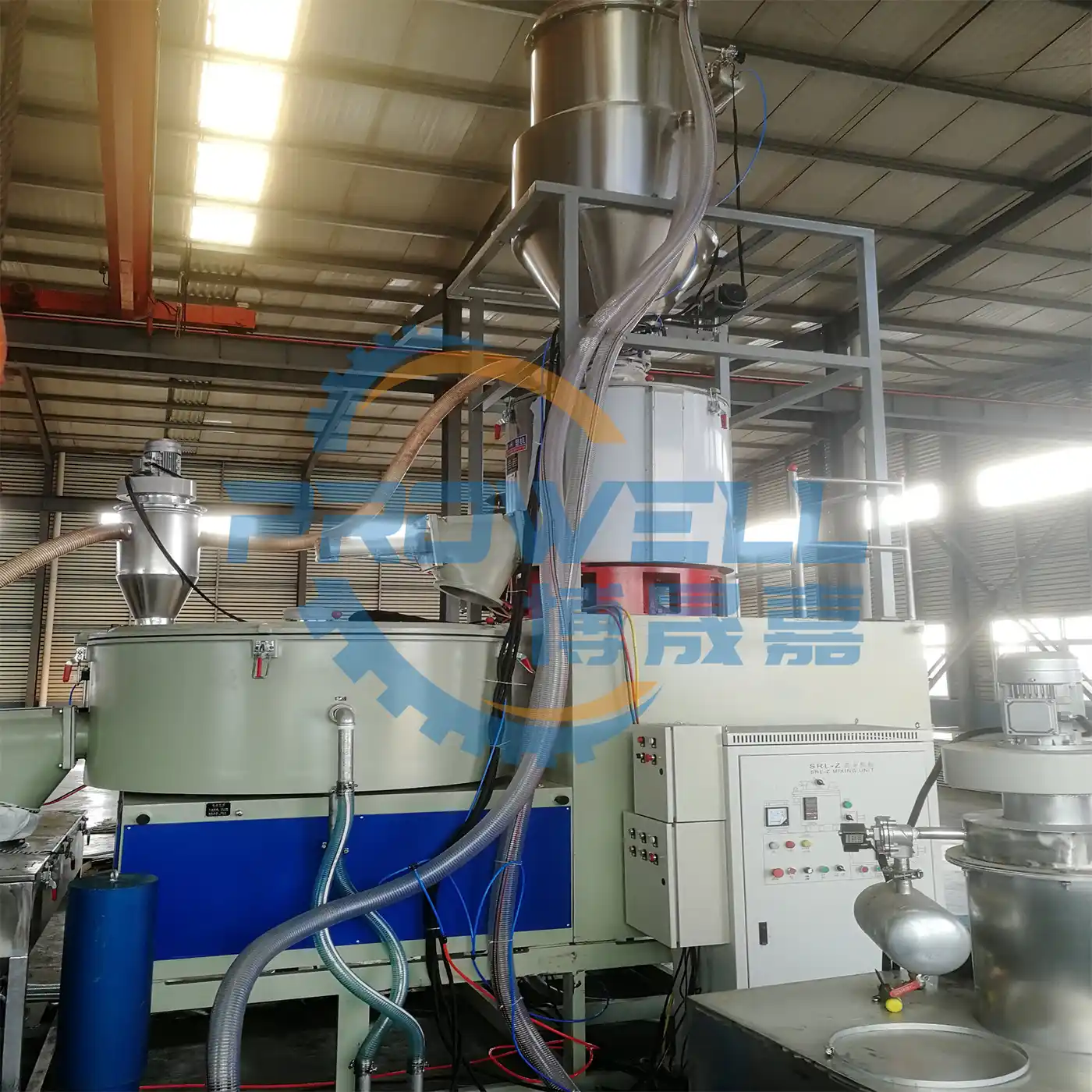

High Speed PVC Resin Vertical Mixer Machine Manufacturer PVC Mixer Machine Customer Cases The high-speed mixers produced by our company are suitable for various industries, including PVC/WPC/SPC extrusion, PVC granulation, plastic modification, etc.
We can configure solutions according to customer requirements, such as providing feeding parts, and we can also provide customers with fully automatic weighing and feeding systems.
Prowell welcomes all major companies to consult and purchase.
We are also looking for agents and distributors.
Published specifications
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
|---|---|---|---|---|---|
| Total volume | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective volume | 75/160 | 150/320 | 225/400 | 375/650 | 600/1050 |
| Output per hour | 150-220KG/H | 400-450KG/H | 500-650KG/H | 800-1100KG/H | 1500KG-1800KG/H |
| Blade rotation speed | 650/130/180 | 475/950/130 | 475/950/60 | 430/860/60 | 370/740/50 |
| Heat-cooling method | Electric/self-friction/water cooling | ||||
| Mixing time | 6-12 | 6-12 | 6-10 | 6-10 | 8-12 |
| Motor power | 22/7.5 | 42/7.5 | 55/11 | 75/11 | 110/30 |
| Blade Material S | Stainless Steel | SUS | SUS | SUS304 | SUS304 |
| Inner Barrel Material Stainless Steel | 5mm | 6mm | 6mm | 8mm | 8mm |
| Model | SRL-W500/1600 | SRL-W800/2000 | SRL-W800/2500 | SRL-W800*2/4000 |
|---|---|---|---|---|
| Total volume | 500/1600 | 800/2000 | 800/2500 | 1600/4000 |
| Effective volume | 330/1000 | 560/1400 | 600/1500 | 1120/2700 |
| Blade rotation speed | 430/860/70 | 330/660/55 | 330/660/60 | 350/700/65 |
| Heating/cooling manner | Self-friction/water cooling | |||
| Mixed time(min) | 8-12 | 8-12 | 8-15 | 8-15 |
Questions plants usually ask
What problem does the High Speed PVC Resin Vertical Mixer Machine Manufacturer address?
Uneven pigment, stabilizer or plasticizer distribution shows up later as color streaks, bubbles and weak weld lines.
Can Prowell customize the High Speed PVC Resin Vertical Mixer Machine Manufacturer?
Yes. The source plant states equipment is 100% customizable — pot volume, impeller, motor and discharge are sized to the recipe.
How do I request a quotation?
WhatsApp or email Jarvis with material, bulk density, kg/batch or kg/hour, and any heating/cooling requirement. Use [email protected] or +86 185 5118 6172.
Are the published models the only sizes?
The tables on this page are the models printed on the original Prowell listing. Other sizes are discussed against your batch weight.
